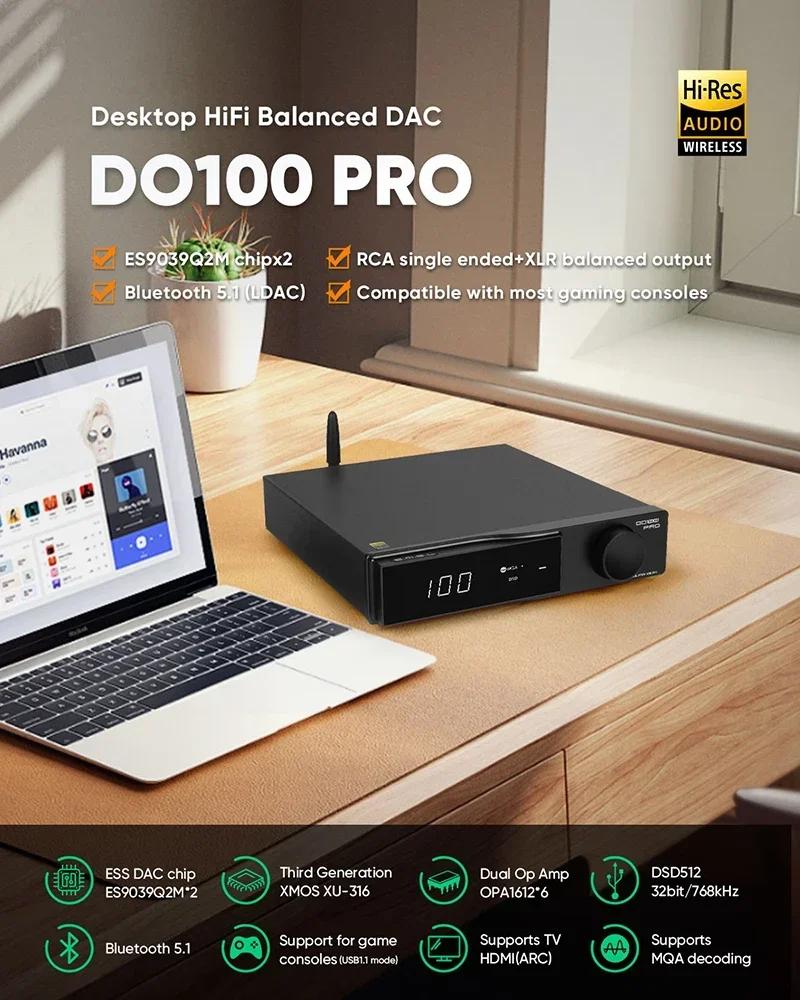

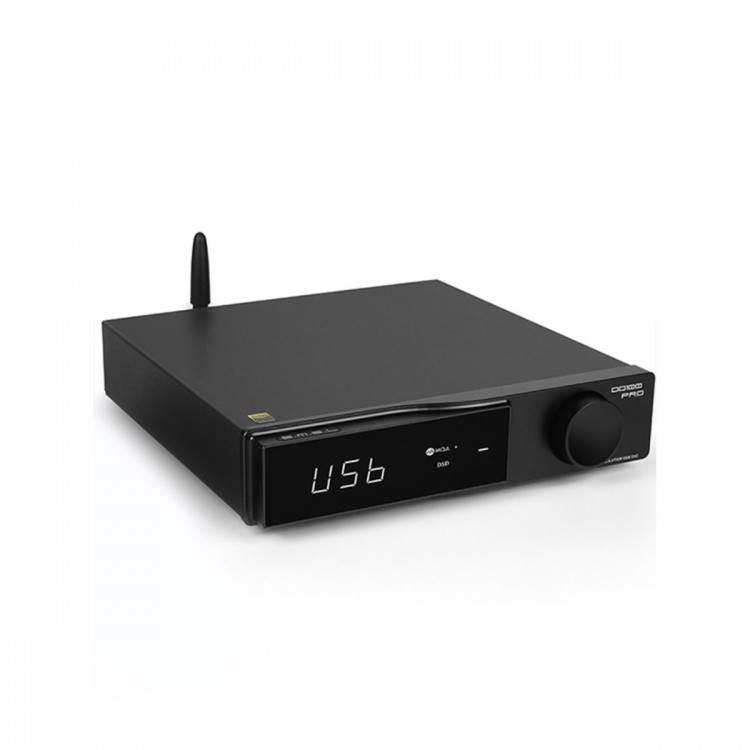

SMSL DO100PRO MQA Audio Decoder DAC Dual ES9039Q2M Bluetooth 5.1 Compatible with Most Game Consoles

SMSL DO100PRO MQA Audio Decoder DAC Dual ES9039Q2M Bluetooth 5.1 Compatible with Most Game Consoles

Configuration:
- ES9038Q2M Dual DAC & OPA1612
- USB XMOS Interface
- Low noise linear power supply
- Equipped with a QCC5125 Bluetooth 5.0 receiver chip for Qualcomm

Features:
- ES9038Q2M Dual DAC & OPA1612: At the heart of the digital/analog conversion stage are two DAC ES9038Q2M chips from ESS, a model renowned for its ability to provide a very transparent sound reproduction. To these, the DO100 associates audiophile components with for example four double OPA1612 AOP.
- USB XMOS Interface: Behind the USB-C input of the DO100, a second generation XMOS interface allows it to decode the audio stream efficiently from this input. It also offers the possibility to enjoy high definition audio files, up to PCM 32bit 768kHz and DSD512.

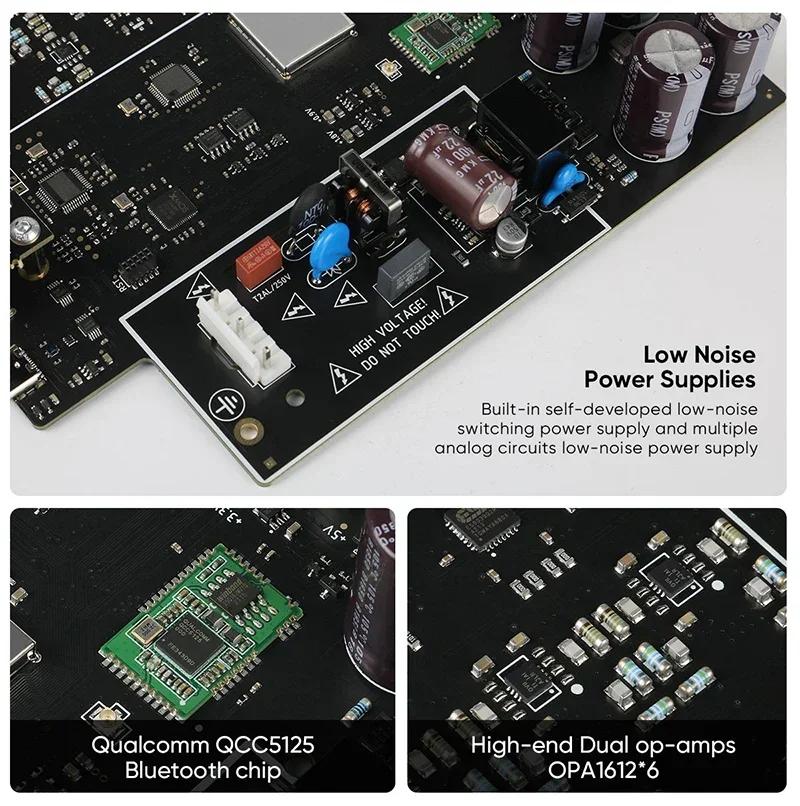

- Low noise linear power supply: The DO100's power supply stage, which is responsible for providing a clean and stable electrical signal to the audio circuits, uses a linear power supply with many discrete components and low-noise PSUs for the analog circuits.

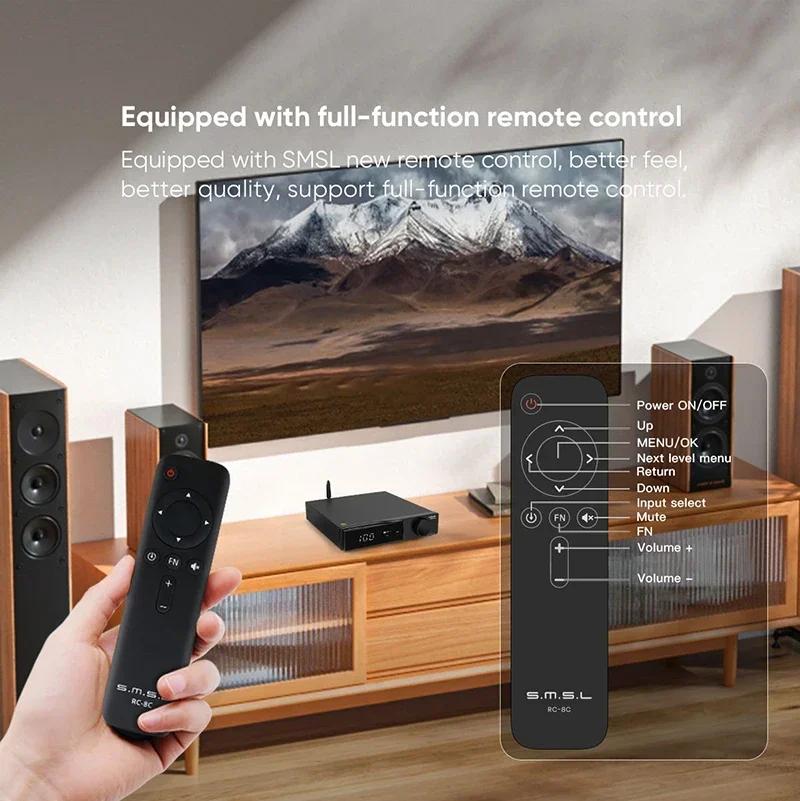

- Bluetooth 5.0: Equipped with a Qualcomm QCC5125 Bluetooth 5.0 receiver chip, the DO100 offers the possibility of remote control, as playback can be started and managed directly from your smartphone. In addition, it supports the high-definition codecs for aptX, aptX-HD and LDAC for high-quality wireless sound reproduction.

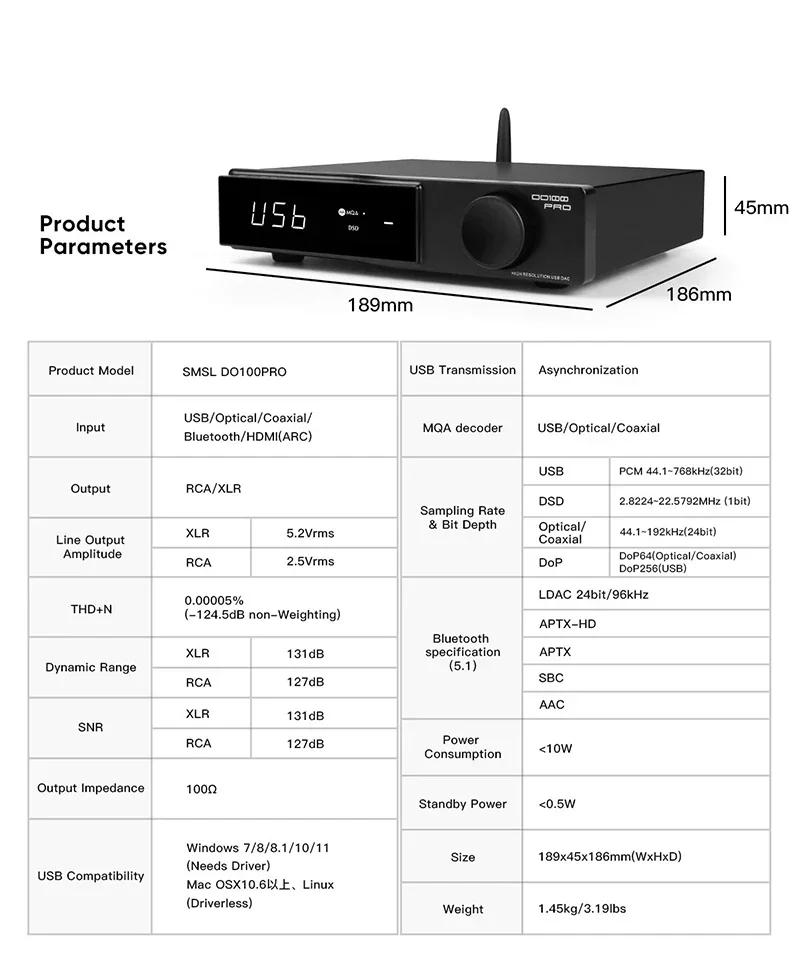

Specification:
- Model: SMSL DO100PRO

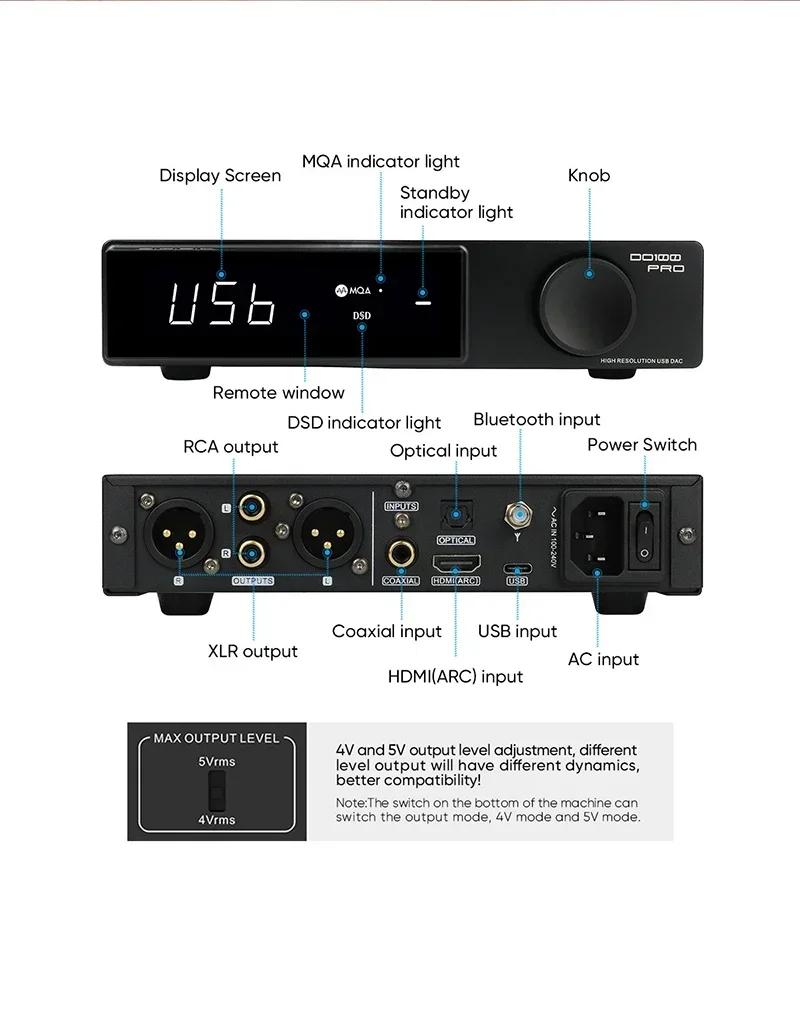

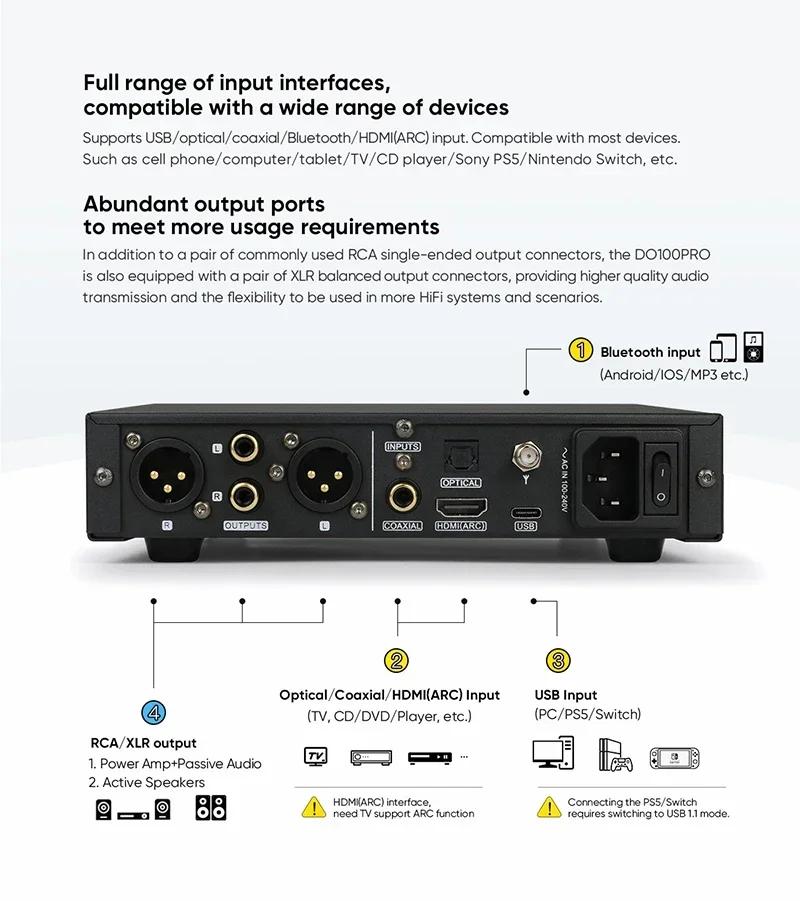

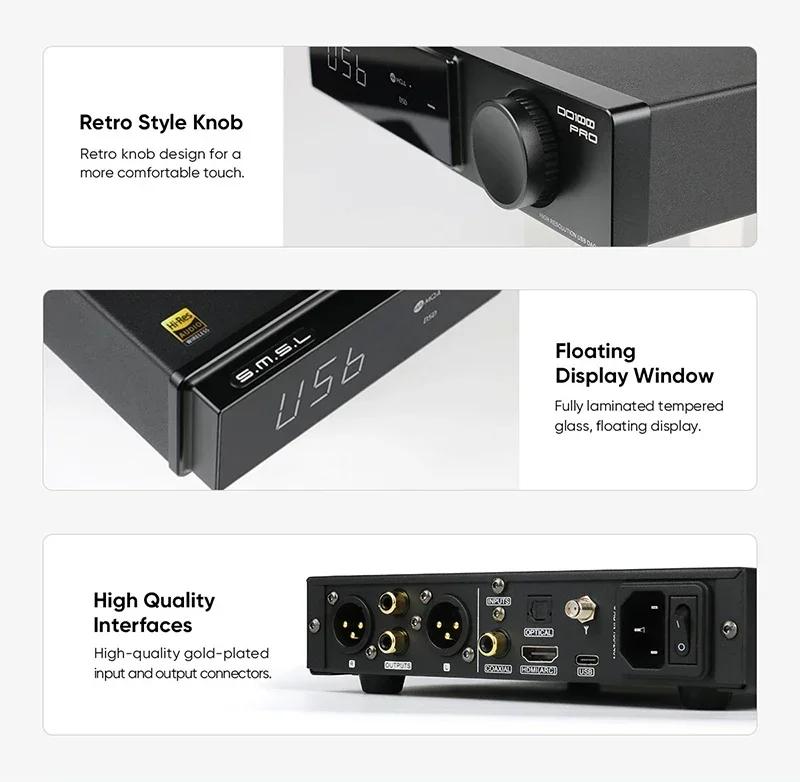

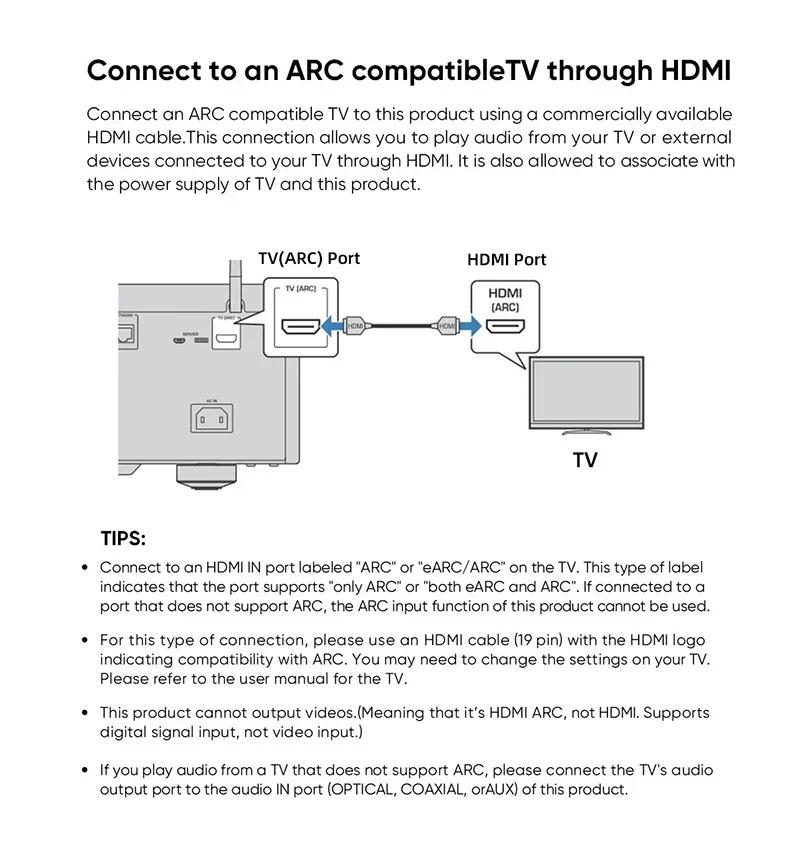

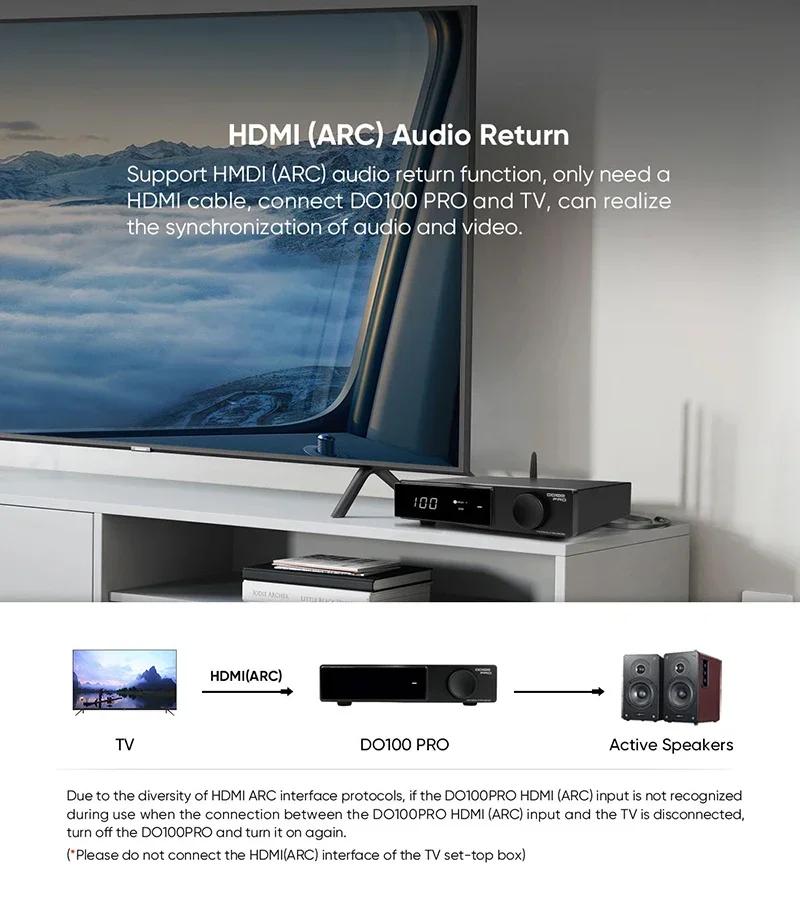

- Input method: USB/optical fiber/coaxial/Bluetooth/HDMI-compatible (ARC)
- Output method: single-ended circuit/balanced circuit
- Circuit output amplitude:
  XLR: 5.2Vrms
  RCA: 2.5Vrms

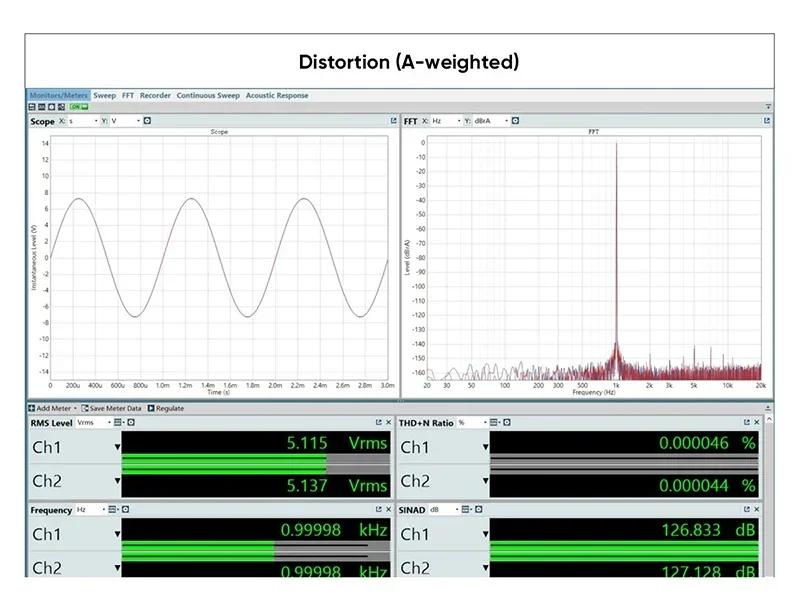

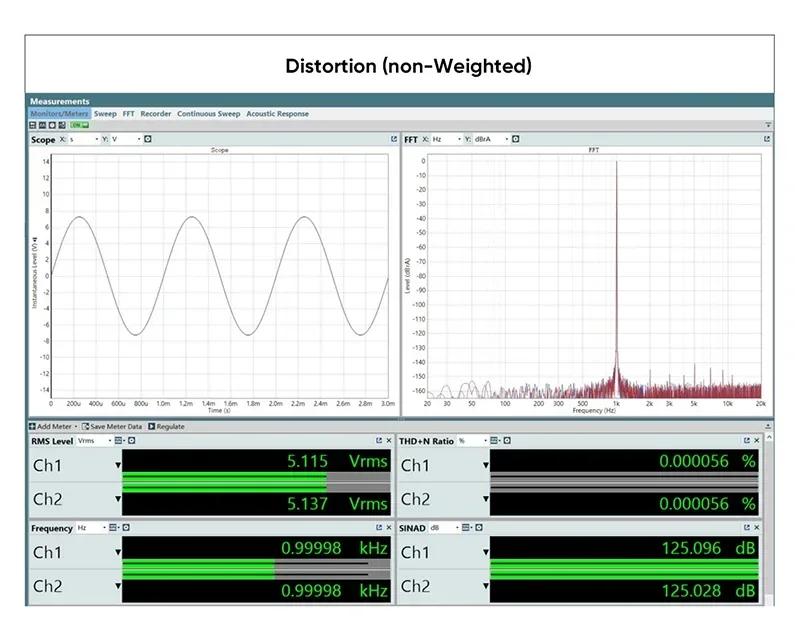

- THD+N: 0.00005% (-124.5dB non A-weighted)

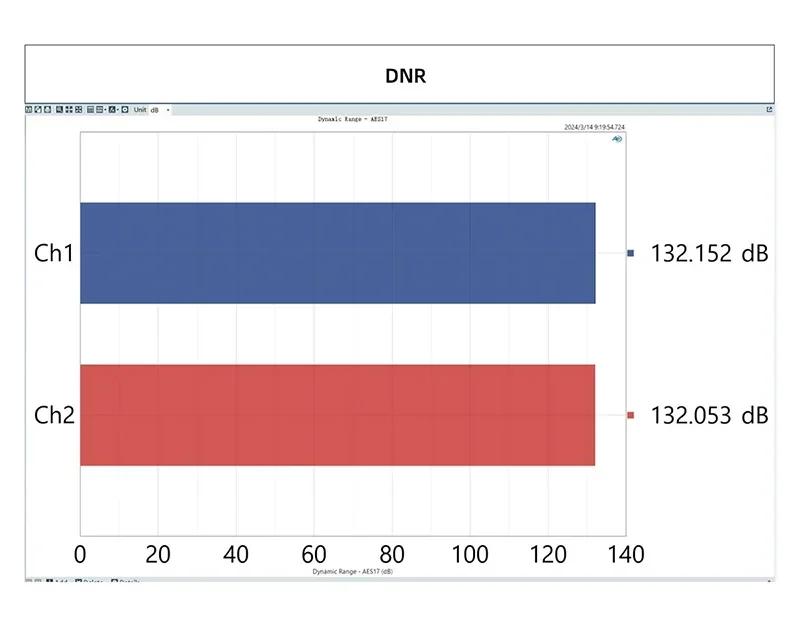

- Dynamic range:
  XLR: 131dB
  RCA: 127dB

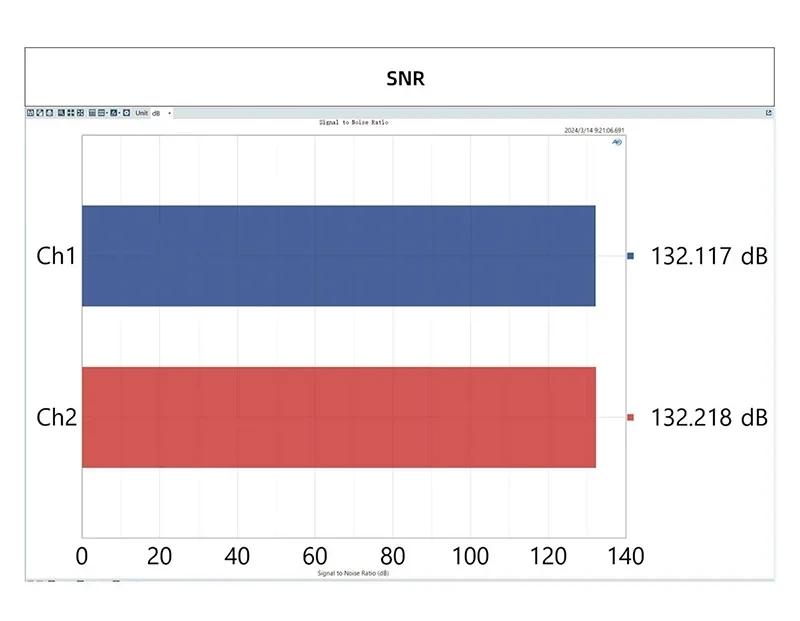

- SNR:
  XLR: 131dB
  RCA: 127dB
- Output impedance: 100ohms
- USB compatibility: for Windows 7/8/8.1/10/11 (need driver), Mac OSX10.6 above, Linux (driverless)
- USB transmission method: asynchronous transmission
- MQA: USB/optical fiber/coaxial
- Sampling rate and bit depth:
  USB: PCM44.1 - 768kHz (32bit)
  DSD: 2.8224 - 22.5792MHz (1bit)
  Optical fiber/coaxial: 44.1 - 192kHz (24bit)
  DoP: DoP64 (optical fiber/coaxial), DoP256 (USB)

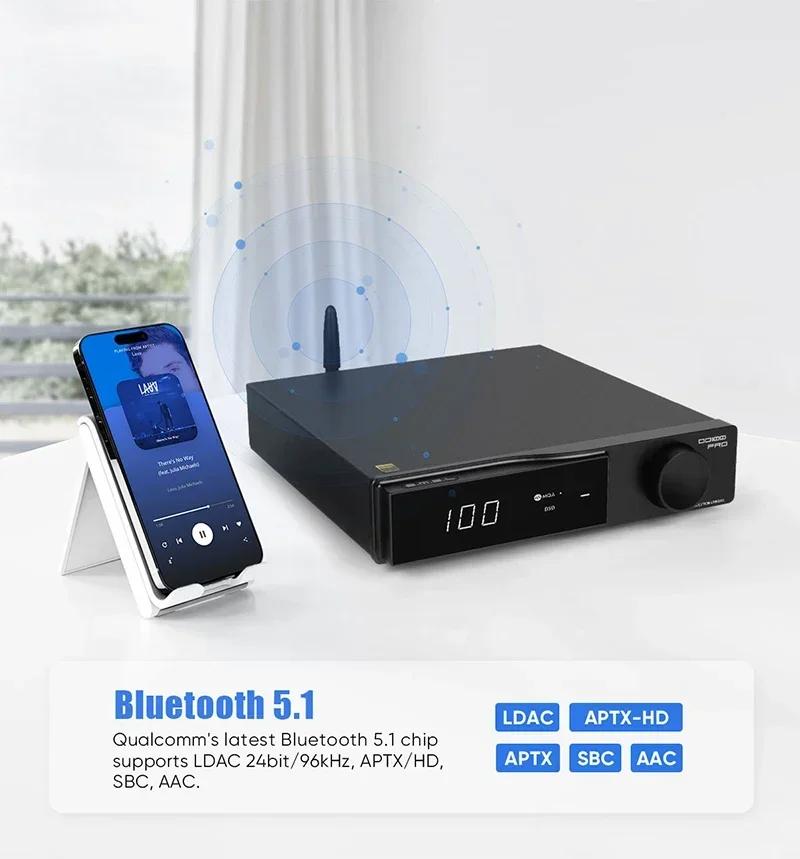

- Bluetooth specification (5.1): for LDAC 24bit/96kHz, APTX-HD, APTX, SBC, AAC
- Power consumption: < 10W
- Standby power consumption: < 0.5W
- Product size: 189 x 45 x 186mm (W x H x D)
- Net weight: 1.45kg/3.19lbs

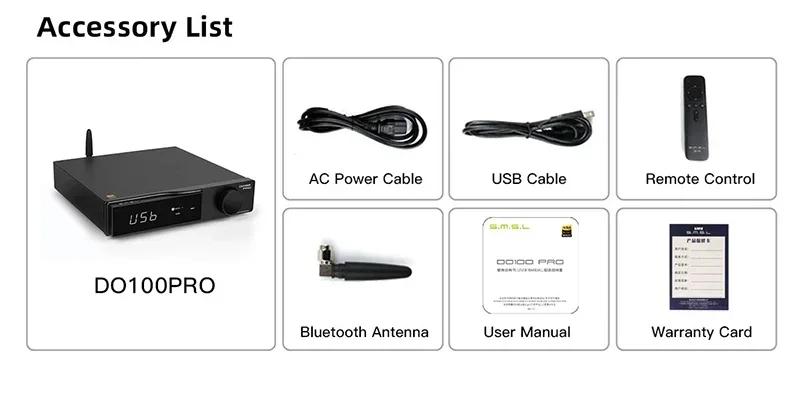

Package Included:
- 1 x Audio Decoder
