| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $353.44 | $346.22 | $335.40 | $320.98 | Contact US |

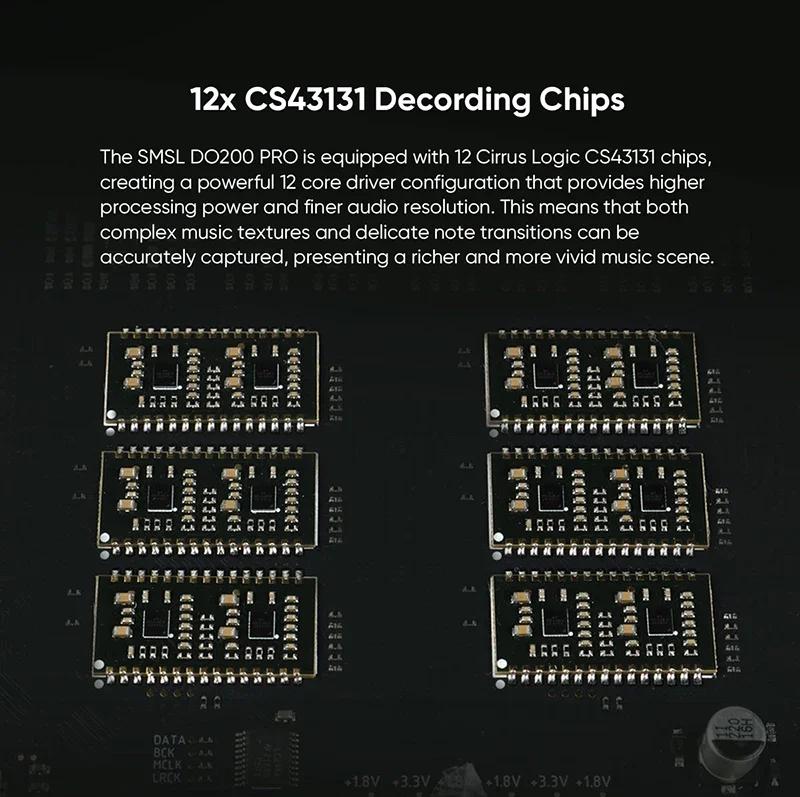

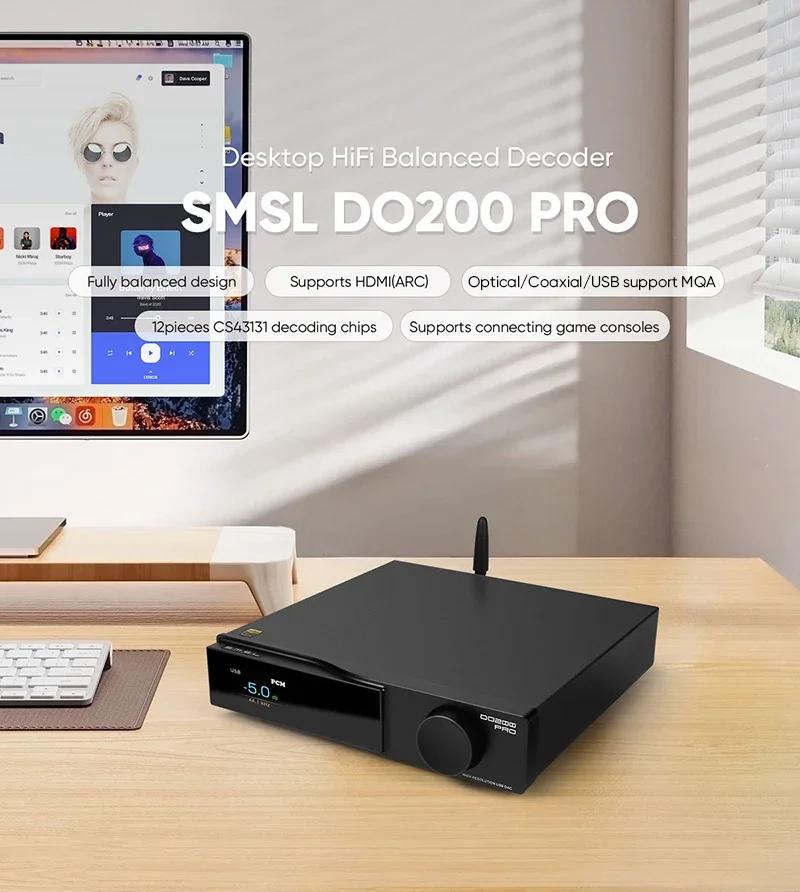

SMSL DO200PRO 12pcs CS43131 Fully Balanced Audio Decoder HDMI-compatible DAC Bluetooth 5.1 Wireless Transmission

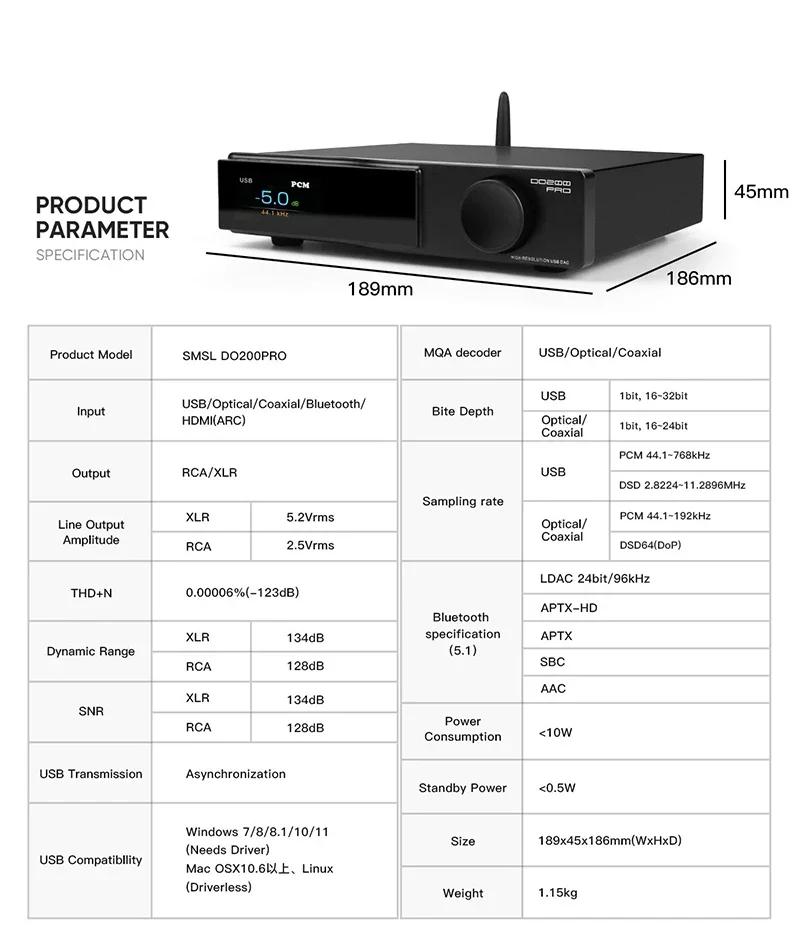

Specification:
- Model: SMSL DO200PRO

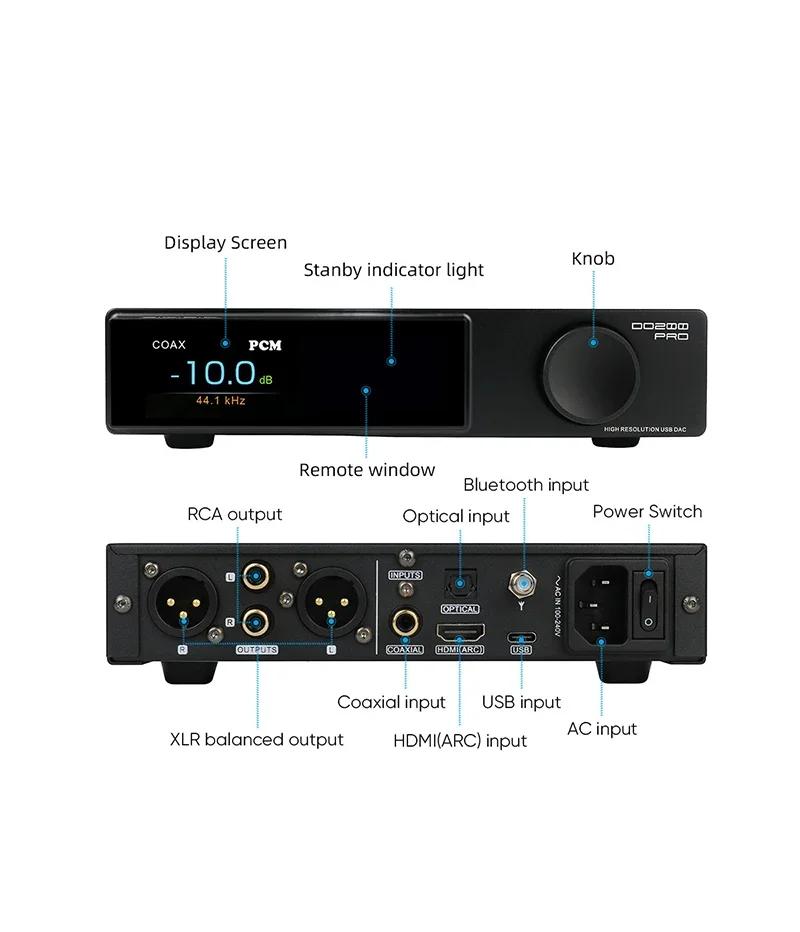

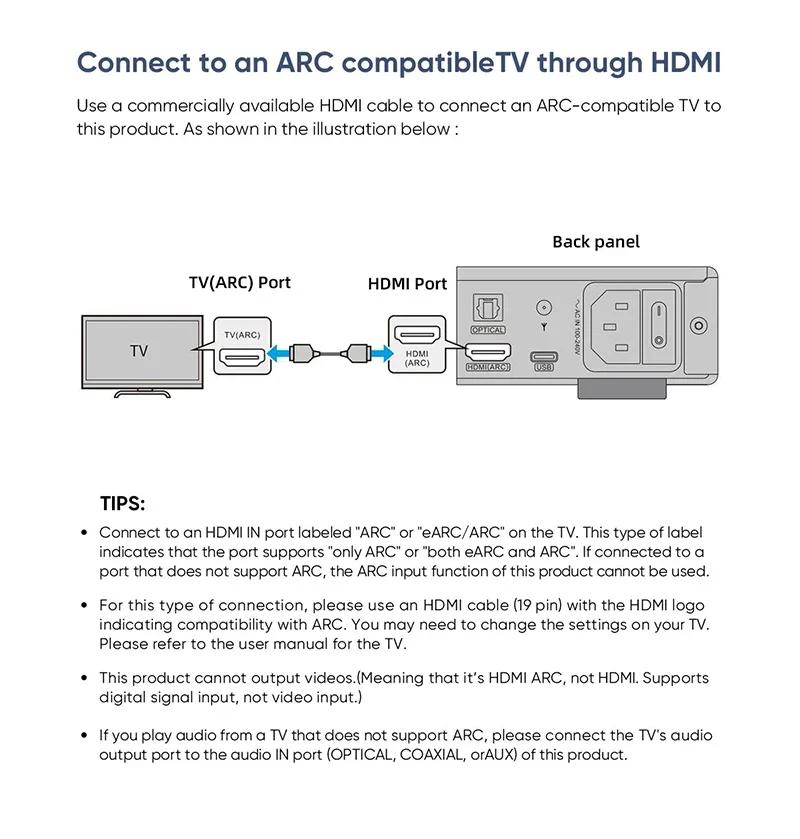

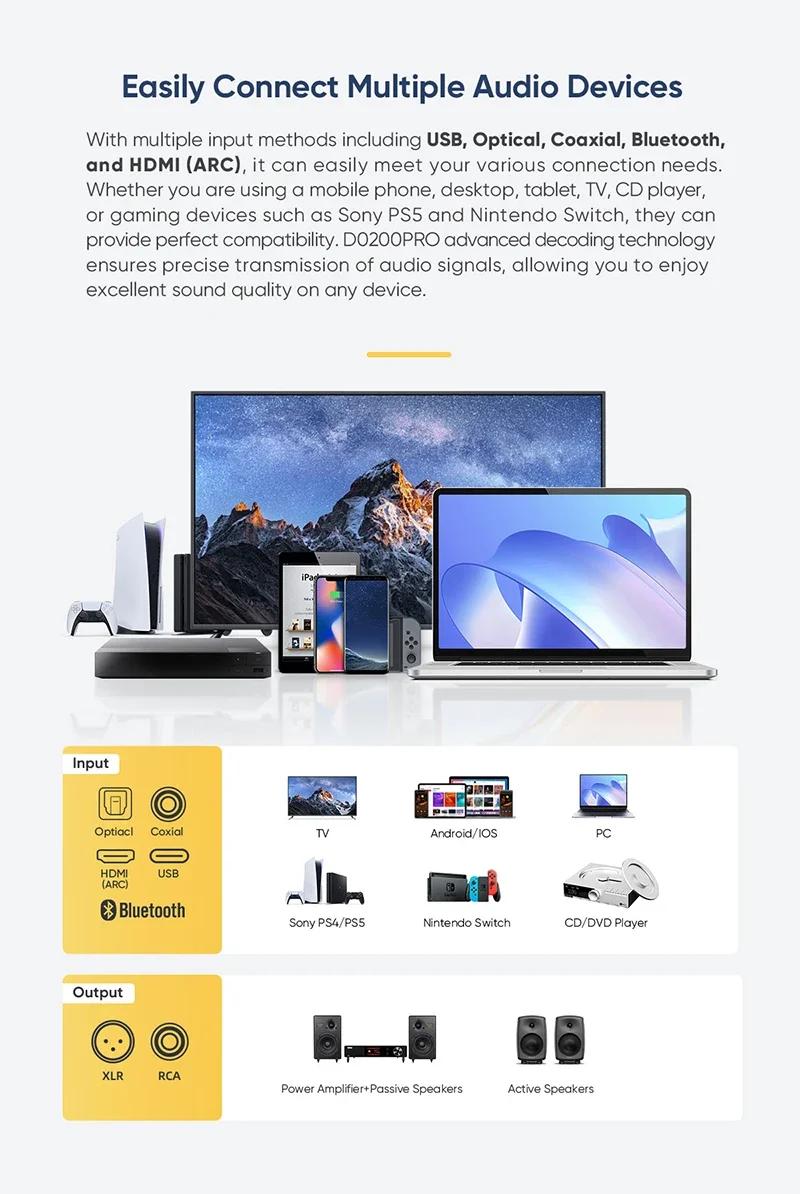

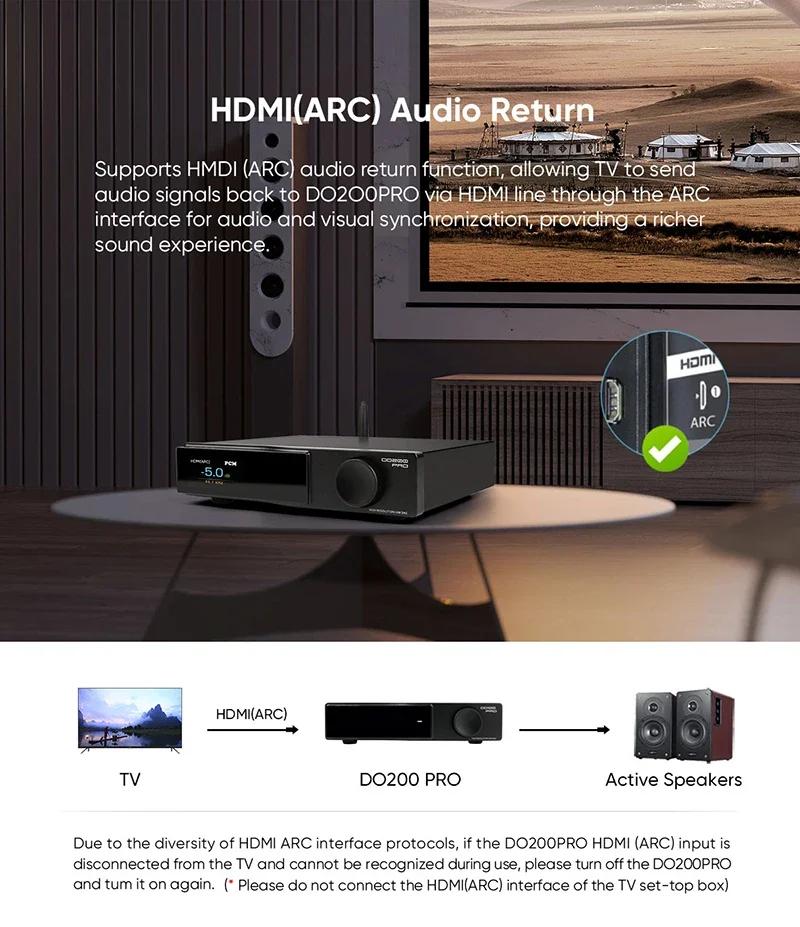

- Input method: USB/optical fiber/coaxial/Bluetooth/HDMI-compatible (ARC)
- Output method: single-ended circuit/balanced circuit
- Circuit output amplitude:

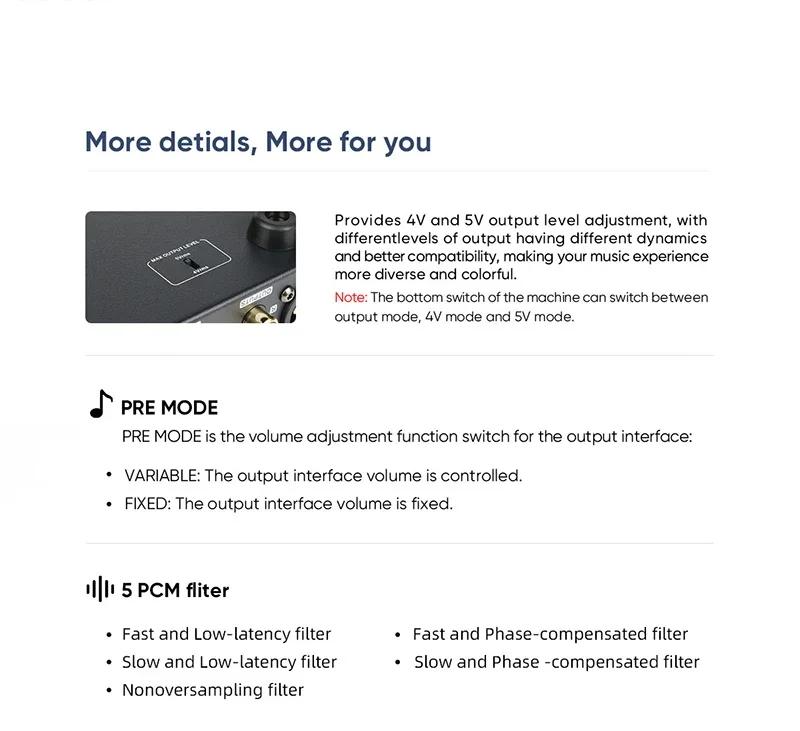

XLR: 5.2Vrms
RCA: 2.5Vrms

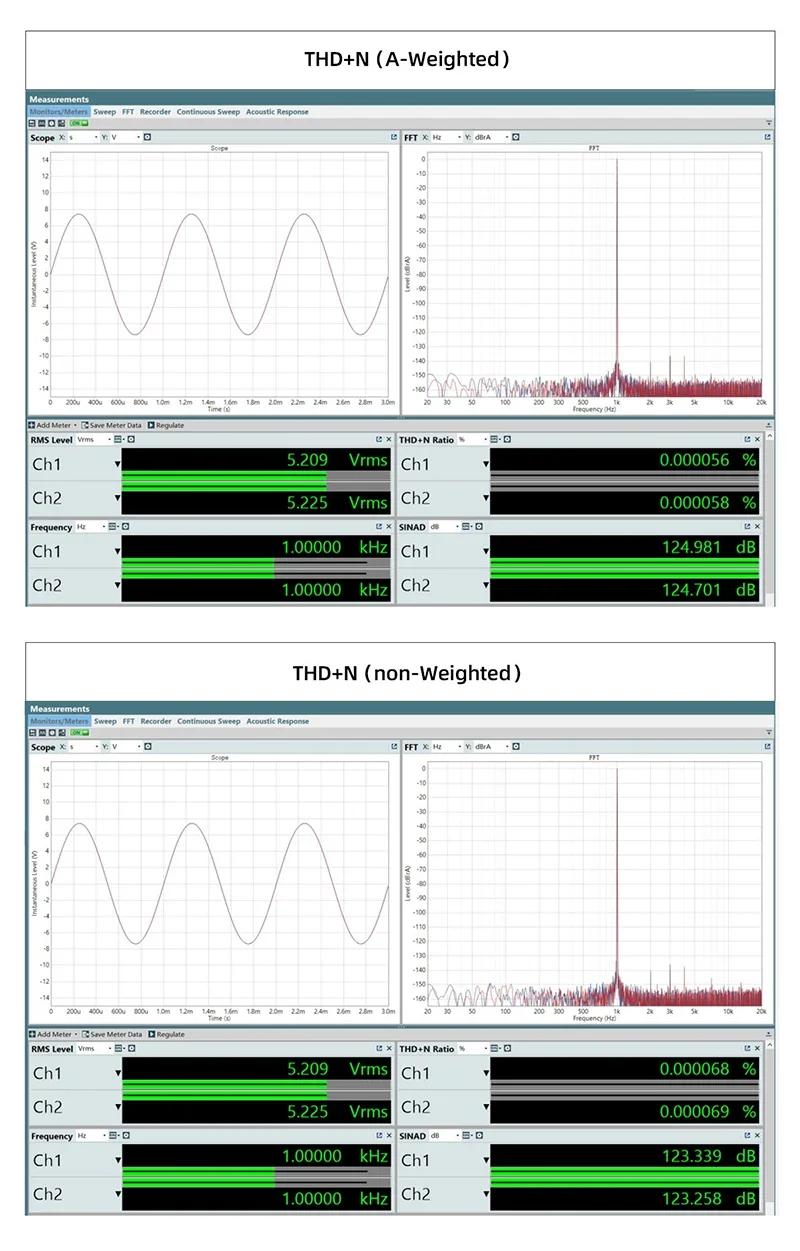

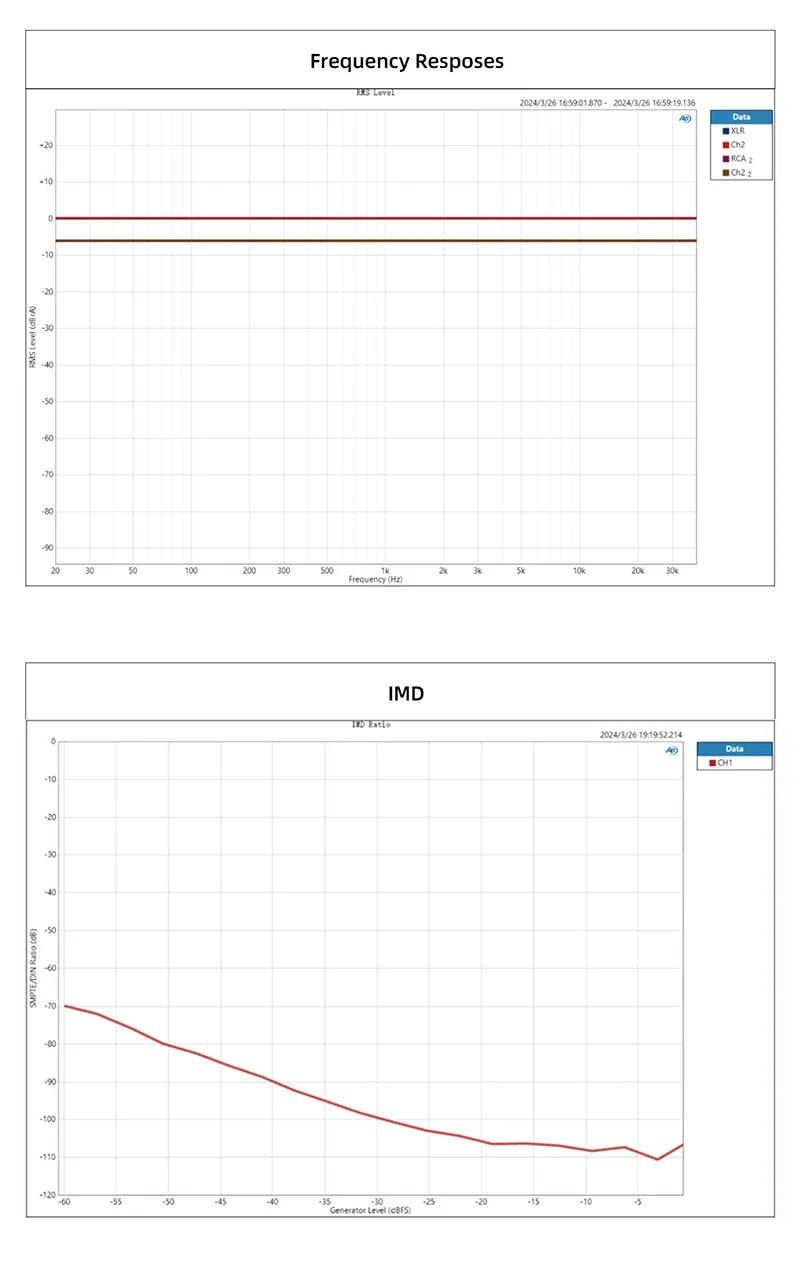

- THD+N: 0.00006% (-123dB)
- Dynamic range:
XLR: 134dB
RCA: 128dB

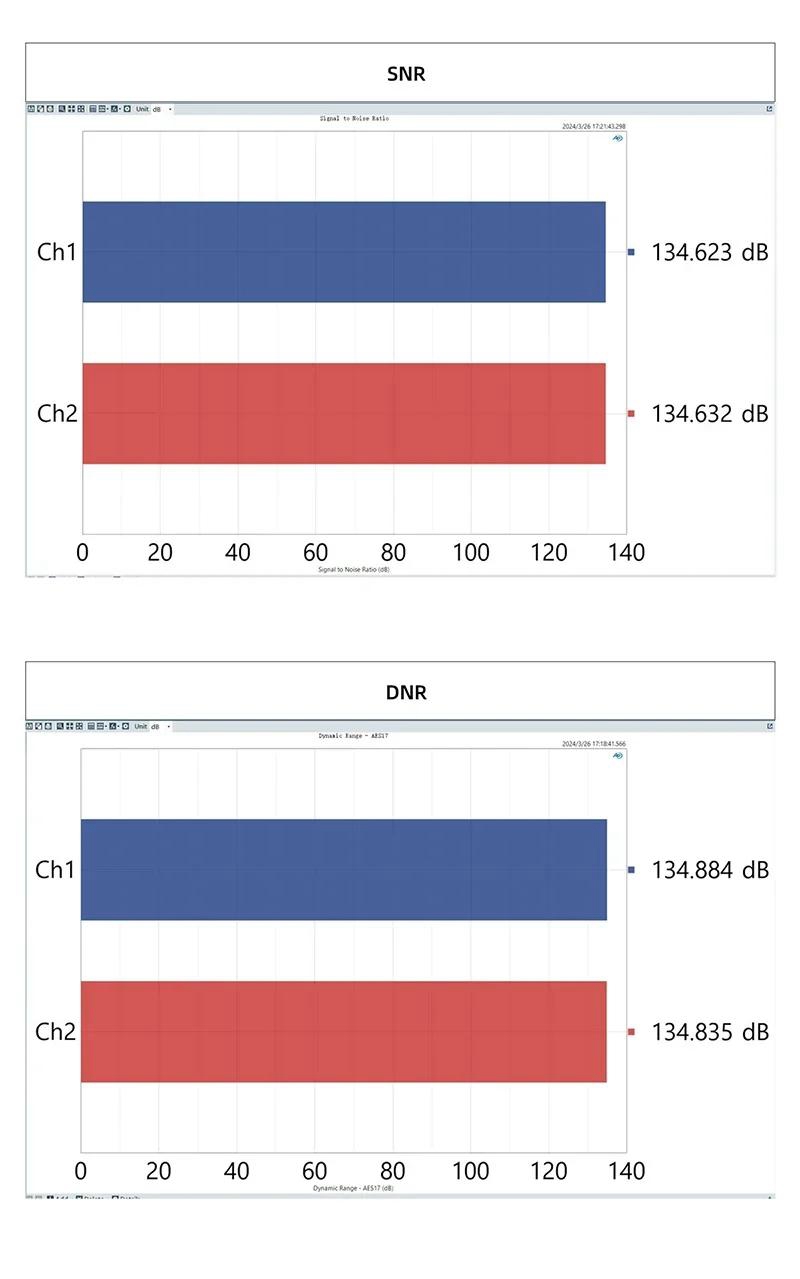

- SNR:
XLR: 134dB
RCA: 128dB
- USB compatibility: for Windows 7/8/8.1/10/11 (need driver), Mac OSX10.6 above, Linux (driverless)
- USB transmission method: asynchronous transmission
- MQA: USB/optical fiber/coaxial
- Sampling rate:
USB: PCM44.1-768kHz, DSD 2.8224-11.2896MHz
Optical fiber/coaxial: PCM44.1-192kHz, DSD64 (DoP)
- Bit depth:
USB: 1bit, 16-32bit
Optical fiber/coaxial: 1bit, 16-24bit
- Bluetooth specification (5.1): for LDAC 24bit/96kHz, APTX-HD, APTX, SBC, AAC
- Power consumption: < 10W
- Standby power consumption: < 0.5W
- Product size: 189 x 45 x 186mm (W x H x D)
- Net weight: 1.15kg

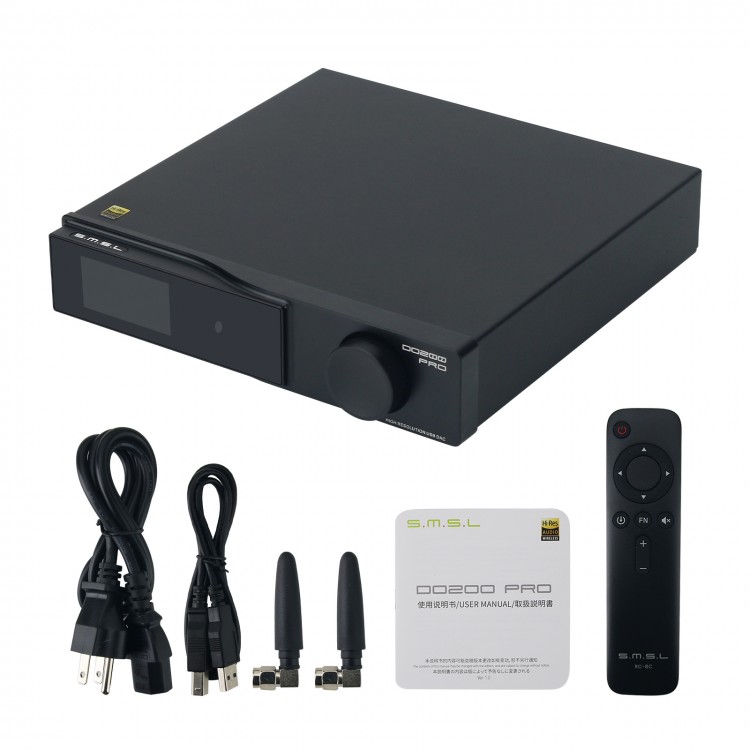

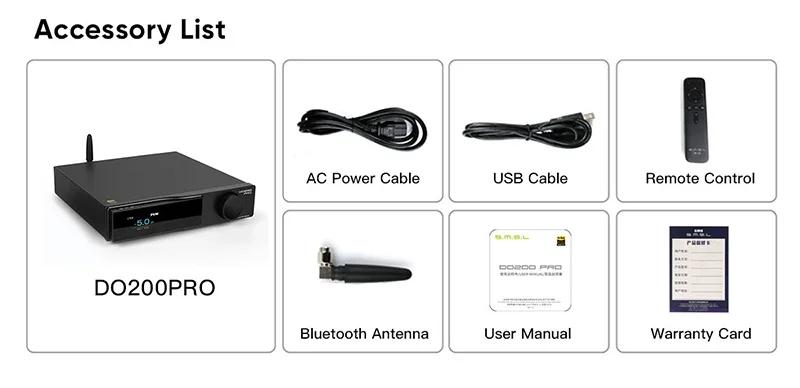

Package Included:
- 1 x Audio Decoder
