SMSL DP5 USB DAC Bluetooth Network Player DSD Decoder Digital Player Audio DAC Headphone Amplifier

SMSL DP5 USB DAC Bluetooth Network Player DSD Decoder Digital Player Audio DAC Headphone Amplifier

Features:
- High-fidelity network music player.
- A lossless player with headphone amplifier output. Built-in one ES9038PRO chip, high signal-to-noise ratio, low distortion, support hard decoding DSD.
- Support streaming media playing, for DLNA and AirPlay. And supports 100M network interface and 2.4G/5G WIFI.
- Full-featured playing. Supported formats include APE, WAV, WMA, FLAC, DSF, DFF, AIFF, M4A, AAC, OGG, MP2, MP3.
- Wireless, wired NAS, U disk, mobile hard disk, PC, mobile phone USB connection, Bluetooth, for DLNA, QQ music, Kugou music, NetEase cloud music, easy connection! Can be connected to computers, mobile phones, U disk, hard disk, SD card , NAS, etc. The output terminal can be connected to headphones, audio decoders, active speakers, headphone amplifiers, etc.
- With analog, USB, I2S, AES, coaxial, optical signal output.
- Support for MQA full decoding. The working principle for MQA: 1. Clean up the recording. When analog sound is converted to digital signal, time "blur" occurs, which blurs the transient signal over time. As a result, our ears cannot tell where a single sound comes from, and recorded music is insipid compared to "live performance". It can eliminate this distortion and create a truly accurate 3D sound field, which is different from any sound you have ever heard. 2. Encapsulate the sound. Once the ambiguity in the recording is eliminated, it uses a process we call "music origami" to cleverly make this large high-resolution file easy to manage and compatible with any service or playing device. On ordinary players, the playing effect for MQA is better than CD. Using the decoder for MQA, you can present complete and rich sound quality in the studio.
- Support USB to connect external hard disk, up to 4TB capacity, and support NTFS/FAT32 format.
- Multiple control methods: The knob buttons on the panel and the remote control can all realize full-function control of DP5.
- Support for Hiby link. You can use player for Hiby to control the functions of this device.

Specifications:

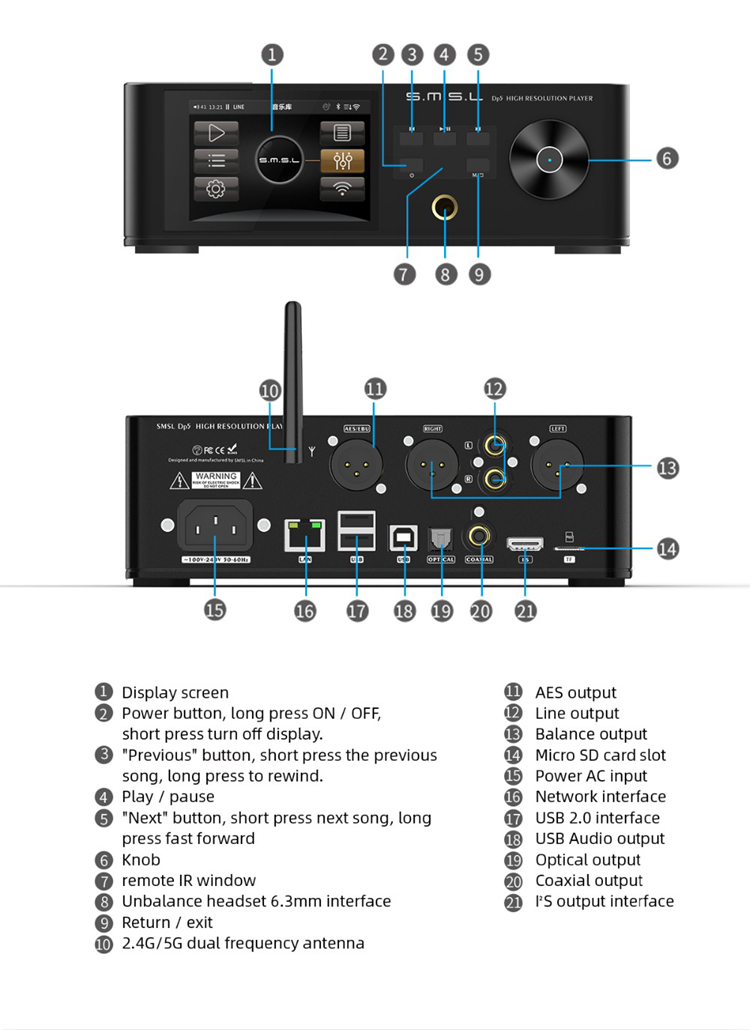

- Input method: USB (U disk) x 2, USB Audio, micro-SD card, Bluetooth, for DLNA, for SAMBA(NAS)
- Output mode: line, balance, earphone, optical fiber, coaxial, AES, Bluetooth, USB, I2S
- THD+N: 0.00015%
- Dynamic range: 130dB (A weighting)
- Signal to noise ratio: 130dB (A weighting)
- Amplifier output power: 89mW (32Ω); 64mW (64Ω); 27mW (150Ω); 14mW (300Ω)
- Unbalanced line output level: 2.1Vrms
- Balanced line output level: 5.2Vrms
- USB Audio: DSD supports up to DSD256. PCM supports up to PCM384kHz
- USB Audio system compatibility: for Windows 7/8/8.1/10; for Mac OSX; for Linux
- DSD D2P: Supports up to DSD128

Package Included:
- 1 x Set of Decoder Headphone Amplifier

Note:
- It is assembled and ready to use.
- U disk, micro-SD card and other items mentioned are not included, for demonstration purposes only. Thank you for your understanding!
