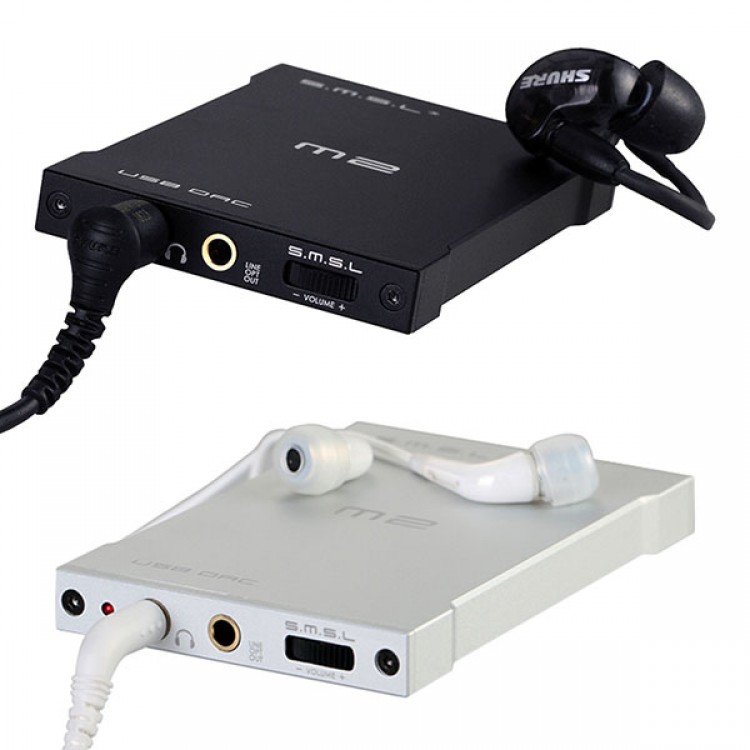

SMSL M2 Portable Headphone Amplifier External DAC Decoder Sound Card
Description:
S.M.S.L 2014 NEW DESIGN
M2--MINI computer USB decoder (External sound card).
M2-- Uses asynchronous audio transmission technology .
M22--Supports ASIO, WASAPI drive.
M22--Also have the line output, optical signal output and Headset amplifying output.
M22--Using purified computer power supply directly, very convenient to use.
M22--Ultra small size easy to carry.
M22--You enhance the computer sound choice.
Specific:
The performance index
Sample rate: 32~96KHz (including 88.2KHz)
Width: 16~24Bit
USB transmission specifications: USB2.0, asynchronous audio transmission
THD+N:DAC <0.003% amp <0.005%
Frequency response: 10Hz~48KHz
Impedance adaptation: 8 ω ~600
The maximum output power: 130mW + 130mW / 32.
Dynamic range: 110dB (24Bit)
Signal to noise ratio: DAC>105dB amp >100dB
The output amplitude: 2Vrms
Power consumption: <0.5W
Size: 87 X 58.5 X 9.6mm
The USB receiver chip: SA9027
DAC decoder chip: ES9023
Headset amplifier chip: MAX9722
Warranty period: 1 years
Box included:
1 X SMSL M2 DAC
1X USB Cable
1X Manual
1X Warranty Card
NOTE: Earphones are NOT INCLUDED
