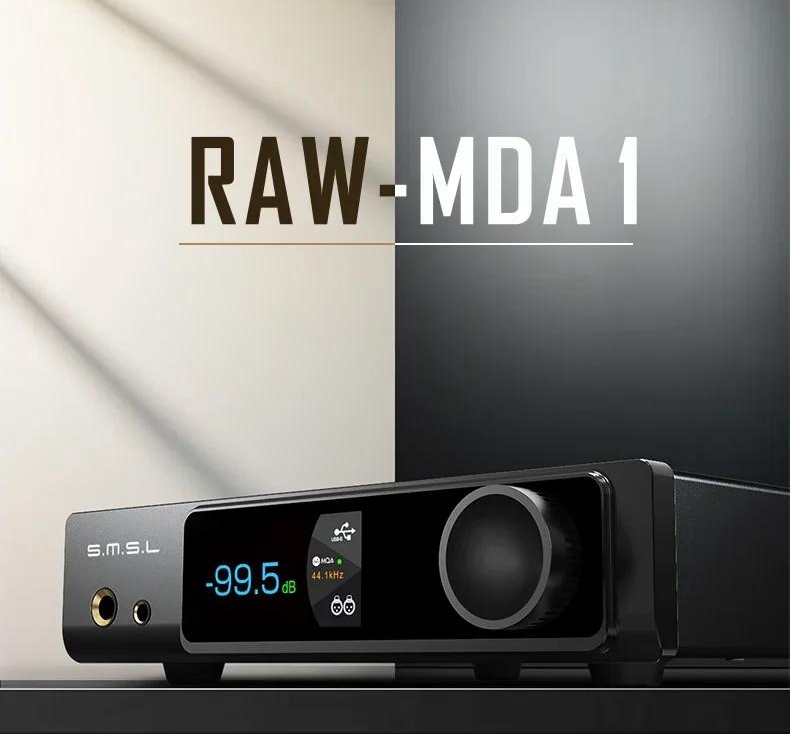

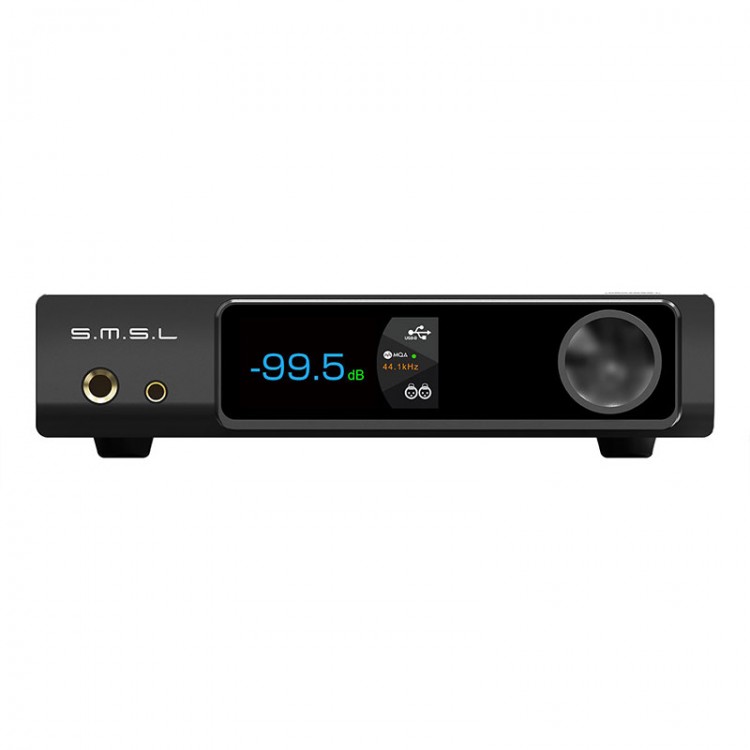

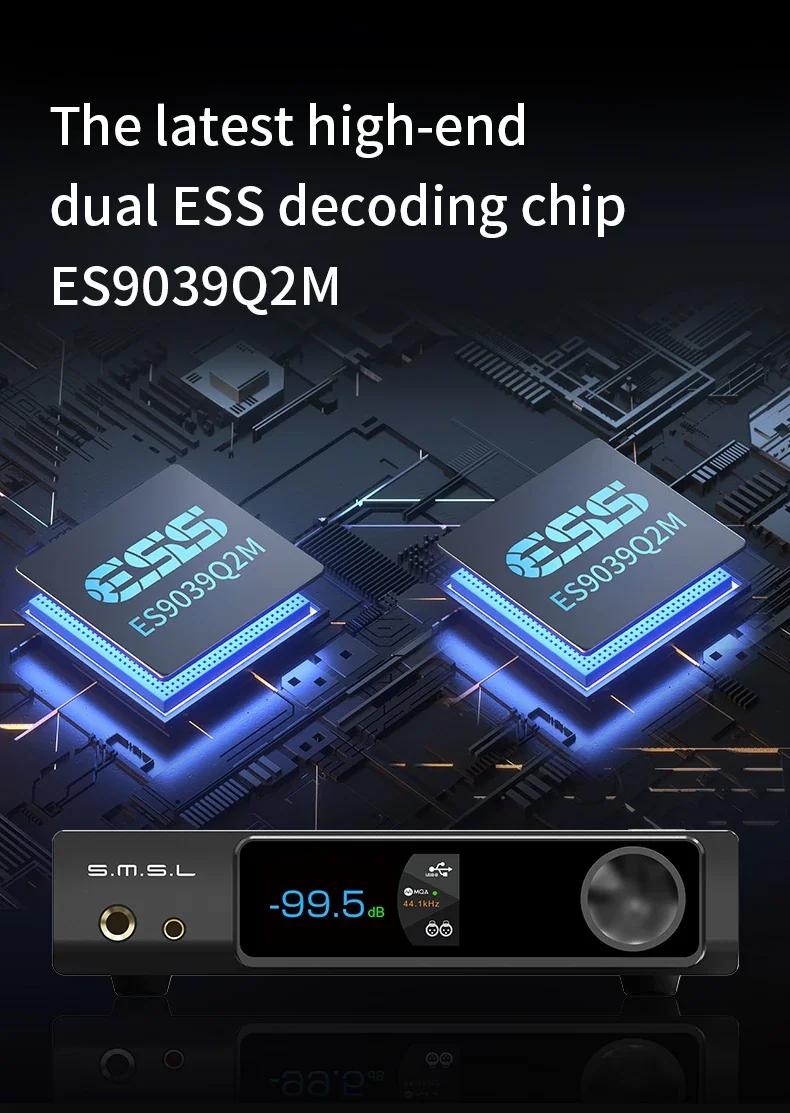

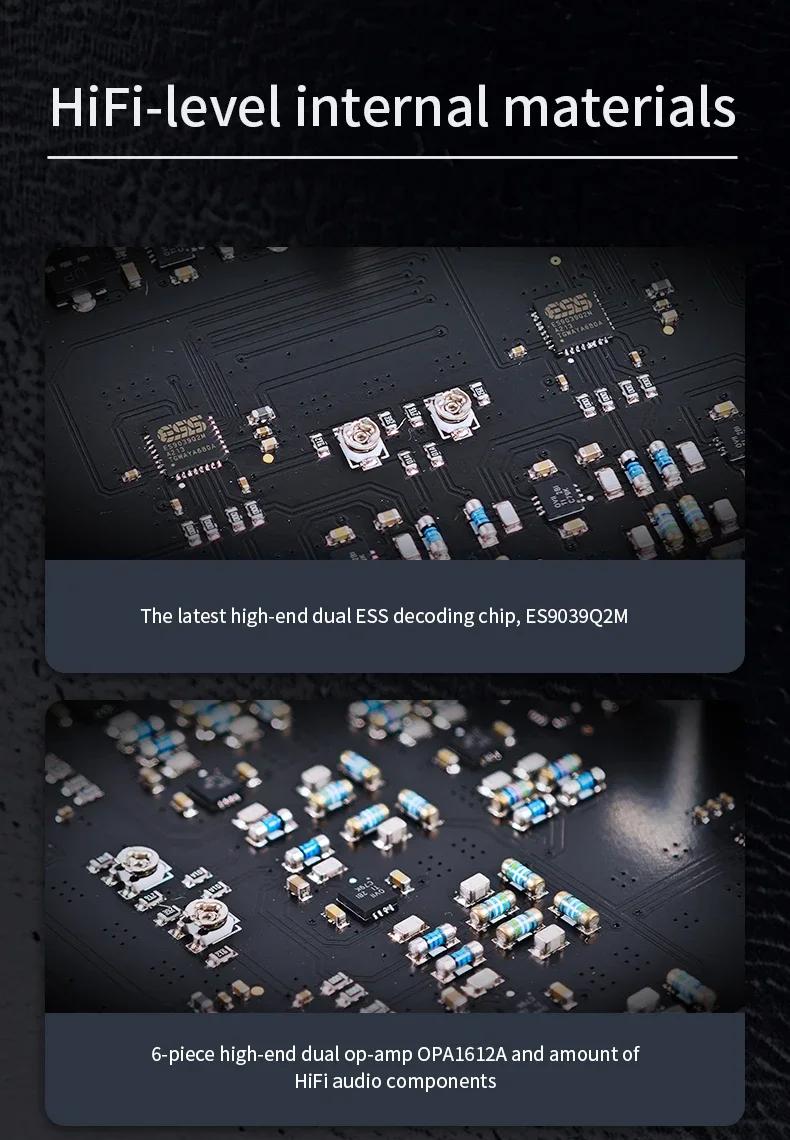

SMSL RAW-MDA1 ES9039Q2Mx2 Audio Decoder Bluetooth5.1 for XMOS MQA DAC Headphone Amplifier OPA1612Ax6

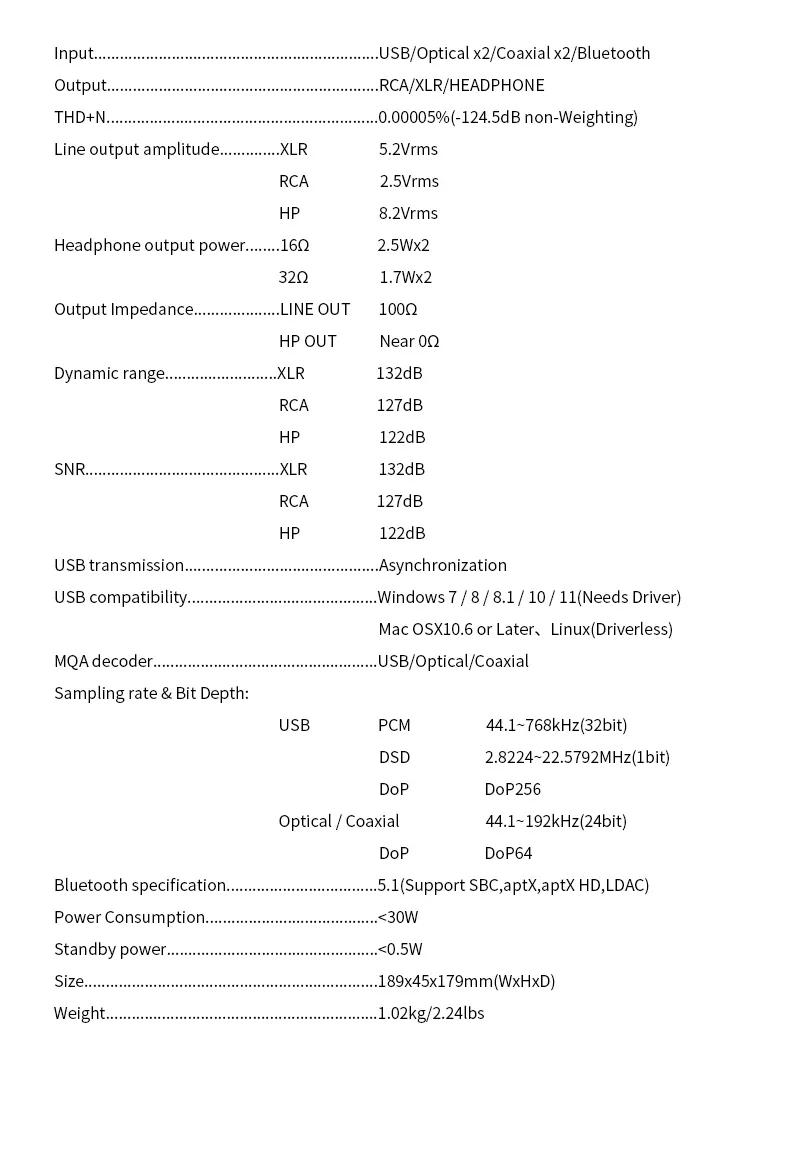

Specification:

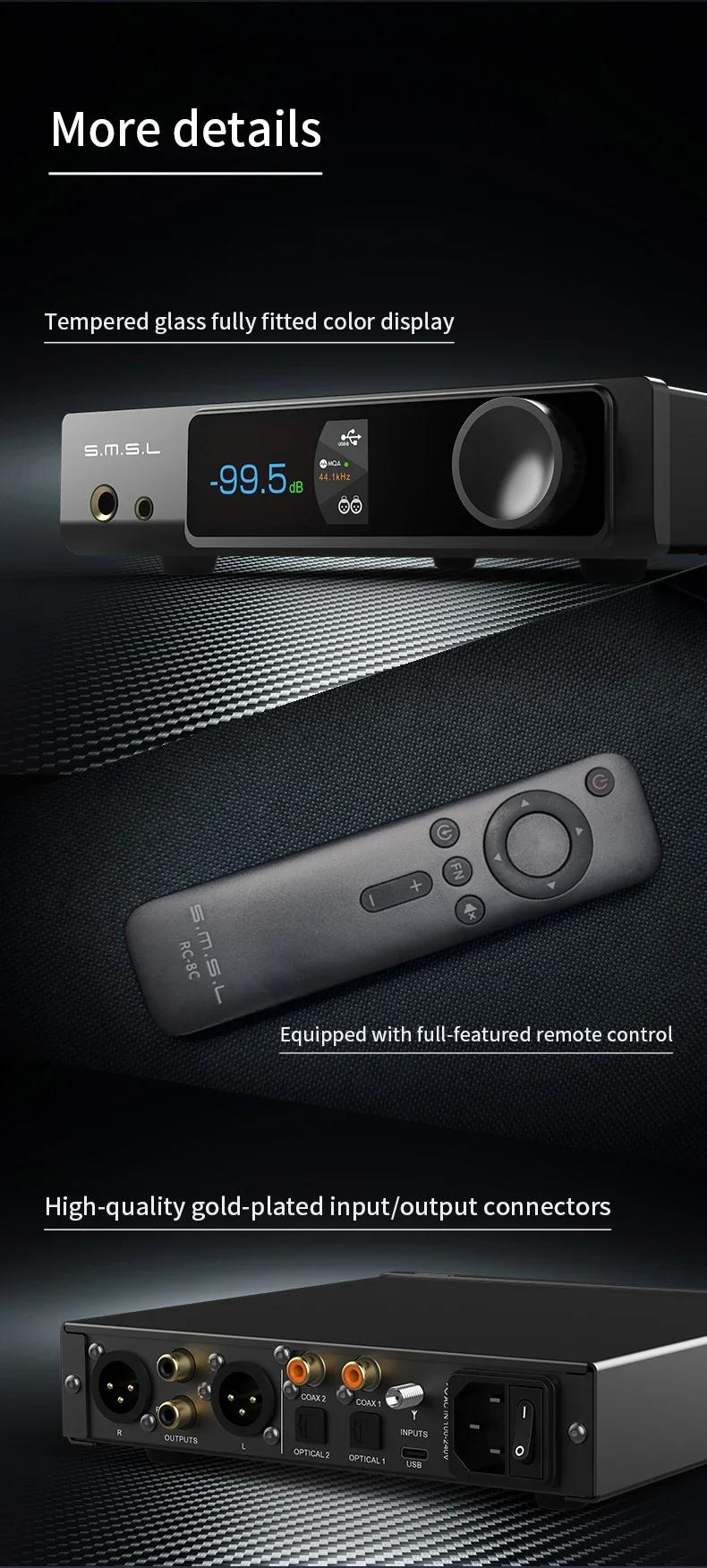

- Input mode: USB, optical fiber x 2, coaxial x 2, Bluetooth
- Output mode: single-ended circuit, balanced circuit, headphone amplifier

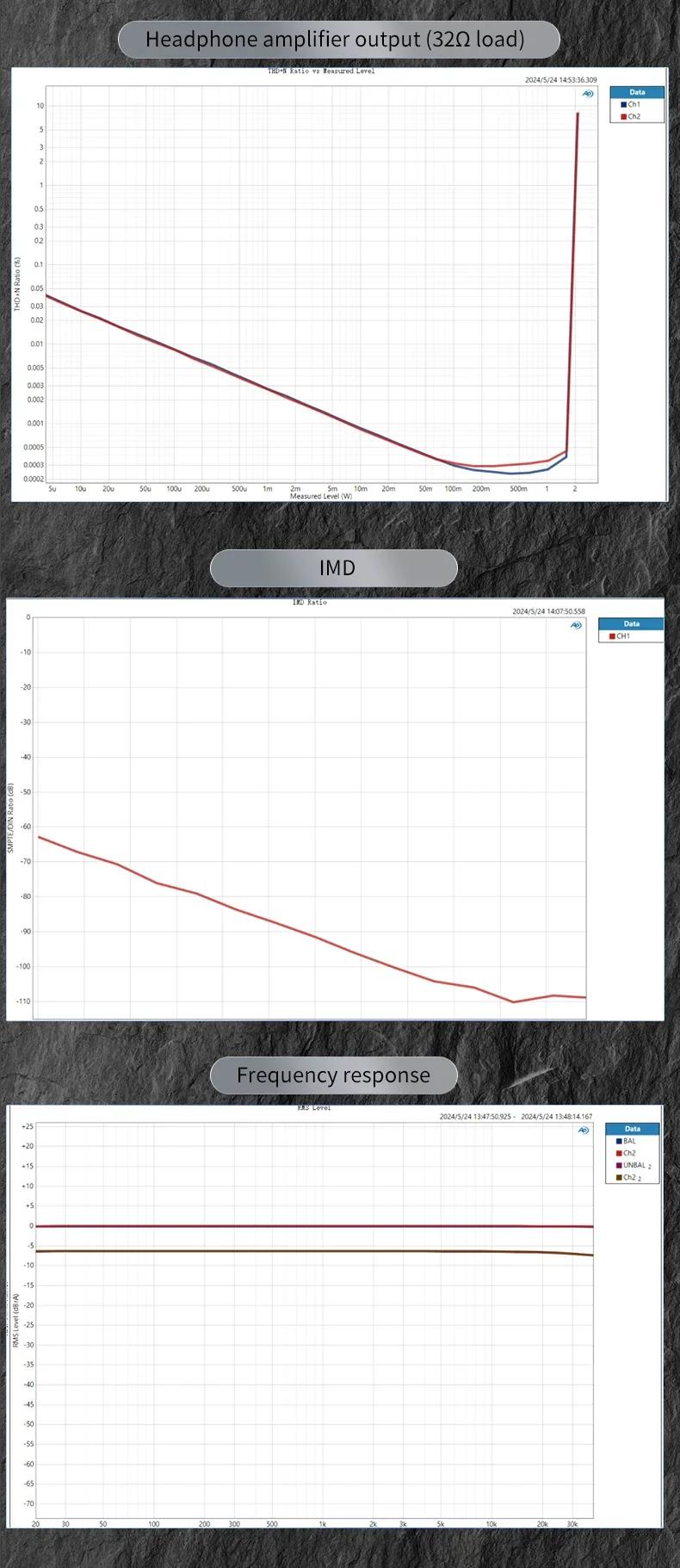

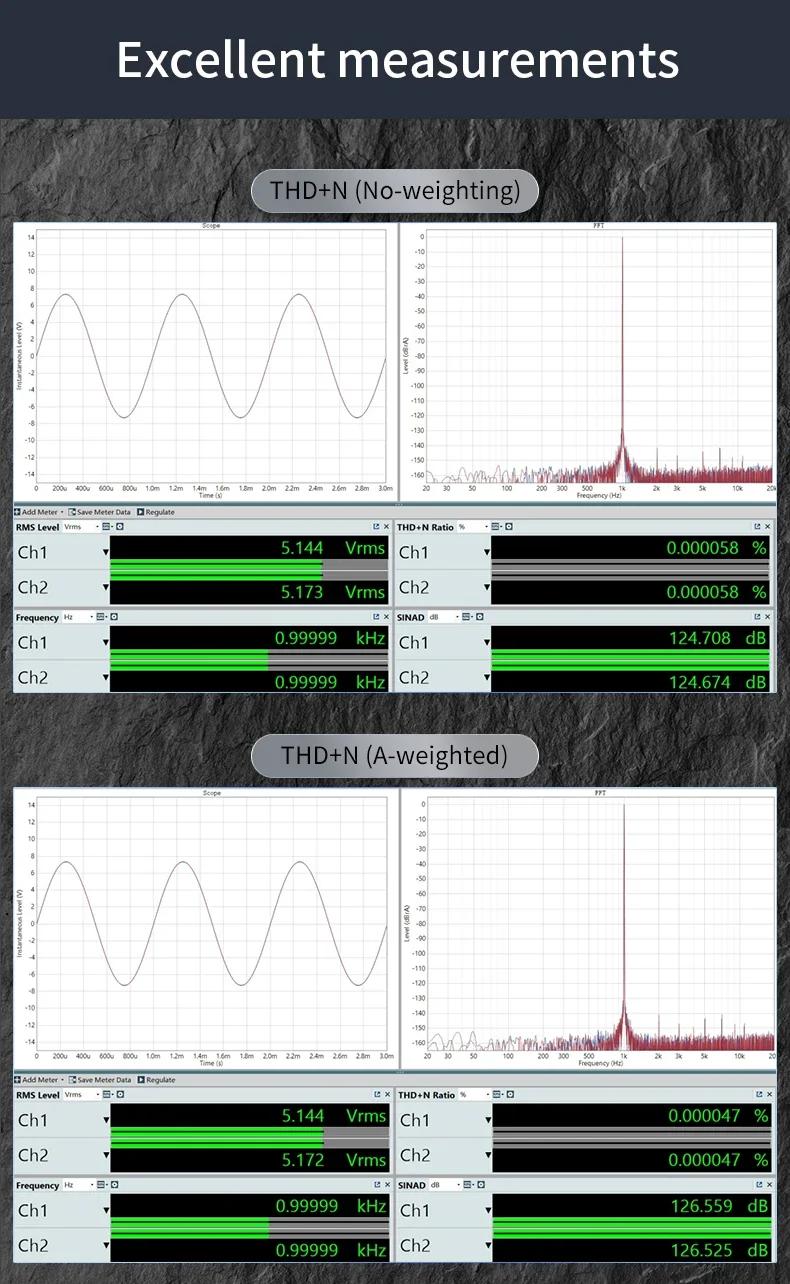

- THD+N: 0.00005% (-124.5dB Aweighted)
- Output amplitude: 5.2Vrms for balanced, 2.5Vrms for single-ended, 8.2Vrms for headphone amplifier output
- Headphone amplifier output power: 2.5W x 2 at 16ohms; 1.7W x 2 for 32ohms
- Output impedance: 100ohms for circuit output; about 0ohm for headphone amplifier output

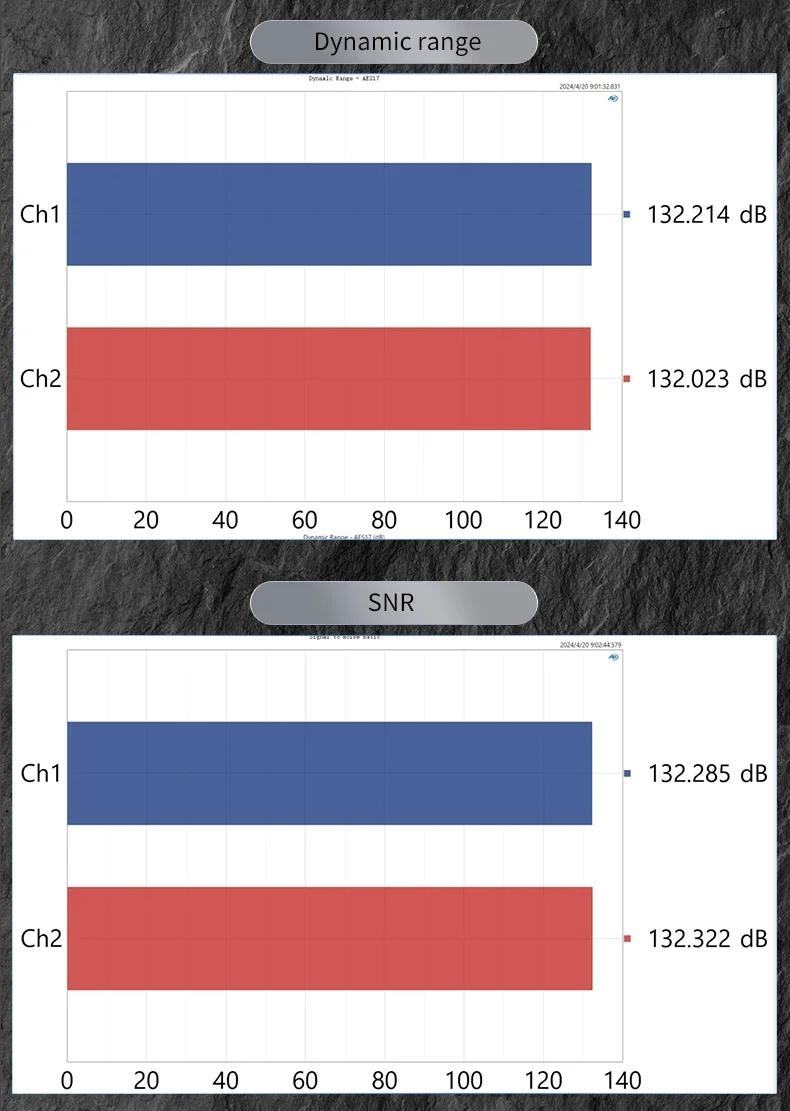

- Dynamic range: 132dB for balanced, 127dB for single-ended, 122dB for headphone amplifier
- SNR: 32dB for balanced, 127dB for single-ended, 122dB for headphone amplifier output
- USB transmission mode: asynchronous transmission
- USB compatibility: for Windows 7/8/8.1/10/11 (need to drive), for Mac OS X 10.6 above, for Linux (no need to drive)

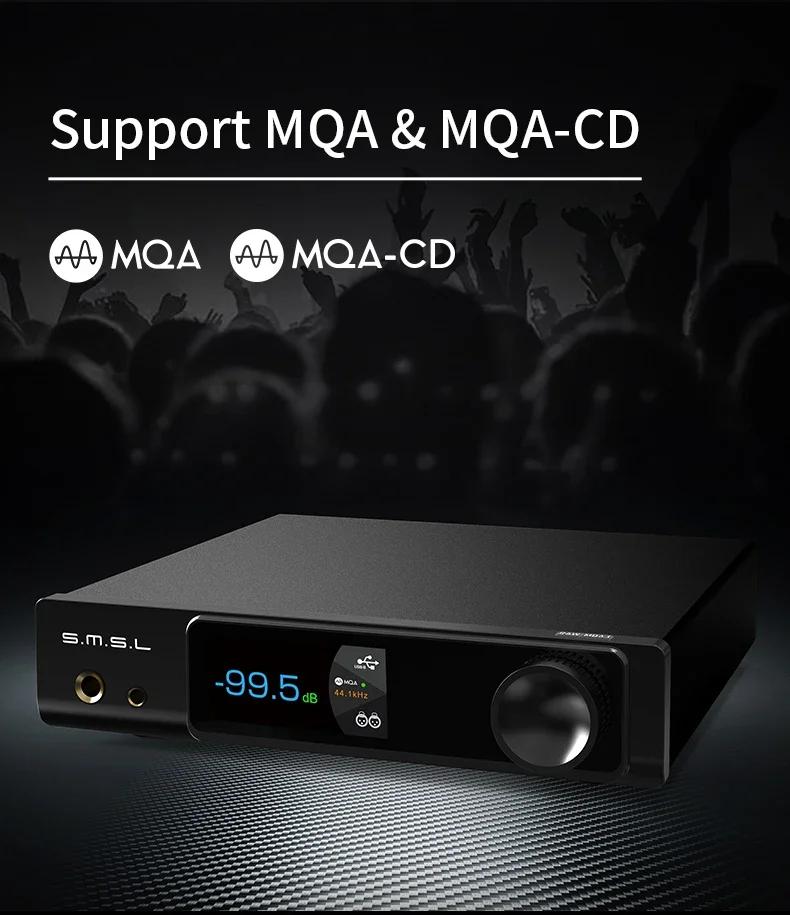

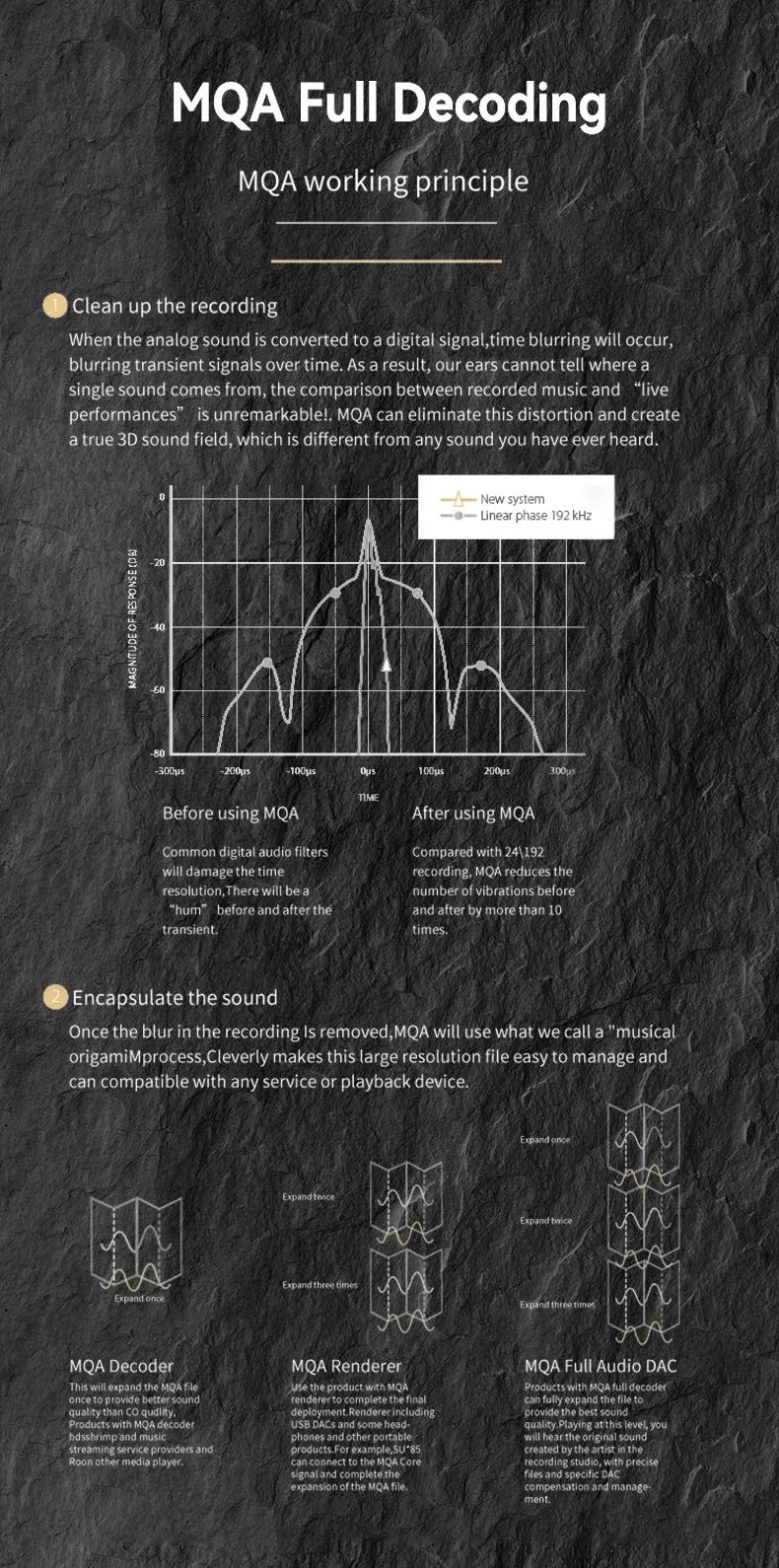

- MQA decoding: USB, optical fiber, coaxial
- Sampling rate and bit depth:

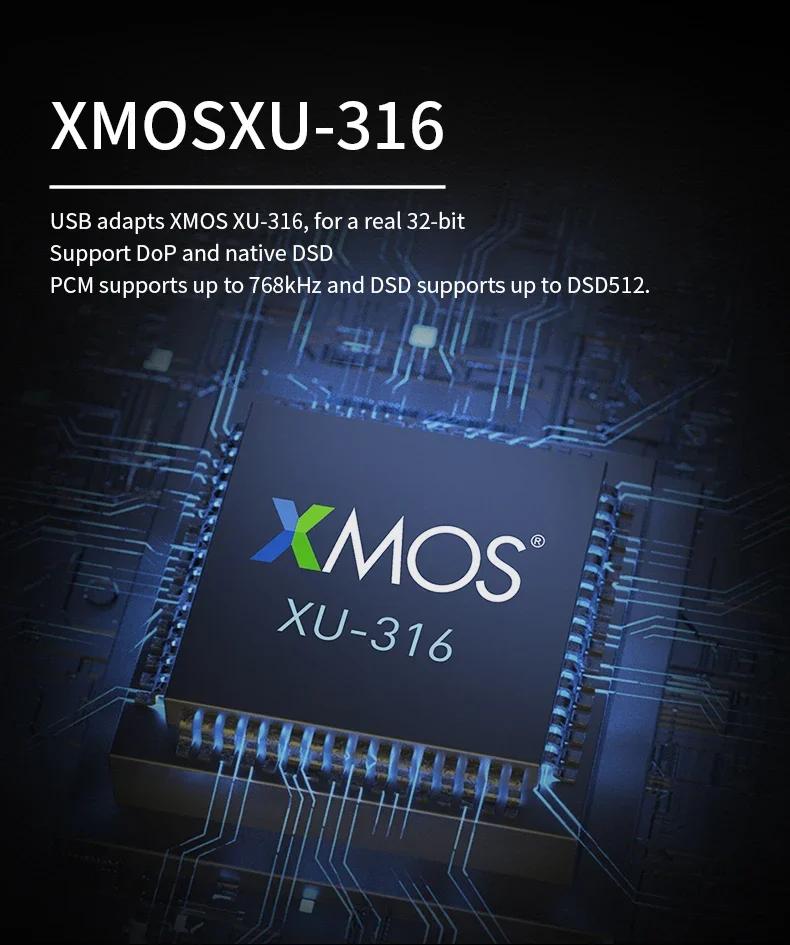

USB: PCM 44.1 - 768kHz (32bit), DSD 2.8224 - 22.5792MHz (1bit), DoP 256
Coaxial/Optical: 44.1 - 192kHz (24bit), DoP64

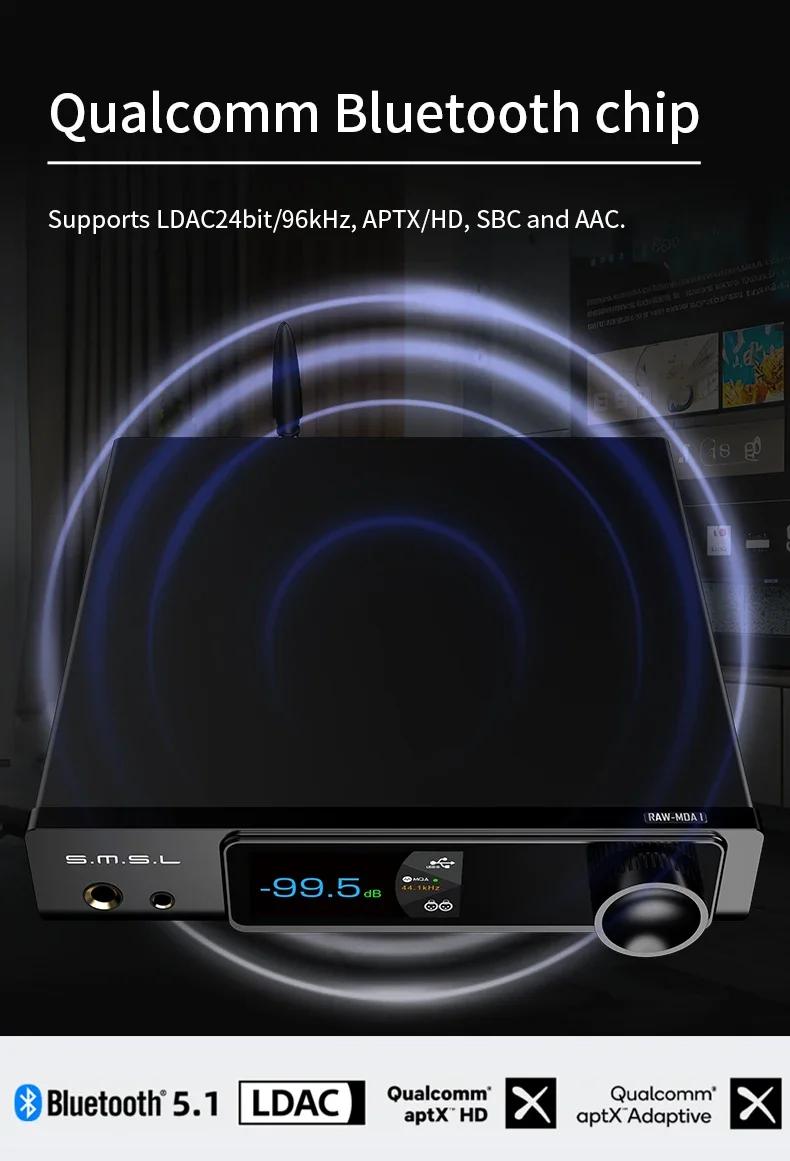

- Bluetooth: 5.1 (support SBC, AAC, aptX, aptX HD, LDAC)
- Power consumption: < 30W
- Standby power consumption: < 0.5W

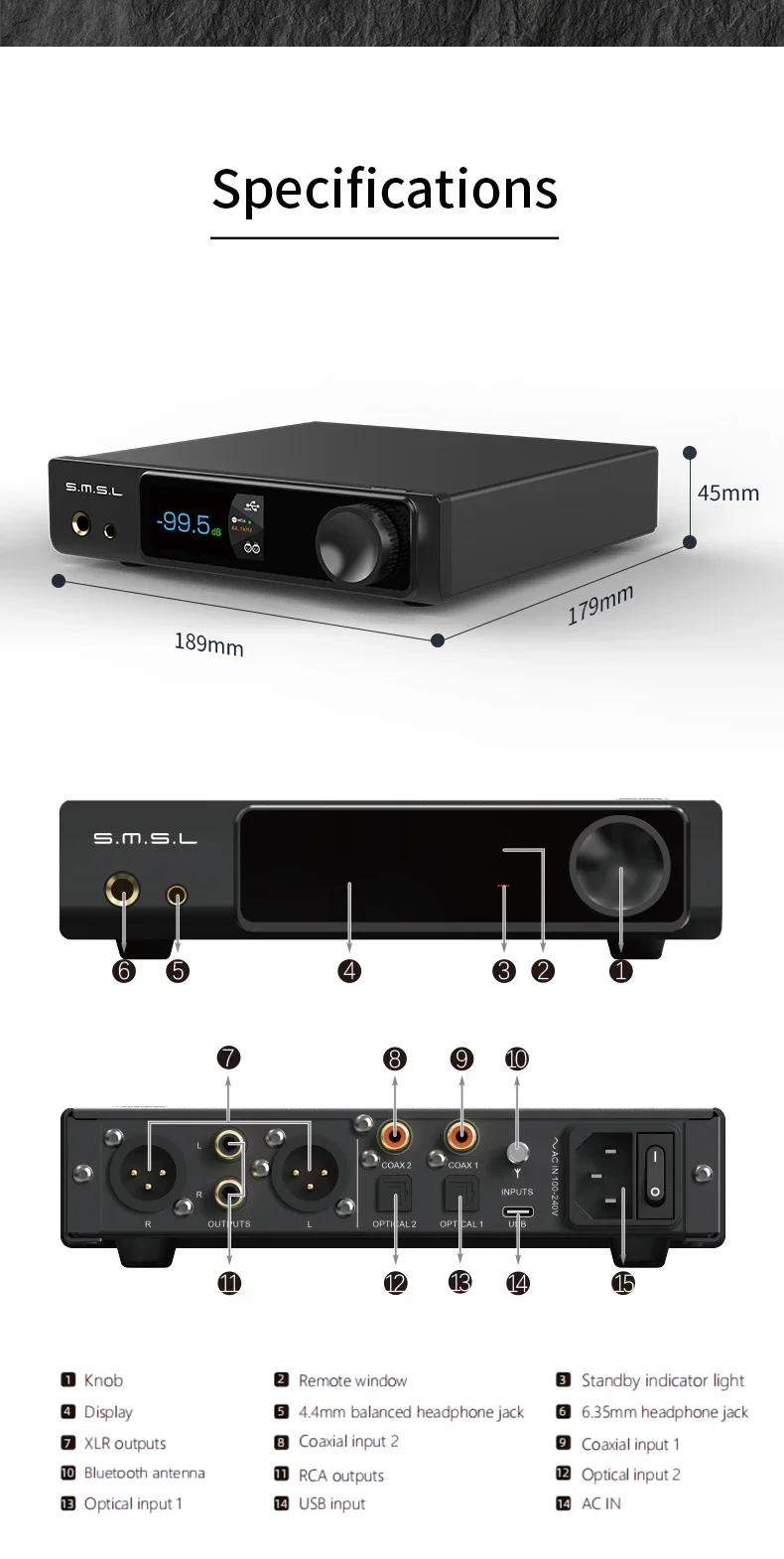

- Product size: 189 x 45 x 179mm (W x H x D)
- Net weight: 1.02kg/2.24lbs
Package Included:
- 1 x Audio Decoder
