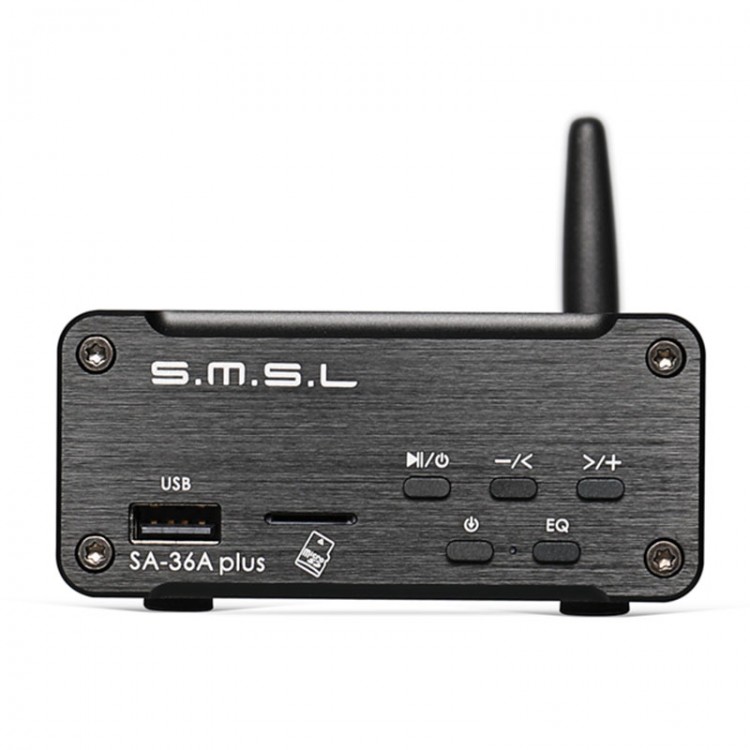

SMSL SA-36A Plus HIFI Digital Audio Power Amplifier 30W TPA3118 Class D Bluetooth USB AUX TF Card U Disk Input Black

SMSL SA-36A Plus HIFI Digital Audio Power Amplifier 30W TPA3118 Class D Bluetooth USB AUX TF Card U Disk Input Black

SPECIFICATIONS:
- Output power(4ohm): 30W
- Amplifier IC: TPA3118
- Bluetooth version: 3.0/4.0/4.1
- Power consumption: 22W
- Standby power: 0.5W
- Input: BT/USB Audio/U-Disk/TF card/3.5mm
- Output: banana jack
- Power supply: 24V
- Color: Black
- Size: 120*92*40mm L*W*H
- Net weight :approx. 322g.
- Gross weight: 748g

Description:
Bluetooth input: you can connect the phone or computer Bluetooth, with external antenna, barrier-free transmission distance of up to 10 meters or more;

USB input: you can connect the computer to use the USB, do not need to drive, this time the amplifier is equivalent to an external sound card, the computer sound option which will be set to the default device amplifier, and then play music (such as Microsoft WIN7 / WIN8 / WIN10 system , Right-click the lower right corner of the "small speaker" -- click "playback device" -- right-click "USB2.0 Device" -- click "set as the default device" -- click "OK."

U disk input: This is the use of USB interface, connected to the U disk, power amplifier decoding U disk inside the MP3 / WAV music format, support to 64G capacity;

TF card input: insert the TF card, TF card decoding inside the MP3 / WAV music format, support to 32G capacity;

AUX input: 3.5mm stereo audio input, as long as the analog output can be connected to use, such as mobile phone / computer headphone port output.

Note: The type of U disk and TF card need to be FAT32, the general U disk and TF card is the default FAT32

Package includes:
- 1*36A Plus AMPLIFIER
- 1*Power adapter
- 1*Antenna
