SMSL Sanskrit 10TH MKII Mini DAC Decoder AK4493 DAC 32Bit/768KHz DSD512 Optical Coaxial Input Black

SMSL Sanskrit 10TH MKII Mini DAC Decoder AK4493 DAC 32Bit/768KHz DSD512 Optical Coaxial Input Black

How to Use Sanskrit 10th MKII?
Long press the button to turn off. It turns off and red light is on. Short press to turn on, and short press to switch input after power on.

Driver:
https://pan.baidu.com/s/1Fimd5x5j_x4naQfDJZLrzA
Password: 46rr

Features:
- Elegant and simple appearance, showing a distinctive fashion atmosphere
- Compact design, easy to use, support multiple placement methods
- High-end DAC decoder
- The second-generation solution for XMOS
- PCM sampling rate supports 32Bit/768kHz.
- DSD supports DSD512. Support Native DSD driver.
- USB digital interface uses the currently more advanced asynchronous processing module for XMOS. The driver is customized by the German company for Thesycon. Compared with the public version driver, the overall sound effect is improved, and it supports both native DSD (Native DSD) and Dop, supports up to 32bit/768KHz and DSD512 decoding, with true DSD The code stream is sent to the D/A chip for decoding. The system for MacOS is driver-free, and the output can be set to 32bit/768KHz. Plug and play. The processing module for XMOS supports OTG function through a conversion line, can receive digital signals from mobile phones and for iPad, and realizes PCM and DSD high-definition decoding. The system for Apple uses the cable for Lightning USB Camera Adapter, and the system for Android uses a OTG cable.
- Audiophile grade materials! Low-noise operational amplifiers, high-precision low-noise resistors, audio dedicated capacitors, etc.
- DAC chip AK4493 is used. Under the careful adjustment of the engineer, the low distortion of 0.0002% (-113dB) of the expected effect is achieved!
- 2pcs Japanese ultra-low phase noise clock for NDK, greatly reducing system jitter.
- Low-noise power purification system, so that it can achieve ideal performance only through USB power supply!
- Built-in gravity acceleration sensor, automatically switch the screen! The design aim is to minimize the desktop space. It has three placement modes. In these three placement modes, because it has a built-in digital acceleration sensor, it will automatically switch the display's direction.
- Can be used as preamp. With a small wireless remote control, you can easily control the volume and connect to active speakers!
- Compatible with various mainstream audios. Compatible with mobile phones, tablets, computers and other devices and compatible systems for Android and Apple.
- AK4493 has excellent distortion and superior performance. The measured signal-to-noise ratio is as high as 120dB. Attention: Using the American APX-555B for Audio Precision to test, all tests are without A weighting.

Front Panel Introduction:
- Infrared remote control receiving window
- Display (automatic switching)
- Power supply/input selection button

Rear Panel Introduction:
- OUTPUTS: Audio output
- IN 3: Coaxial input
- IN 2: Optical input
- IN 1/POWER: USB input
- AUX POWER: Auxiliary power supply input

Specifications:
- Input: USB/Optical/Coaxial
- Output Level: 2.2Vrms
- THD+N: 0.0002%
- Dynamic range: 118dB
- SNR: 120dB
- USB compatibility: for Windows 7/8/8.1/10, Mac OSX 10.6 or Later/Linux
- Bit depth: USB 1bit~32bit. Optical/coaxial 16bit~24bit
- Sampling rate: USB, PCM 44.1~768kHz, DSD 2.28224~11.2896MHz. Optical/coaxial 32kHz~192kHz
- Power Consumption: 2W
- Standby power: <0.1W
- Product size: 75x45x144(WxHxD)
- Product weight: 320g

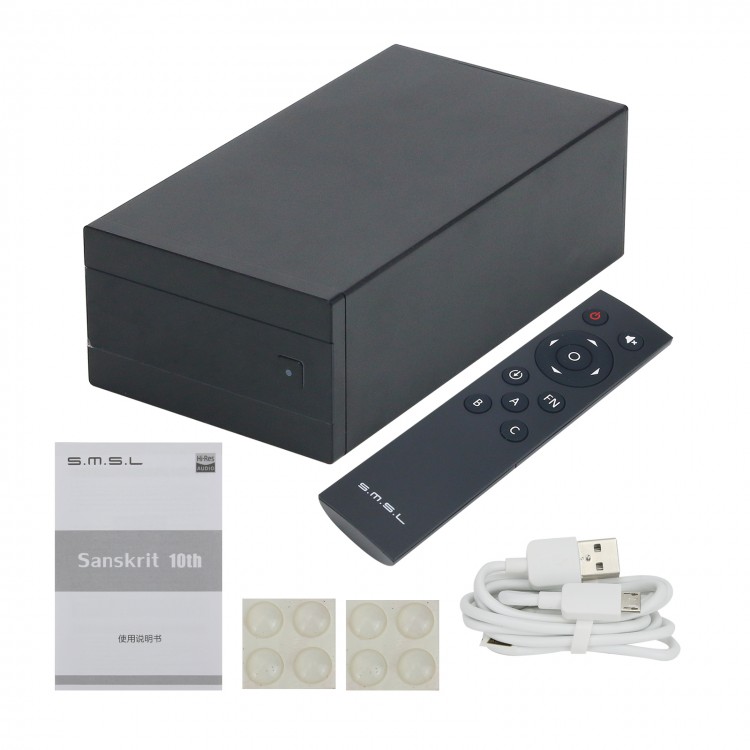

Package Included:
- 1 x Set of Mini Decoder

Note:
- It is assembled and ready to use.
