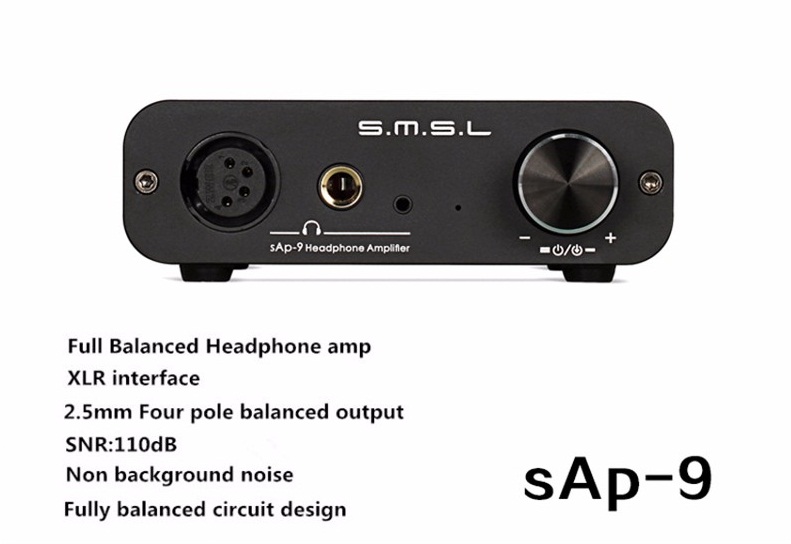

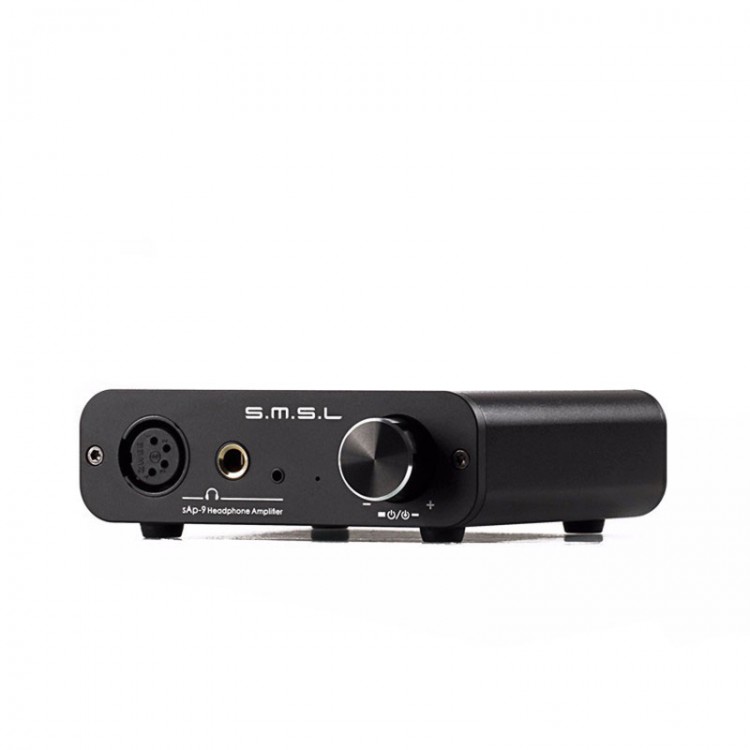

SMSL SAP-9 HIFI Digital Stereo Headphone Amplifier Class A Audio Amp with XLR Balanced Input
Features:
- XLR Full Balanced Input/Output
- No background noise,sound is very clean
- Can charging by 5V/2A Charging treasure
- Electronic volume control,the left and right channels balanced completely
- Support 2.5mm Four pole balanced output
- SNR reache to 110dB
Specifications:
- Input: XLR/RCA interface
- Output: Four pin XLR balanced interface/6.5mm headphone interface/2.5mm Four pole balanced headphone interface
- Power supply: 5V/2A
- SNR: 110dB
- Unbalanced output amp power (measured at THD + N = 0.1%):
32 ohm: 175 mW
64ohm: 130mW
150 ohm: 78mW
300 ohm: 45 mW
- Balanced Output Amp Power (measured at THD + N = 0.1%):
32ohm: 373mW
64ohm: 342mW
150 ohm: 245 mW
300 ohm: 155 mW
- Power consumption: 7.2W
- Main body weight: 443g
- Note: The balanced output port and the unbalanced output port can not be used at the same time!
Package including：
- SMSL SAP-9 headphone amplifier X 1
- 5V power adapter X 1
- USB to DC line X 1
