SMSL T1 AK4490EQ+CM6632A Digital Headphone Amplifier Audio DAC DSD512 Tube 384KHz 32Bit OPTIC Coaxial XMOS USB

SMSL T1 AK4490EQ+CM6632A Digital Headphone Amplifier Audio DAC DSD512 Tube 384KHz 32Bit OPTIC Coaxial XMOS USB

Description:
- USB sampling PCM support to 32 bit/384 kHz,DSD512 hard solution.
- High quality independent design,can be used as a separate decoder/amp.
- In order to avoid the influence on decoding part,bile duct fever structure adopted aluminium body isolation type design,reduce the temperature drift and interference.
- The warmth of the bile duct with years of accumulation of decoding design capability,sound warm and moving.
- Bravery former stage amplifier function,convenient take active speakers or amplifiers.
- Built-in relay protection,to avoid impact on/off,to protect the ears and equipment.

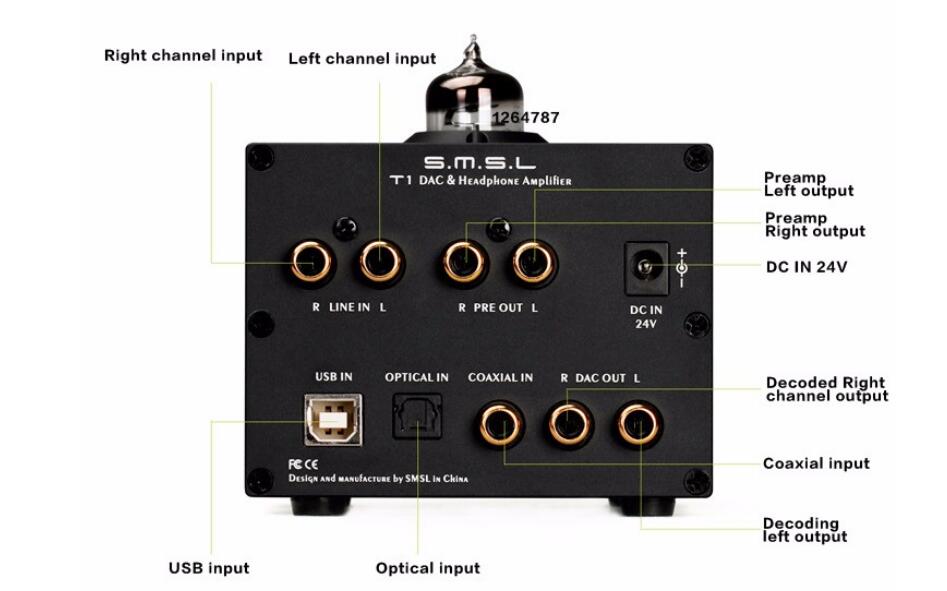

- USD/Optical/coaxial/RCA analog input,add headphones mouth/decoding RCA simulation/former stage amplifier output,better docking your device.
- Using CM6632A this performance is strong,can achieve native DSD digital flow of high-speed transmission chip as the receiving chip,and decoding the core part,is the audio chip AK4490EQ AKM company, support
- PCM32BIT/384 KHZ and DSD512 decoding, CM6632A+AK3390EQ combination,on PCHIFI implements DSD transmission and hard solutions for the perfect solution.

Specification:
- Input:USD/Optical/Coaxial/Analog input
- THD+N DAC out:0.001%
- Ears:0.017%
- Dynamic range:118dB
- DAC out signal-to-noise ratio: 107 dB
- Signal to noise ratio amp:94dB
- The USB transmission mode:asynchronous transmission
- USB compatibility: Windows 7/8/8.1/10;Mac OSX10.6 above
- A deep;USB:16-32 bit 1 bit
- Optical,coaxial:16-24 bit
- Sampling rate.USB PCM:44.1-384kHz
- USB DSD:2.8224/5.6448/11.2896/22.5792 MHz
- Optical,coaxial:44.1-192kHz
- Output power amp:
  32Ohm 59mW@THD=0.1%
  64Ohm 64mW@THD=0.1%
  150Ohm 58mW@THD=0.1%
  300Ohm 42mW@THD=0.1%
- DAC output level:2Vrms
- Power consumption:11.6W
- Standby power:1.4W

Package Contents:
- 1 x Headphone Amplifier
