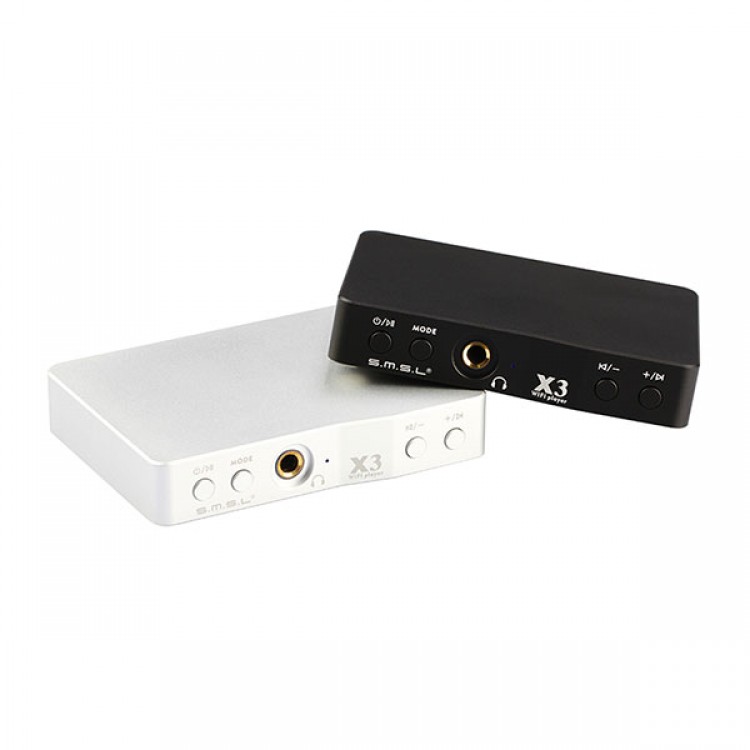

SMSL X3 Lossless Media Player WIFI SD Card U Disk Player

SMSL X3 Lossless Media Player WIFI SD Card U Disk Player

Description:
- X3 is a versatile streaming media players are emerging products, advancing with WIFI function. Its powerful playback mode and outputs to meet the diverseneeds of our audiophile listening.
X3 supports WAV, APE (1-4), FLAC, AAC, MP3, WMA and other mainstream format music player, high bit rate (320kbps) and ultra rate (lossless master level)are supported. Supports sampling rates 32 ~ 192KHz, support the bit width 16 ~ 32Bit.
X3 supports simultaneous voice prompts to make your operation more simple and convenient. With networking capabilities, including upgrades
X3 that is the biggest highlight of the entire transfer music files to the X3 (transmission bandwidth of up to 150M, minimizing transmission losses), X3 and thendecode and play music files, high-fidelity restore the music itself, can reach fever level. General product is the first re-transmission decoding and playing the music itself can cause severe losses due to poor sound quality.
X3 built-in high-fidelity headphone amplifier, low-distortion professional headphone amplifier chip-MAX9722, adapt 16Ω ~ 600Ω headphones. Maximum output power 130mW + 130mW / 32Ω, can push most of fever headphones.

X3 can achieve three play modes:
1.LAN WIFI playback mode. Transmission bandwidth of up to 150M, minimize transmission losses. Avoid intermittent Bluetooth products, sound cards and other issues; after joining the LAN, with LAN smartphones, tablets, computers and other equipment are free to play music, composed fidelity wireless audio system. Compatible with mainstream music clients, including cool dog, qq music, itunes, spotify, multi-meters, shrimp, Baidu music, Andrews own players.Under this mode the phone can also access other multi-task operation.
2.single player mode, ie the card or insert U disk player. You can use the buttons to control the machine itself operate the machine.
3 .Direct WIFI playback mode, you can use the phone with WIFI enabled devices, such as one with X3 pairing (after the initial configuration is successful, the subsequent use of automatic detection, no matched pairs). X3 will send the file to play.

X3 can achieve three output modes:
1.Built-in headphone amplifier output can use an external headset.
Impedance adaptation: 16Ω ~ 600Ω
Maximum output power: 130mW + 130mW / 32Ω
SNR: amp> 100dB
Most headphones can push a fever.
2 .analog signal output can drive an external amplifier or multimedia speakers.
Analog output: 2Vrms (relative to the CD player output level)
SNR:> 100dB
Distortion: <0.002%
3.coaxial output can use an external decoder.
Ultra Low Jitter-Jitter, supports 24Bit / 192KHz. The sound is as good as an external decoder.

Technical Parameters:
WIFI Specifications: 2.4GHz, 802.11 b / g / n
Audio formats: WAV, APE (1-4), FLAC, AAC, MP3, WMA, etc.
Sampling rate: 32 ~ 192KHz
Bit width: 16 ~ 32Bit
Input: WIFI, Micro SD, U disk
Output: Analog output (2Vrms),
Coaxial (0.5Vp-p @ 75Ω),
32Ω/130mW +130 mW headphone output
SNR:> 100dB
Distortion: <0.002%
Dynamic range:> 108dB
Power consumption: 4W (Standby: 0.2W)
Volume: 130X97X24mm
Weight: 260g (plus packaging 500g)
