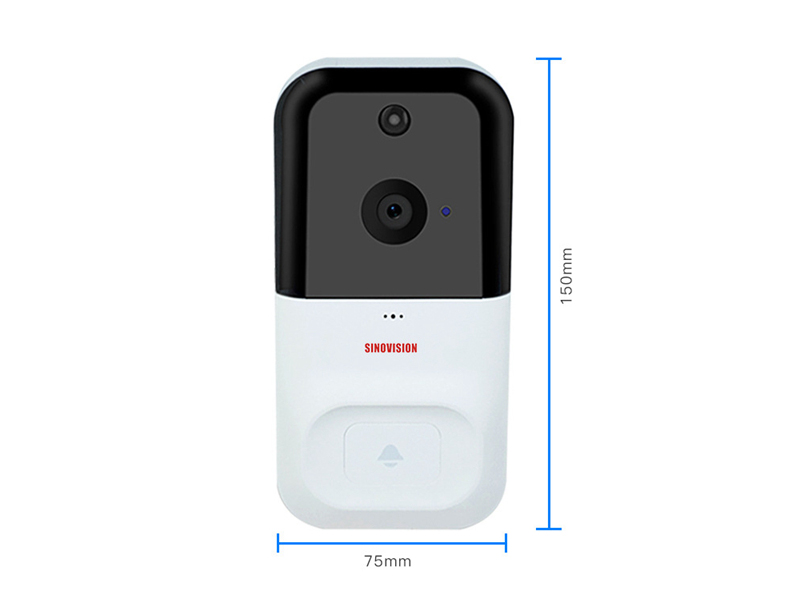

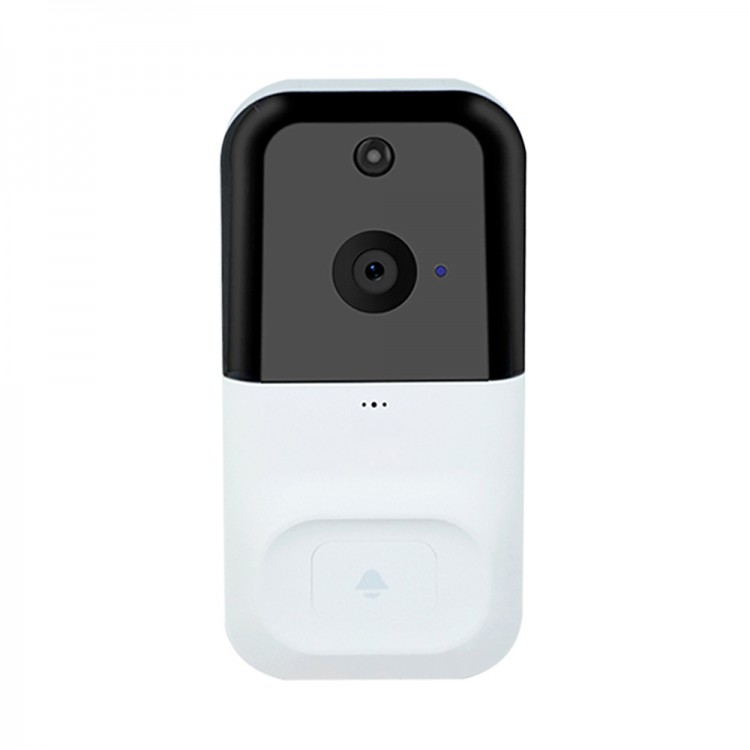

SN-D220 2MP Video Intercom Wifi Home Wireless Intercom System Infrared Night Version 166-Degree Lens

SN-D220 2MP Video Intercom Wifi Home Wireless Intercom System Infrared Night Version 166-Degree Lens

Features:
- WIFI smart home intercom low power consumption
- Mobile phone monitoring outdoors
- 166° lens, wide field of view. Built-in 2MP super clear lens, super wide panoramic wide angle
- Two-way voice intercom: Via mobile phones, you can made real-time voice calls with visitors outside the door
- Infrared night vision. Equipped with off-line high-definition night vision, which is automatically turned on at night and can be seen clearly at night
- Support SD card and cloud storage
- Motion detection: PIR detection, human body sensing technology. Equipped with PIR human detection sensor, it can detect human body within 5 meters of the door for 24 hours. After detecting the movement of a human body, it starts to take video to protect the safety of you and your family
- Widely used. Suitable for offices, homes, warehouses, companies, etc.
- Strong penetration ability, don’t worry about weak signal

Specifications:
- Operating system: for Linux
- Image sensor: 1/3 2MP for CMOS
- Minimum illumination: color 0.3 Lux at F1.2, black and white 0.8 Lux at F1.2, 0 Lux infrared on
- Day and night conversion mode: IR-CUT dual filter automatic switching
- Lens: 2.5mm F2.4/166° HD lens
- Video compression standard: H.264, supports dual stream
- Video mode: HD/SD
- Maximum image size: main stream 1920×1080; sub stream: 1280×720;
- Resolution: 1080P: 2MP
- Frame rate: 25 frames
- Audio encoding: G726, G711, AAC, MP3 format, 8K sampling rate, support echo cancellation

Functions:
- Audio input: built-in MIC
- Audio output: built-in speaker
- True standby: Built-in MCU, support true standby function; support infrared, button, GPIO alarm to wake up the main system; system standby power consumption 60uA
- Wireless network: 2.4GHzIEEE 802.11b/g/n
- Storage function: Support Micro SD card storage, maximum 128G
- Smart alarm: PIR infrared sensor alarm
- Infrared light: 6pcs infrared light, wavelength 850nm, effective distance 10 meters
- Power supply: Support AC input
- Standby time: 6-8 months
- Power consumption: 120mA (working) 120uA (standby)
- Video: TF card (15 seconds each time)
- Audio: Two-way intercom, with echo cancellation
- Working environment: -10°C to 60°C/20%～85% (non-condensing)

Package Included:
- 1 x Set of Wireless Intercom

Note:
- Batteries, memory card and doorbell function are not included.
- It is recommended to use 3pcs 18650 polymer lithium batteries, charging voltage 5V 2A.
