SOFi SP328P Hi-speed Programmer Flash Programmer Suitable for SPI NOR/NAND FLASH and EEPROM

SOFi SP328P Hi-speed Programmer Flash Programmer Suitable for SPI NOR/NAND FLASH and EEPROM

Supported Chip List:
https://www.sflytech.com/English/Product/7428053752.html

Introduction:
SP328P is a high-speed mass-production programmer for SPI FLASH. It supports high speed mass production programming of SPI NOR/NAND FLASH, I2C/MicroWire and other EEPROMs from domestic and foreign manufacturers.

It adopts high-speed MCU+FPGA architecture, built-in hardware driver engine and IO dynamic allocation technology. It supports SPI FLASH QUAD (four-channel) mode, adopts USB2.0 high-speed (480Mbps) communication interface, and uses a built-in memory instead of the conventional external SD/CF card to save the programming project files. Multiple innovations and leading technologies effectively ensure the efficiency and stability of mass production. In the actual test, it takes only 75s to burn a W25N01GV (1Gb SPI NAND) (erase + programming + verification).

The SP328P programmer is equipped with our first ATE control port, which supports a wide range of automated programming systems from various manufacturers. The offline programming project file can be loaded from PC or USB drive. Thus, it is convenient and flexible to use. It supports offline burning serial number and UID encryption function.

Advantages:
* USB2.0 high speed (480Mbps) communication interface
* 2.4-inch TFT color LCD screen with a wide field of view
* Support offline burning serial number
* Supports data encryption based on UID function
* Supports QUAD and DUAL mode of SPI FLASH
* Supports offline and online programming, and automatic programming systems

Features:
With LCD display and operating keyboard

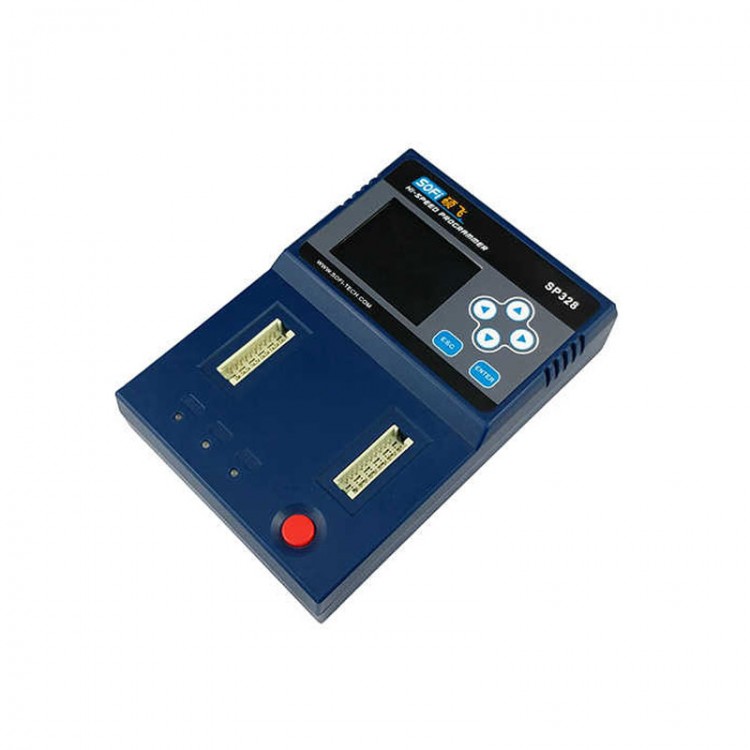

* SP328P is equipped with a 2.4-inch TFT color LCD screen with a wide field of view and a "cross" navigation keyboard. The display is clear and intuitive, making it easy to operate.

Support offline programming
* No need to connect to a computer. The built-in memory chip saves the project data burned offline.
* Multiple CRC data validation to ensure the absolute accuracy of the burned data.

Offline memory
* 2Gb(256MB) (Note: The offline memory is used for storing system information, and about 250MB is used for storing user's burn-in data).
* Compared with the conventional SD/CF card to save offline data, its built-in memory chip has faster transfer speed and higher stability.
* With a USB drive interface, the offline programming project data can be loaded either from the computer or through the U disk, which is convenient for on-site application.
* Supports chip insertion startup/keystroke startup/ATE control port for startup.

Chip insertion startup
* Intelligent detection of chip placement and removal, no need for mouse clicks and keystrokes to complete the entire process of chip programming. This greatly improves the efficiency of manual programming.

Push-button startup
* Equipped with a separate start button. Each press of the start button can enable chip programming once.

ATE control interface
* The ATE control port provides accurate and reliable control signals (BUSY, OK, NG, START) for programming systems. It supports a wide range of automated programming systems/manipulators, featuring stable and efficient performance.

Uses special adapter module interface
* Adopts imported connectors and adapters to reduce the data transmission path, reduces interference, and effectively improves the reliability and service life of the programmer;
* The software intelligently matches the driving algorithm of the corresponding package according to the adapter module;
* No limitation on the number of programming times of the programming sockets, which greatly saves the user's cost of use.

FLASH intelligent erase technology
* It automatically matches the best erase algorithm according to the data in the chip;
* When the chip is completely empty: it will automatically skip the erase operation;
* Part of the chip has data: only the area with data is erased;
* Conventional programmers can only use full chip erase, which greatly reduces the efficiency of programming in mass production.

Supports QUAD, DUAL, and Standard SPI modes of SPI FLASH
* DUAL: Dual channel mode. Two IOs are used for data transfer at the same time, and the transfer rate is twice that of standard SPI.
* QUAD: Quad mode. Simultaneous use of four IOs for data transfer. And the transfer rate is four times that of standard SPI.
* Most of the programmers on the market (including the SP8/SP16 series from SFLY) can only support the standard SPI mode.

Optional clock frequency setting
* SPI FLASH: 8/12/16/20/24MHz
* SPI EEPROM: 250/500KHz, 1/2/4/6MHz
* I2C: 50/100/200/400KHz

Well-functioning programming and control software
* Supports Chinese and English switching, and compatible with a variety of operating systems.
* Switches between English and Chinese through the software menu.
* For WinXP, VISTA, and Win7/Win8/Win10 (32bit/64bit).

Supports software upgrade to add new devices
* Continuous free upgrade service can ensure the long-term use value and best performance of the programmer.

Supports project file management
* The project file saves all programming parameters, including: chip model, data file, programming settings, etc. Open an existing project to burn without any settings.

Project file locking and read-only attributes
* After the technician locks the project file, or the project file is read-only (the file attribute is read-only or opened in read-only mode), the programming file can not be modified, so you can rest assured that it will be handed over to the production line workers to operate.

Supports automatic serial number function (USB connection mode)
* It can be used to generate product unique serial number, MAC address, Bluetooth ID and so on. Automatic-increment and file modes are supported.

Other Features:
* Short-circuit/over-current protection: Prevents the programmer or chip from burning out due to chip reversal
* Chip pin contact check function: detect the pin contact before burning. And only burn when the contact is good. Otherwise, a graphical hint is given which pins are in bad contact
* Supports UID reading function for some chips
* SFDP content reading of some SPI FLASH
* Supports UID data encryption function of some chips: add anti-copy and anti-piracy functions to the chip
* Supports for offline automatic-serial number feature: Support for automatic-increment and file mode

Specifications:
* Supported devices: I2C/MicroWire and other EEPROMOM, SPI NOR FLASH, SPI NAND FLASH
* Device voltage: 1.7-3.6V
* Offline storage: 2Gb (256MB) (Note: The offline memory part is used for system information storage. About 250MB is used for user programming data storage)
* Communication interface: USB2.0 high-speed (480Mbps)
* Offline mode: Offline operation is supported
* Power supply: Input 150-240Vac, 50/60HZ; output: DC5V/1.5A
* Dimensions of main unit: 164mm x 113mm x 36mm/6.5" x 4.5" x 1.4"
* Weight of main unit: 260g/0.6lb

Package Included:
* 1 x Programmer main unit
* 1 x Power adapter
* 1 x USB cable
* 1 x Quick guide

Packaging Details:
* Weight: 0.55kg

Note:
* Programming socket is not included in the package.
