SON-168AV AV To RF Converter 6-12CH AV Switch RF Modulator Set-Top Box Modulator AV To Old TV

SON-168AV AV To RF Converter 6-12CH AV Switch RF Modulator Set-Top Box Modulator AV To Old TV

Read Before Purchasing:
This product is fully capable of converting devices with AV image output interfaces such as set-top boxes, DVDs, and old game consoles, and converts the output images into RF analog signals and connects them to the antenna interfaces of old-fashioned black and white TVs or color TVs for use. Please pay attention to the following points:
1. It fits TV with a circular antenna interface at the rear side. After the device is connected, the TV will not automatically display an image. You need to change the channel and adjust the knob to search for the converted image frequency to display the image.
2. For black and white TVs from decades ago, you need to know how to use the most basic tuning search function. At the same time, don't think that the TV can be energized as normal. There is a problem with the internal tuner and regulator of the TV, and the converted image cannot be adjusted or the image sound is not clear.
3. As long as you install and search correctly, there will be clear images and sounds.
4. Every device will be delivered after testing on the black and white TV.
5. It is not promised that the installation will be successful in your home.

Functions:
This AV RF converter can convert audio (AV) signals into RF signals, so that old TV sets without AV (red-white-yellow) input interfaces can display AV signals through antenna input socket. It can be connected to DVD, VCD, video recorder, digital set-top box and various video source equipment.

Using Method:

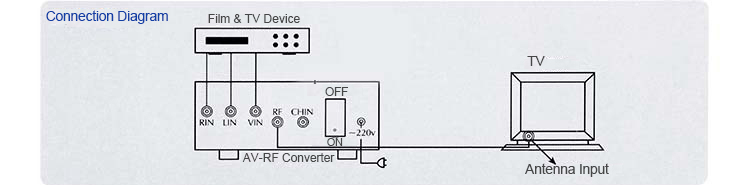

According to the connection diagram. Connect the red, white and yellow ports of the set-top box and DVD to the AV input on the splitter, plug the original wired input line into the CHIN port of the converter, and then connect the RF output line of the converter to the wired jack of the TV. Turn on video equipment, AV converter and TV, search and store in the TV VH section.

When watching TV programs normally, please turn off the power switch of the AV converter.



Features:
- Designed with imported high-frequency components
- The image is clear, the sound is lifelike, and there is no interference
- Suitable for converting video and audio signals into radio frequency signals

Specifications:
- Item name: AV-RF converter
- Model: SON-168AV
- RF output: 6-12CH
- Sound carrier: 5.0, 5.5, 6.0, 6.5MHz
- Antenna input: 45-1000MHz
- Power supply voltage: 220V±10%
- Power consumption: 1W

Package Included:
- 1 x Set of AV-RF Converter
