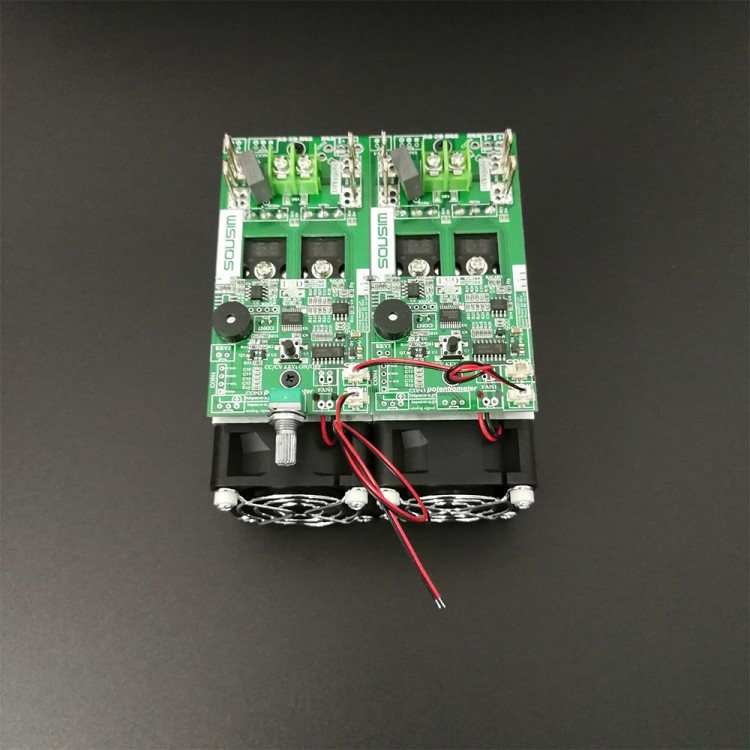

SOUSIM 300W CV CC Electronic Load Module Aging Load Test Equipment with RK097G Potentiometer 80V/30A

SOUSIM 300W CV CC Electronic Load Module Aging Load Test Equipment with RK097G Potentiometer 80V/30A

Features:
- Adjustable electronic load module
- Easy to use: adjust parameter via its potentiometer
- Load power can be increased by connecting multiple modules in parallel
- Two testing modes, CV and CC (red light is on for CV mode and green light on for CC mode). Long press the button on the board to switch between these two modes
- Its button have test mode state memory. You can check the current test mode status of the load by observing the LED indicators on the board
- The load module has over-voltage, over-current, over-power, over-temperature protection, and intelligent temperature control for heat dissipation
- Can be used for various switching power supplies, power adapter maintenance and aging test, and used with related instruments and equipment

Technical Parameters:
- Module DC power supply: DC 12-15V (12V 0.4W-4.0W; 15V 0.6W-6.0W (cooling fan running)
- Maximum load test power: 300W (test ambient temperature ≤ 40℃)
- Minimum load test voltage: 1.0V at 30A
- CV adjustment accuracy: 0.1V (RK097G adjustable potentiometer test & 25℃)
- CC adjustment accuracy: 0.1A (RK097G adjustable potentiometer test & 2S℃)
- CV accuracy: ±0.5% (3296W adjustable potentiometer test & 25℃)
- CC accuracy: ±0.9% (3296W adjustable potentiometer test & 25℃)
- Protection functions: over-voltage, over-current, over-power and over-temperature protection (≥ 80℃)
- Heat dissipation material: aluminum (please isolate the insulating heat sink to prevent electric shock and short circuit)
- Dimensions: 125 x 100 x 80mm/4.9 x 3.9 x 3.1"
- Net weight: 1Kg/2.2Lb

Package Included:
- 1 x Electronic Load
- 1 x 20cm/7.9" Power Cord

Note:
- The potentiometer is welded on the board.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
