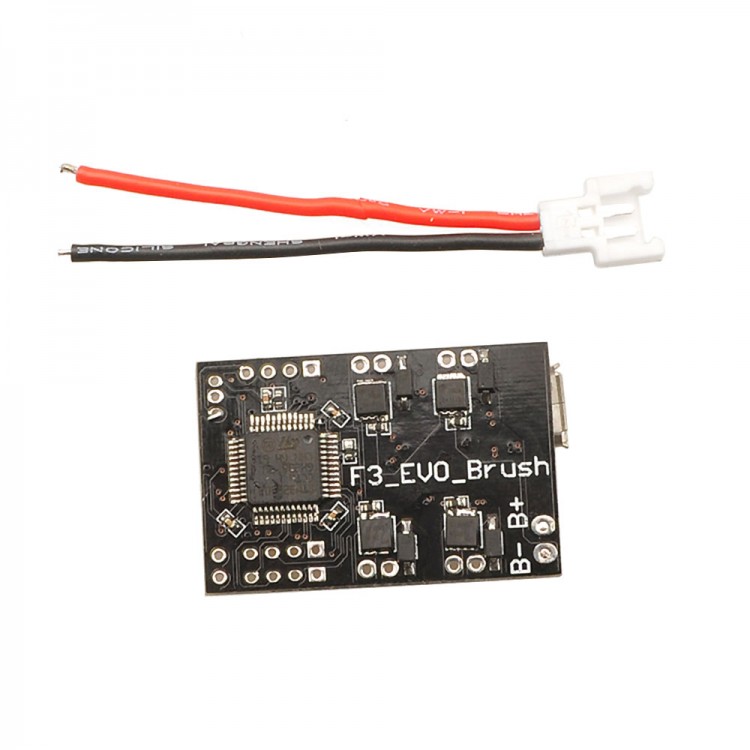

SP RACING F3 EVO Brush FPV Flight Controller 32Bit for Quadcopter Drone Multicopter
Features:
- F3_EVO_Brush revision is based on SP RACING F3 EVO,brush flight controller 32 bit.
- Support 1S (4.2V) and 2S (8.4V) power supply, with boost and buck technology,UART1/2 output 5V,UART3 output 3.3V
- Using STM32F303CCT6 + MPU6500
- With a large current NMOS transistors, operating current IS up to 10A or more. Each machine is equipped with freewheeling diodes.
- Support PPM, SBUS, DSM receiver signal input
- With battery voltage detection and buzzer interface.
7, PCBA dimensions are: 22MM * 32.5MM, PCB thickness: 1.2MM.
NOTE: Before power on: battery voltage selection, the default shipping is 1S (4.2V); if you need 2S,please disconnect the short contact of 1S and make connect to the two welding pad of 2S.

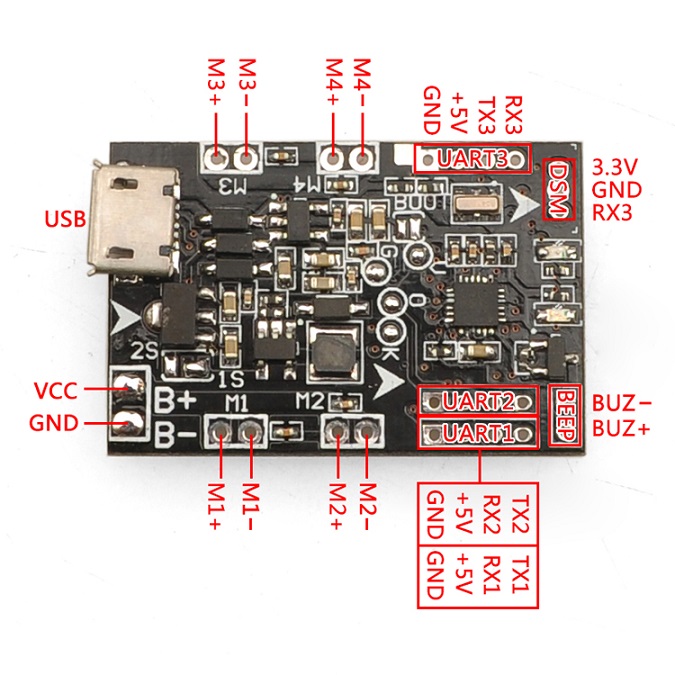

Receiver configuration:
1, DSM receiver soldered directly to the DSM interface 3.3V, GND, RX3, CF the software configuration UART3.
2, PPM and SBUS receiver welded above the UART2 GND, + 5V, RX2 ; SBUS signal CF in the software configuration UART2.
Package included:
- 1x Flight Controller
