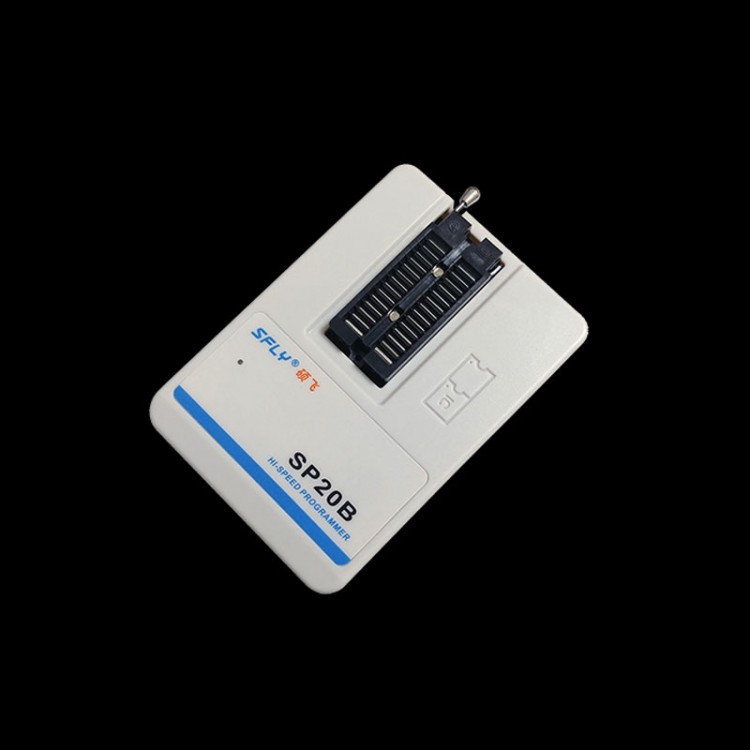

SP20B High Speed FLASH Programmer Type-C Online Writer Support ISP Programming for SPI NOR FLASH/EEPROM
Introduction:
- SP20 series (SP20B/SP20F/ SP20X/SP20P) programmers are the latest high-speed mass production programmers for SPI FLASH. It fully supports the high-speed programming for SPI NOR FLASH, I2C / MicroWire and other EEPROMs from domestic and foreign manufacturers.
Hardware Features:
- USB TYPE-C communication interface, no need for external power supply when used in USB mode.
- Support USB and standalone mode high-speed mass production programming.
- Replaceable 28-pin ZIF socket, which can be supported by conventional universal programming bases.
- RGB three-color LED indicates the working status.
- Support poor pin contact detection, effectively improve programming reliability.
- Support ISP mode programming, which can support on-board programming of some chips.
- Intelligent detection chip placement and removal, automatic startup programming.
- Short circuit / overcurrent protection function can effectively protect the programmer or chip from accidental damage.
- Programmable voltage design, adjustable range from 1.7V to 5.0V, can support 1.8V/2.5V/3V/3.3V/5V chips.
- Provide equipment self-check function.
- Small size (size: 108 x 76 x 21mm), simultaneous programming of multiple machines only takes up a very small work surface.
Software Features:
- Support for Win7/Win8/Win10/Win11.
- Support software upgrade to add new devices.
- Support project file management (project file saves all programming parameters, including: chip model, data file, programming settings, etc.).
- Support the reading and writing of additional storage area (OTP area) and configuration area (status register, etc.) of the chip.
- Support automatic recognition of 25 series for SPI FLASH.
- Automatic serial number function (can be used to generate product unique serial number, MAC address, Bluetooth ID, etc.,).
- Support multi-programmer mode connection: one computer can be connected with 8 SP20 series programmers for simultaneous programming, the automatic serial number function is active in multi-programmer mode.
- Support log file saving.
Package Included:
- 1 x Programmer
- 1 x Type-C Data Cable
- 1 x ISP Cable
- 1 x User Manual
