SpdifMax 32Bit/192KHz Hifi USB Sound Card Hi-Res USB Digital Interface for XMOS PC DAC Decoder

SpdifMax 32Bit/192KHz Hifi USB Sound Card Hi-Res USB Digital Interface for XMOS PC DAC Decoder

Product Functions:
- Basic specification: 32B/192K USB digital interface
- Transmission interface: USB 2.0 full speed, Type-B interface

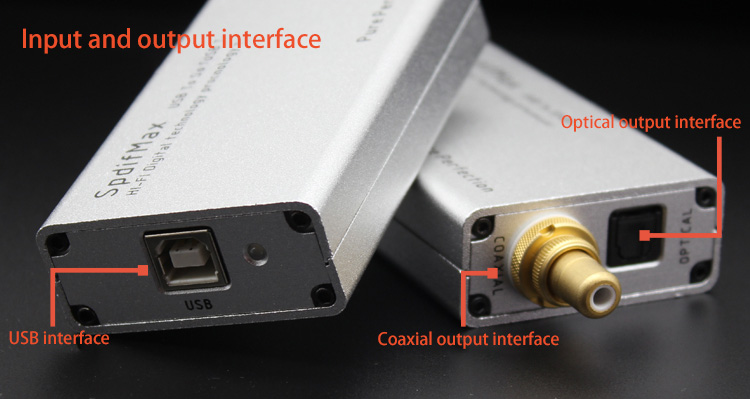

- Output interface: 1 set of coaxial output and 1 set of optical output
- Processing chip: 32-bit 8-core for XMOS, XU208, hardcore 1000MIPS processing
- Transmission method: USB asynchronous communication
- Drive mode: ASIO, Direct Stream, Kernel Stream
- Operating system: For Win XP, Win7/8 32/64, Win10 32/64, Apple iMac OSX above 10.6.4, Linux and Android

Description:

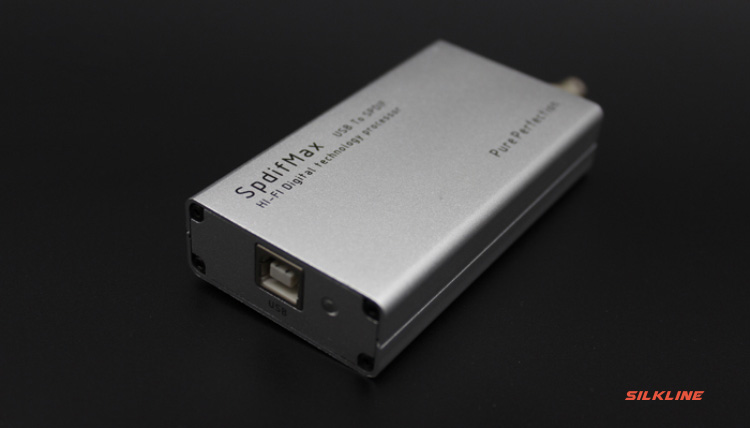

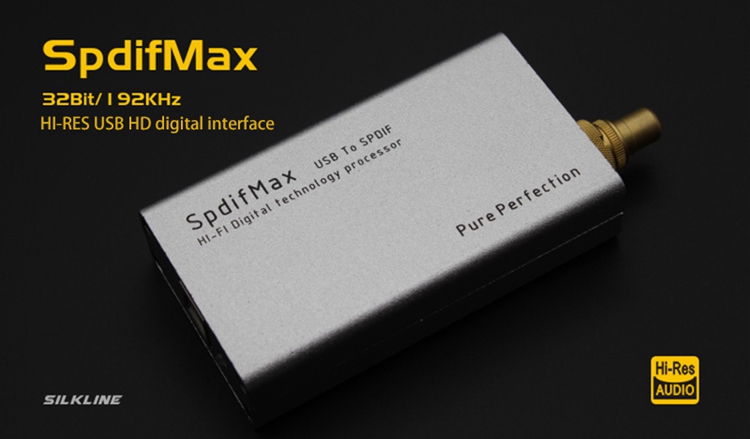

SpdifMax MKIl HI-RES HD digital interface

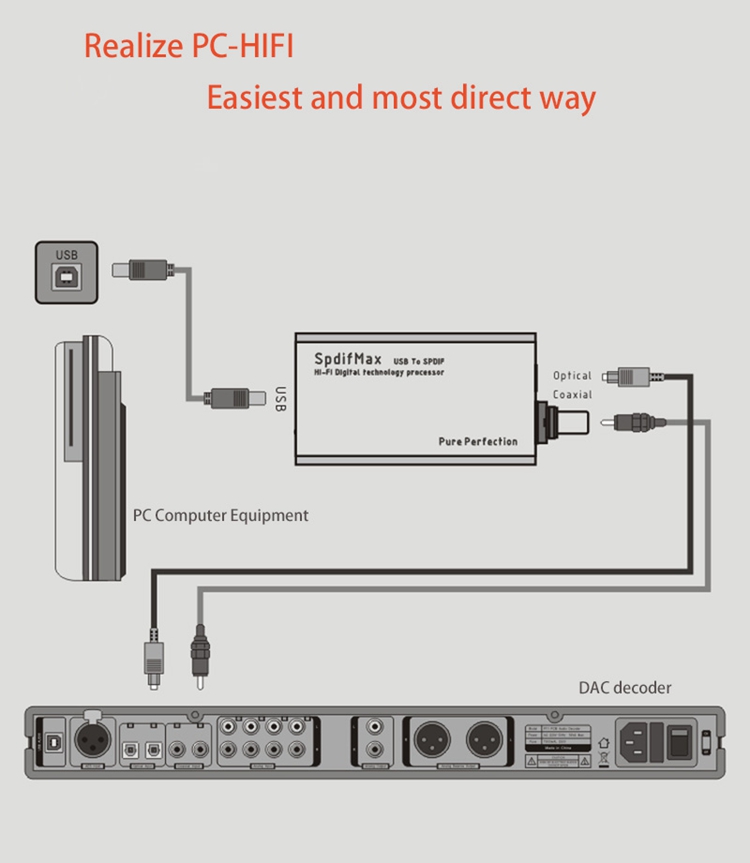

SpdifMax is a USB high-definition digital interface product launched by SILKLINE for PC-HIFI market. It supports PCM signal of up to 32Bit/192KHz, adopts USB asynchronous communication method, supports ASIO drive mode output, has the function of coaxial and optical output at the same time, and provides high-quality sound output for PC burners.

Continuing the PC-HIFI design concept
- Strictly follow USB Audio Class 2.0 technical specifications
- Support high-definition PCM signal transmission
- Sampling rate support 32KHz-192KHz
- Support 16Bit-32Bit quantization rate
- Adopt USB asynchronous communication method
- Support ASIO drive mode
- Coaxial and optical output at the same time
- For Windows/Linux/Android/Apple

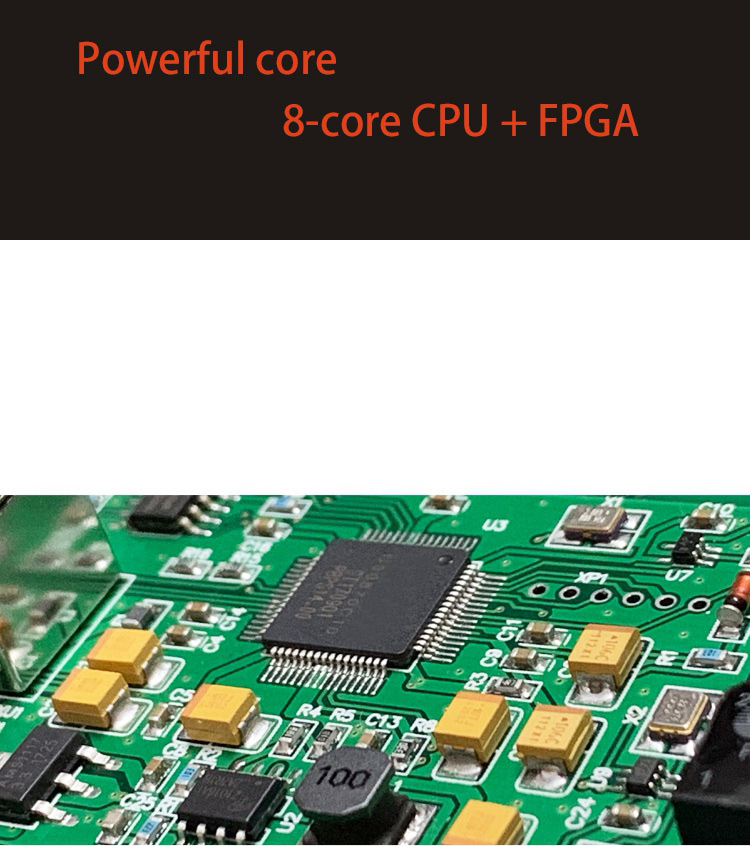

XU208 For XMOS
- The latest next-generation chip for XMOS. It adopts CPU+FPGA architecture and uses event-driven binary processing.
- The CPU unit consists of eight cores, which are responsible for the processing of the logic unit signals with up to 1000 MPIS processing power. The signal unit, on the other hand, uses an FPGA architecture that uses 8-tube pipeline parallel processing to ensure real-time signal performance.

Digital shaping, fully suspended isolated output
- In order to achieve a smaller jitter, the output stage specially added digital shaping technology, the shaping circuit will be the input signal pulse spike reduction high harmonics filtering, so that the signal square wave is more square jitter smaller, from the source side to ensure the accuracy of the subsequent DAC recovery clock.
- Based on ensuring that the equipment does not interfere with each other coaxial output interface using a completely isolated coupling design to achieve complete isolation between the audio system and the signal source is not affected by the PC to ensure that the audio system is spotless.

Adopt X-DRIVE convergent coaxial drive circuit
- Improve 4 times the driving capacity, and effectively isolate the electrical electromagnetic interference.
- In addition to the power supply system, SpdifMax adopts the measures of filtering, suppression and double voltage regulation to ensure the cleanliness of the power supply system.
- For the coaxial part, our self-developed X-DRIVE circuit is added to effectively minimize the possible interference of digital signal, and the multiplication technology is used to increase the driving current of signal and weaken the influence of interfering signal: thus, the driving ability and impedance matching of output signal are improved, and the effective transmission distance of coaxial signal is easily increased to more than 10m/32.8ft.

Product Parameters:
- Supported audio format: PCM 2CH
- Support transfer bit: 16Bit, 20Bit, 24Bit and 32Bit
- Sample rate: 44.1KHz/48KHz/ 88.2KHz/96KHz/176.4KH/192KHz
- Output transmission distance: Coaxial: ≥10m/32.8ft
- Dimensions (LxHxD): 50 x 20 x 90mm/2 x 0.8 x 3.5"

Package Included:
- 1 x Main unit
- 1 x Product quality certificate
- 1 x Instructions

Note:
- Cable is not included.
- If you need our assistance installing the driver, please contact us while purchasing. Thank you!
