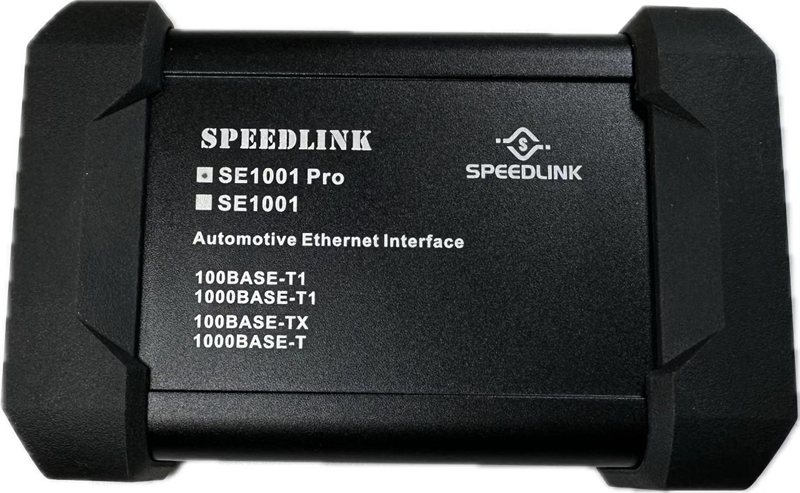

SPEEDLINK SE1001 Pro 1000Base-T1 Automotive Ethernet Interface Module to RJ45 Supports Legacy Mode

SPEEDLINK SE1001 Pro 1000Base-T1 Automotive Ethernet Interface Module to RJ45 Supports Legacy Mode

Functions:
- Rate: T1 and RJ45 are both compatible with 1000M/100M
- T1 interface: supports for TE Connectivity and Rosenberger. It supports 3.8mm 2pin interface, which is convenient for engineers to wiring freely at low cost
- DC interface: All-metal wrapped DC interface makes it more reliable and stable to connect
- SQI: 4-digit LED displaying signal quality (25%-50%-75%-100%)
- DIP switches: support rate adjustment, master-slave adjustment and automatic adjustment
- Device normal operation display: Support
- T1 and RJ45 Link/Act support: Support
- Current Link rate indication: Support
- Current master-slave instructions: Support
- Sound prompt: Support (1 short beep prompt when T1 Link is successful) (2 short beeps when T1 Link is disconnected)
- Power consumption: energy efficiency improvement. The overall power consumption is less than 2W, and USB2.0 can be used to supply power
- Legacy Mode: Support. Change DIP switch to automatic mode. For details, see "DIP Switch"

Features:
- Imported physical layer chip is used to achieve 100/1000BASE-T1
- Easily switches between 100BASE-T1 and 1000BASE-T1 through DIP switch, and select master and slave modes
- Automotive-grade connectors: H-MTD for Rosenberger and MATEnet for TE for automotive are selected
- Provides 2 kinds of power interfaces: Type-C and DC ports, of which DC port supports 5-32V power supply to input. Compatible with vehicle power supply, common to cars and trucks



Interfaces:

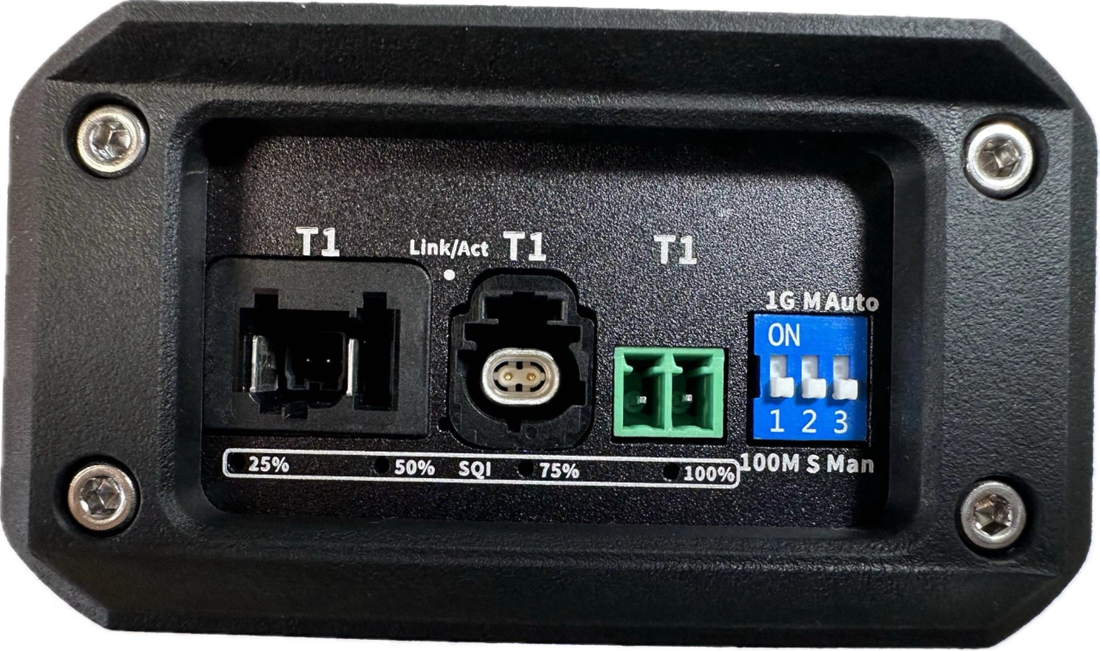

T1 Port:
SE1001 Pro is equipped with three T1 interfaces. If you need a matching wiring harness, you can consult customer service.

Indicator Lights:
1. Red indicator light (RUN): During normal operation, the Run indicator is flashing;
2. Green indicator light (Link/Act): T1's connection and communication indicator. Three statuses are as follows:
When it is not connected, the green light goes off.
When the connection is successful, the green light will be on.
When communicating, the green light flashes.

DIP Switches:
DIP switch 1: rate selection
- ON is 1000M (1G) mode
- OFF is 100M mode

DIP switch 2: master and slave mode selection
- ON is Master mode
- OFF is Slave mode

DIP switch 3:
SE1001 Pro is in automatic mode, and the device will automatically link to regular automotive Ethernet and Legacy Ethernet. When set to automatic mode, the first two DIP switches are invalid. When set to Man (manual) mode, the first two DIP switches are valid. When it is in automatic mode, connect T1 signal first, and then connect RJ45 signal.

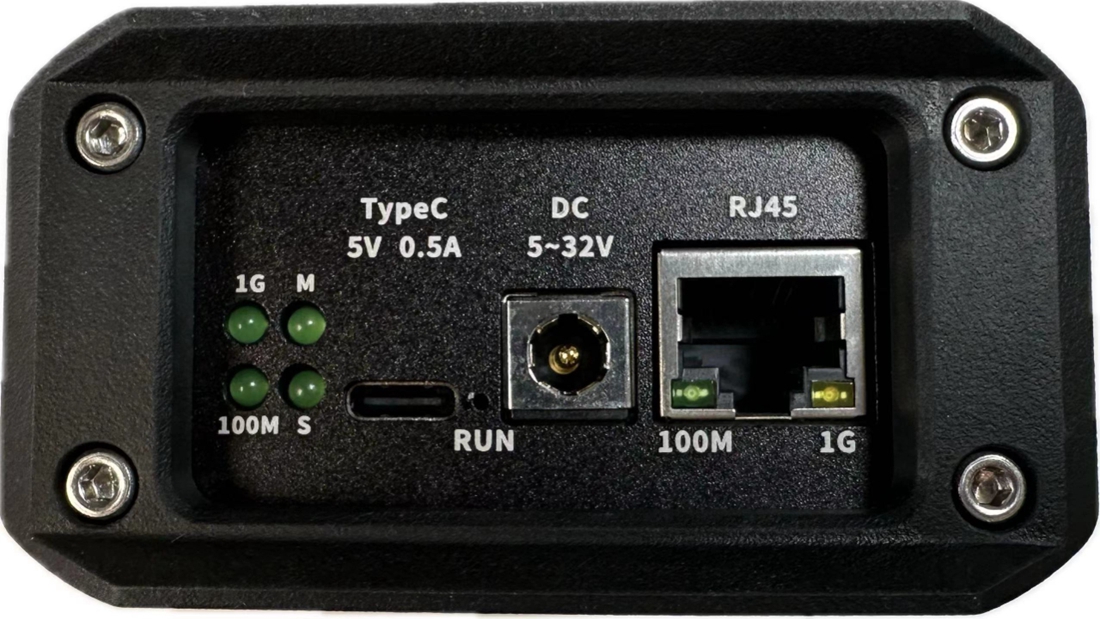

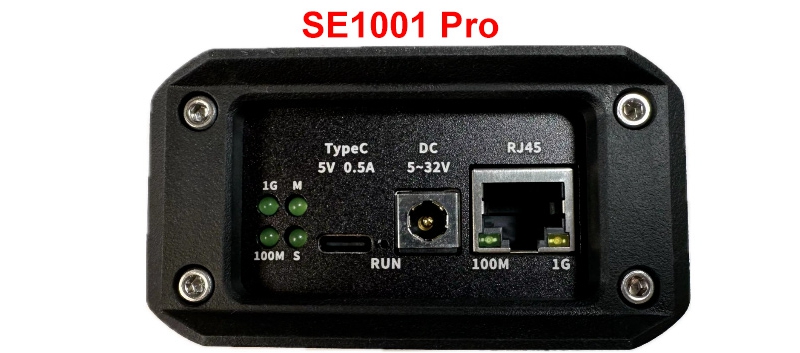

Power Interfaces:

1. Type-C Port:
SE1001 Pro: Only 5V 0.5A is required, and the power consumption is optimized, compared with that of SE1001.
2. DC power interface: the input range is 5~32V.

RJ45 Port:
- RJ45 supports 1G (1000M) and 100M, controlled by DIP switches
- RJ45 with indicator lights:
* Green indicator stays on: 100M mode linkUP;
* Green indicator is flashing: 100M mode Activity;
* Yellow indicator stays on: 1000M mode linkUP;
* Yellow indicator is flashing: 1000M mode Activity.

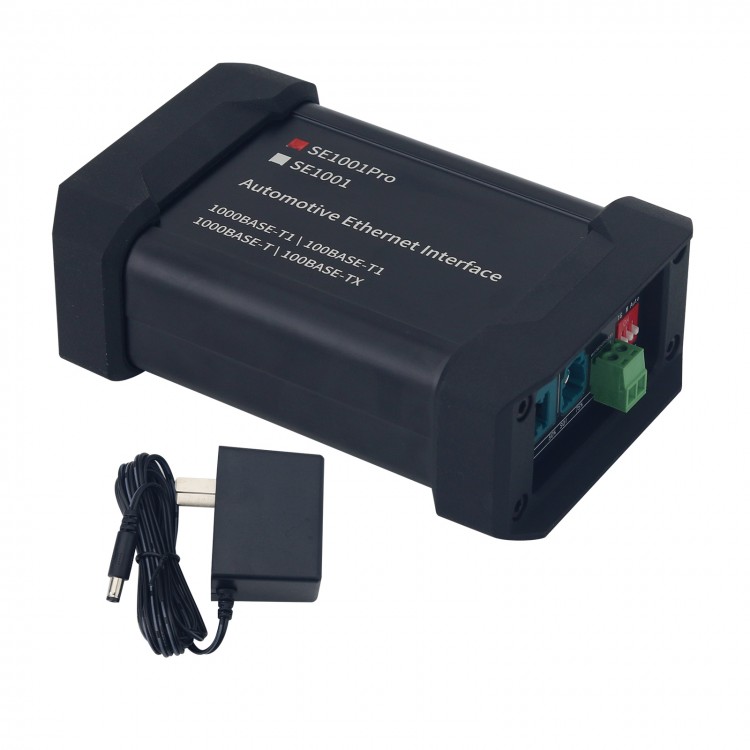

Package Included:
- 1 x SE1001 Pro
- 1 x 3.81mm 2Pin Terminal Block
- 1 x 12V 1A Power Adapter
- 1 x Type-c Data Cable

Packaging Details:
- G.W.: 1kg
