SPEEDLINK SE1002 100M Automotive Ethernet Interface Module w/ Aluminum Alloy Shell 100baseT1 to RJ45
Introduction:
SE1002: T1 and RJ45 only support 100M.
Features:
- Small size, all aluminum alloy, sandblasted surface and comfortable feel
- Marvell PHY chip is used to implement 100M BASE-T1 and RJ45 interfaces
- Provides 2 kinds of power interfaces: Type-C and DC interfaces. DC port supports 5V-32V power supply to input and is compatible with vehicle power supply, common for cars and trucks
- Software is continuously updated through Type-C port
- Working environment: -40 to 65°C
- Size: 26 x 26 x 84mm/1 x 1 x 3.3"
Interfaces:

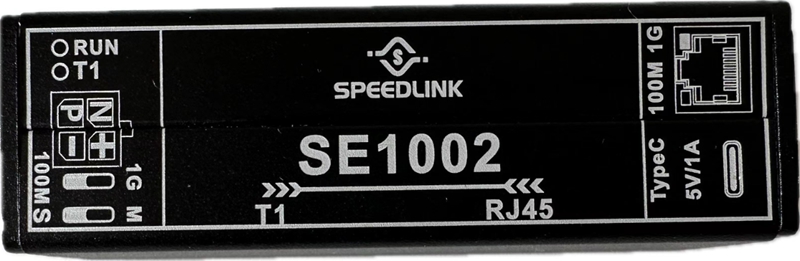

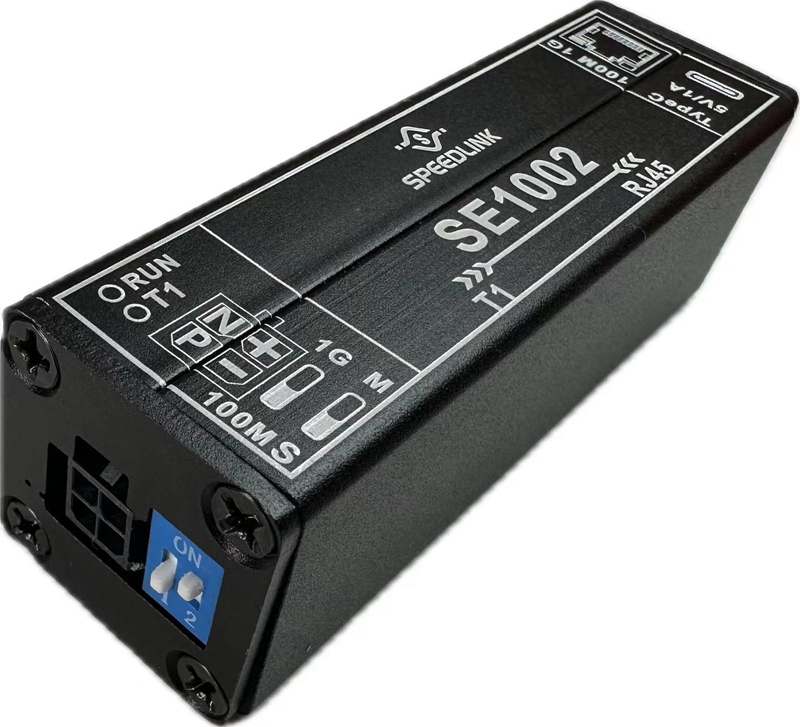

From left to right:
- RUN indicator light (red);
- Link indicator light (green, semi-circular hole);
- T1 (N and P);
- Power interface (+ and -);

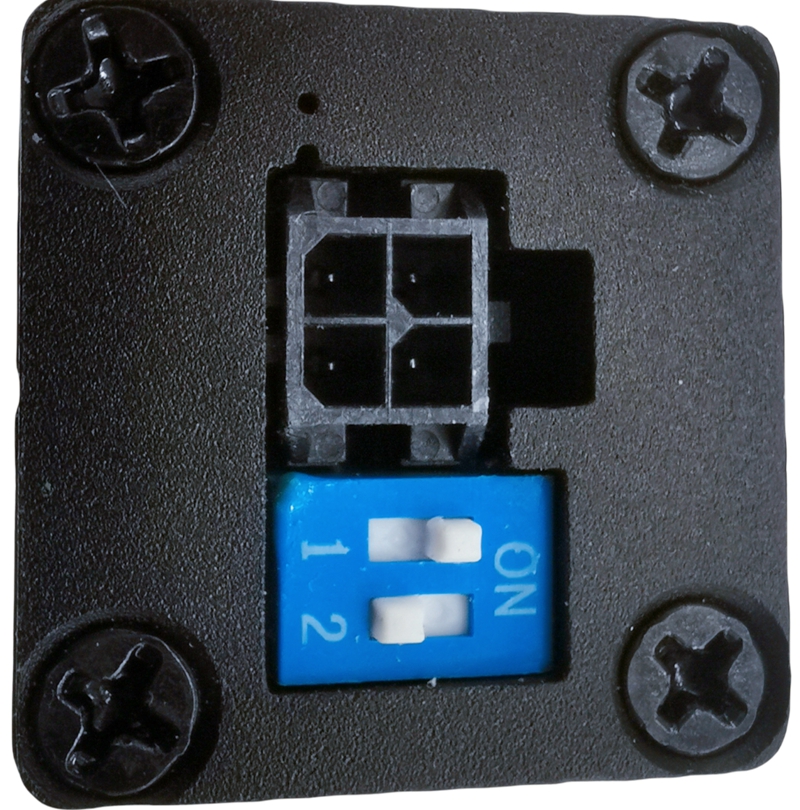

- DIP switches; the 1G 100M DIP switch is not valid for 100M products, and the rightmost DIP switch is the Master (M) and Slave (S) configurations.
Indicator Lights:
- Red indicator light: During normal operation, the Run indicator is flashing.
- Green indicator light: indicator of T1 connection and communication. There are three status:
● When it is not connected, the green light goes off
● When the connection is successful and there is no data, the green light will stays on
● When there is data communication, the green light will flash
Power Interfaces:
- DC power interface: the input range is 5~32V, less than 2W.
- Type-C power interface: 5V, less than 0.5A;
- You can choose one of the above two power interfaces.
DIP Switches:
DIP switch 1: rate selection (the DIP switch is not valid for SE1002)
- ON is 1000M (1G) mode
- OFF is 100M mode
DIP switch 2: master and slave mode selection
- ON is Master mode
- OFF is Slave mode

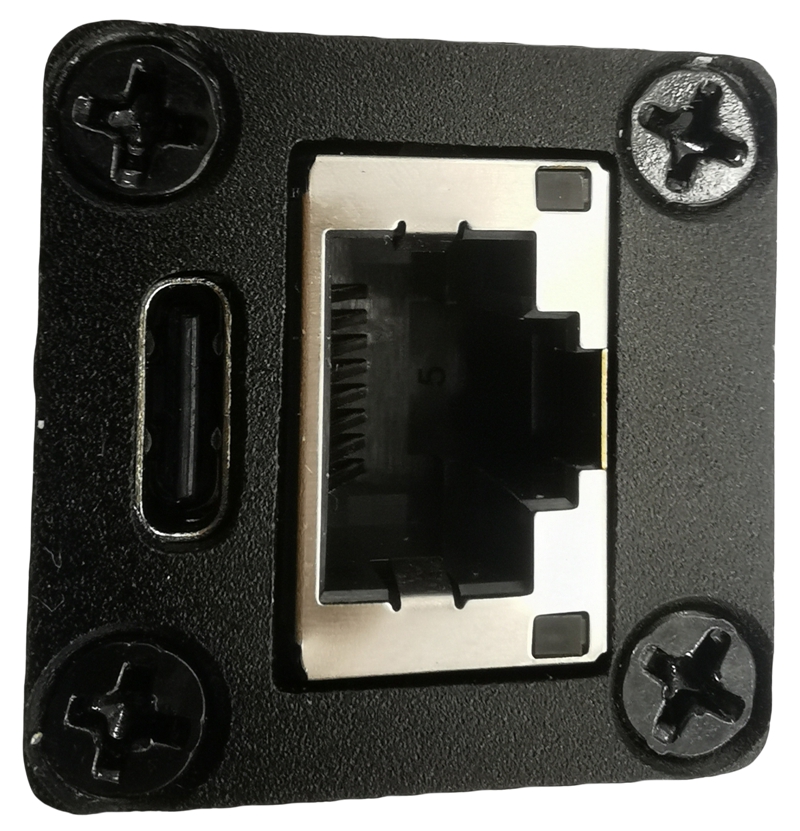

RJ45:
- RJ45 of SE1002 is fixed to 100M.
- RJ45 with indicator lights:
* Green indicator stays on: 100M mode linkUP;
* Green indicator is flashing: 100M mode Activity;
* Yellow indicator stays on: 1000M mode linkUP;
* Yellow indicator is flashing: 1000M mode Activity.

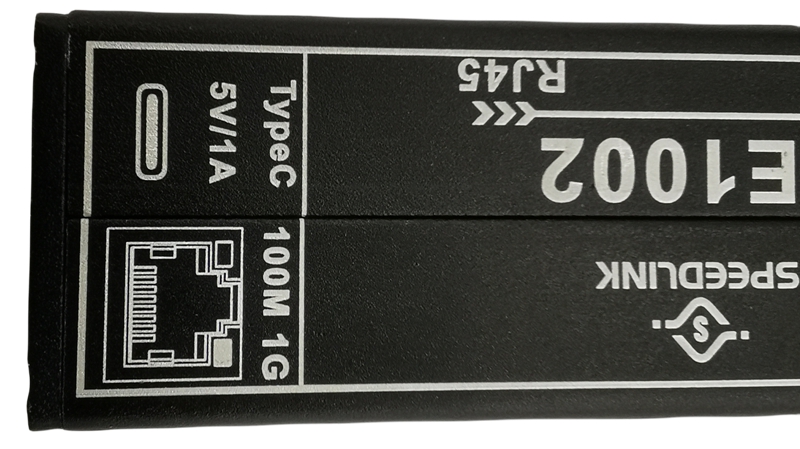

Type-C Port:
- Type-C power interface: 5V 0.5A required
Package Included:

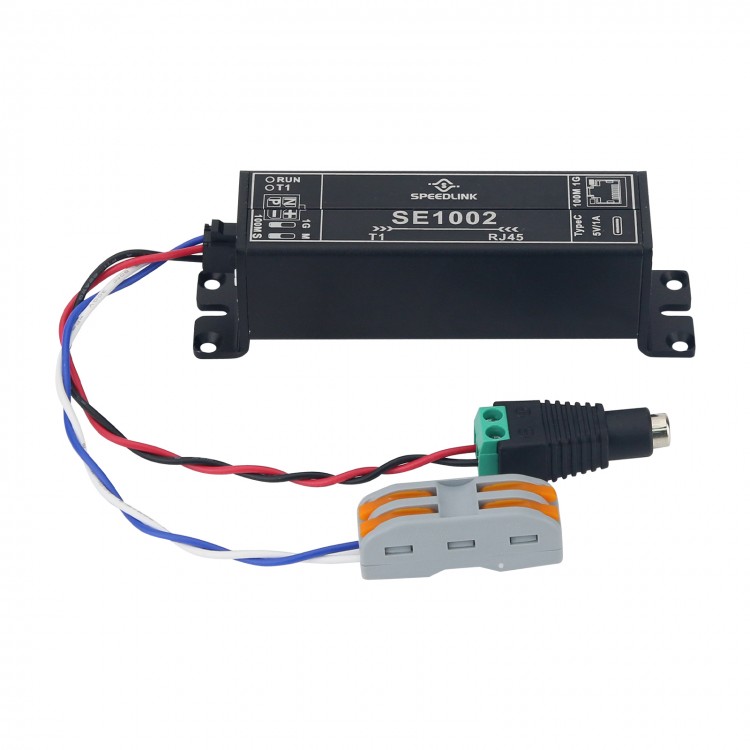

- 1 x SE1002
- 1 x 4Pin connector with 30cm/11.8" cable
- 1 x DC 12V 1A power adapter
- 1 x Type-C data cable
Packaging Details:
- G.W.: 0.6kg
