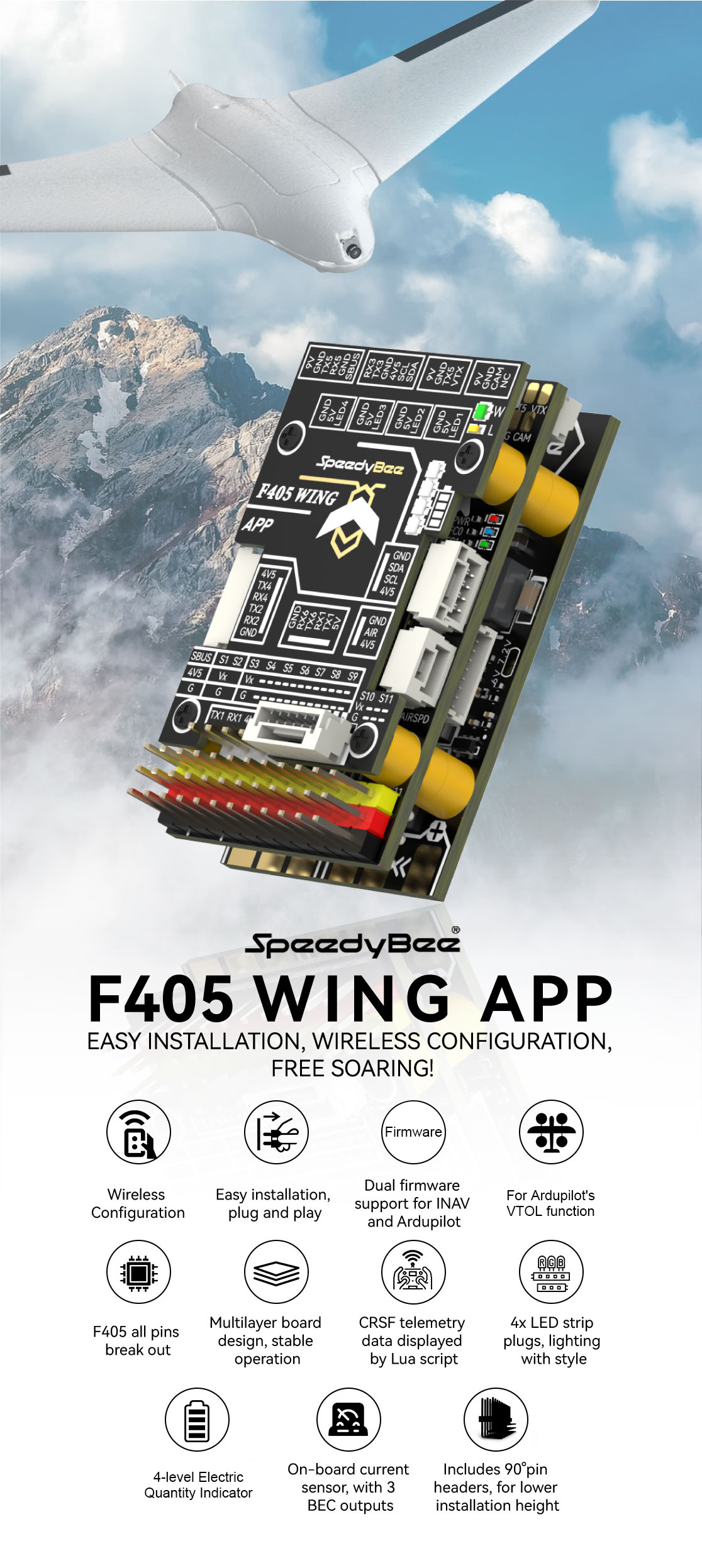

SpeedyBee F405 Wing APP Fixed Wing Drone Flight Controller Supports Vertical Takeoff and Return

SpeedyBee F405 Wing APP Fixed Wing Drone Flight Controller Supports Vertical Takeoff and Return

Read before purchasing:
- It is the accessories of RC models, not toys. Therefore, safety should come first. If you have any questions, please consult customer service or check the manual.
- Please comply with relevant laws when using this product. Flight in crowded areas is not allowed.
- About battery and charger: Please charge the battery before using. Users who do not know how to wire and set up the charger must consult customer service, because incorrect settings can lead to serious injury. When the battery leaks or is damaged, please do scrap treatment, otherwise it will easily cause fire. Our store is not responsible for safety accidents caused by improper operation by users.

Specifications:
SpeedyBee F405 WING FC Board:
- MCU: STM32F405, 168MHz and 1MB Flash
- IMU (Gyro & Accelerometer): ICM-42688-P
- Barometer: SPL006-001
- OSD Chip: AT7456E
- Blackbox: MicroSD Card Slot

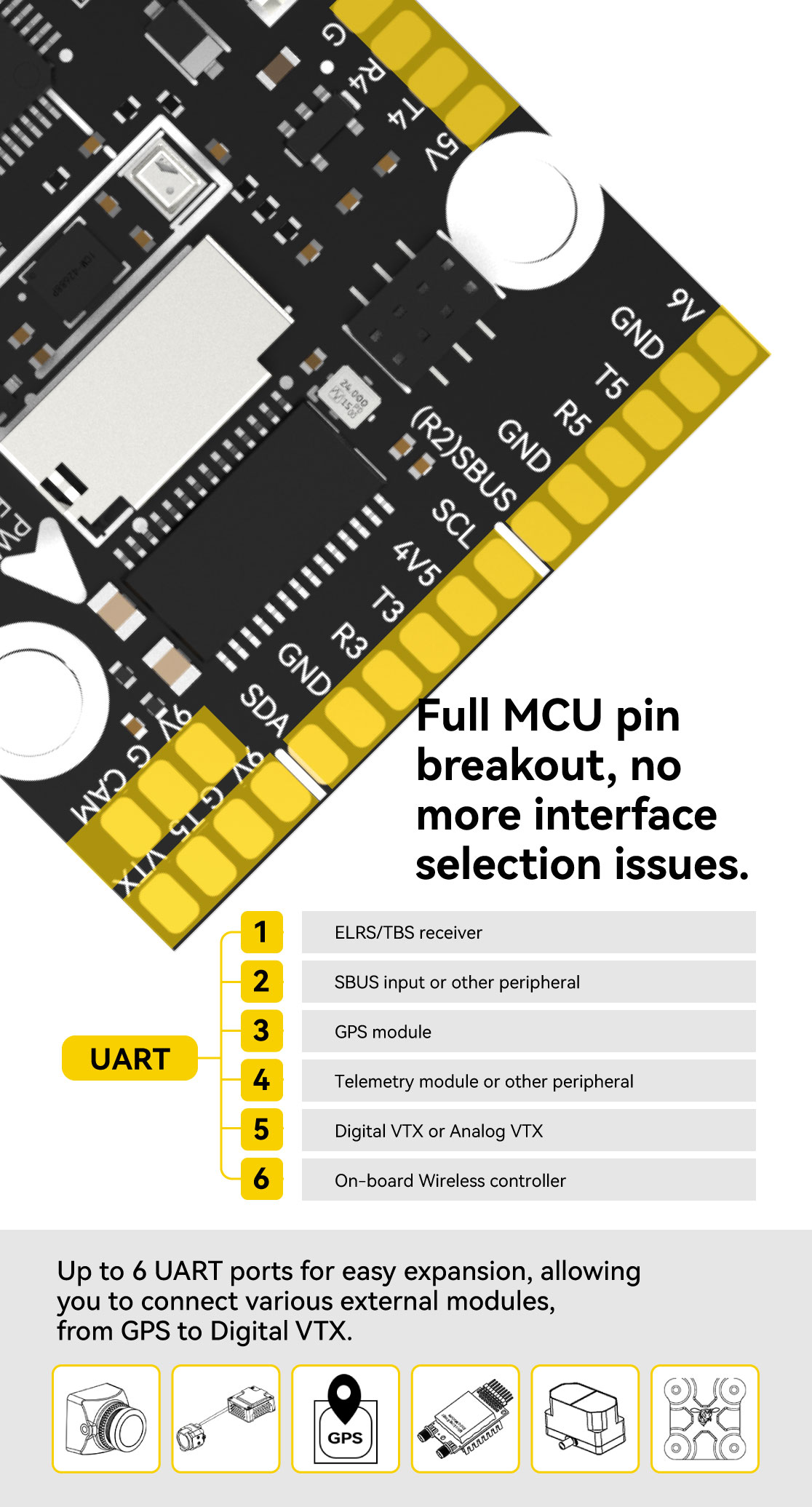

- UART: 6 sets (USART1, USART2, USART3, UART4, UART5 and UART6 (Dedicated for Wireless board Telemetry connection))
- I2C: 1x Used for magnetometer, digital airspeed sensor
- ADC: 4x (VBAT, Current, RSSI and Analog AirSpeed)

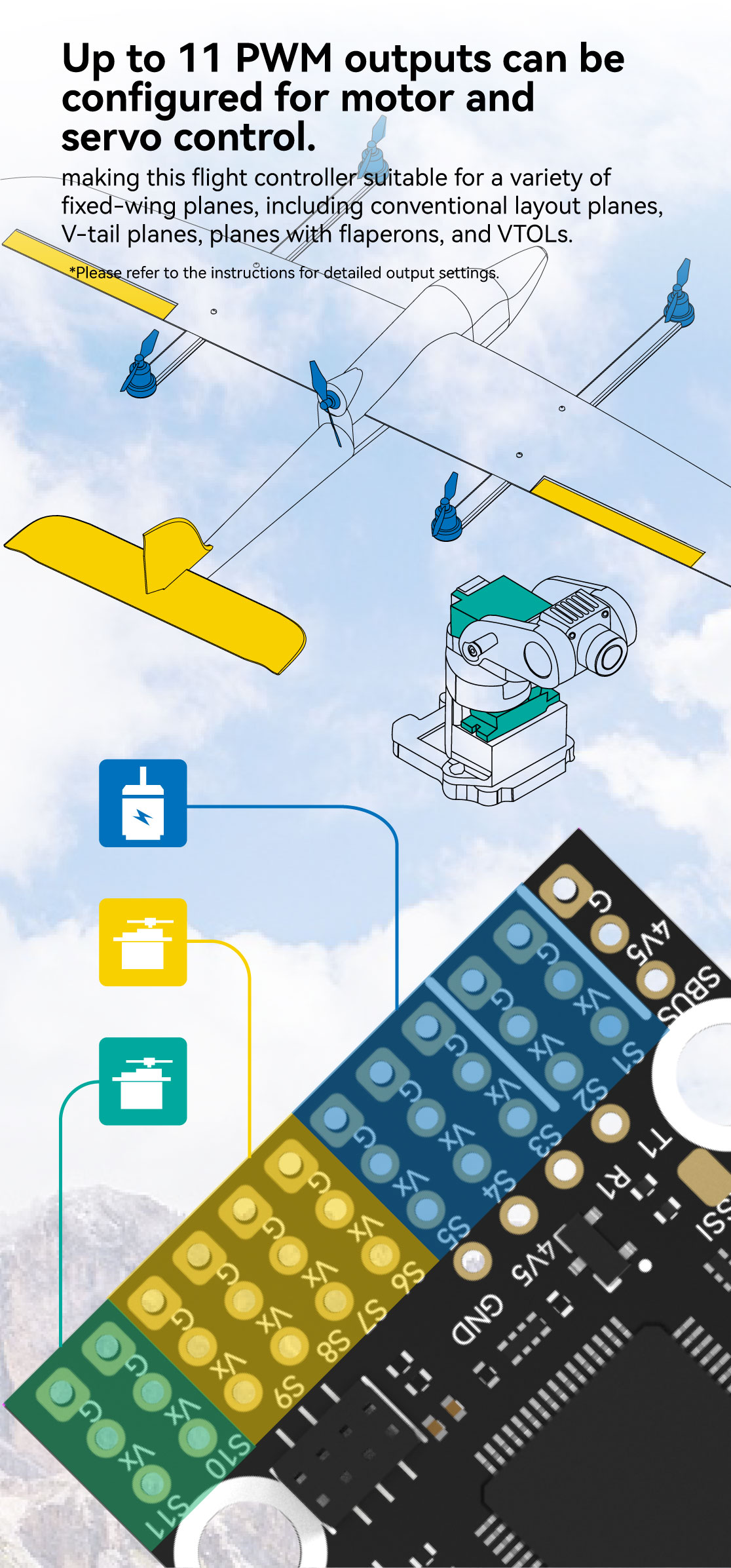

- PWM: 12x (11+1 "LED" pad)

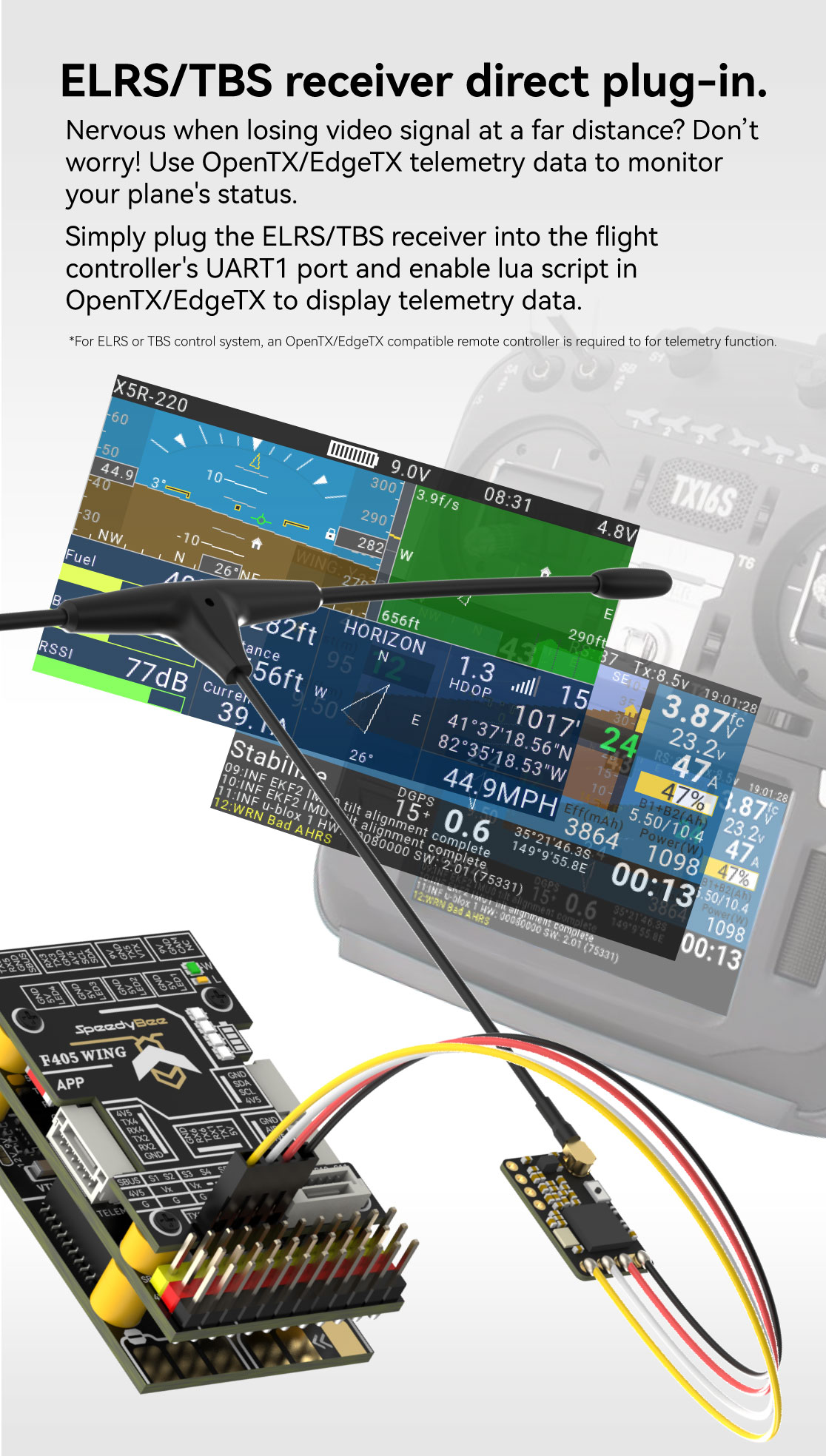

- ELRS/CRSF receiver: Supported, connected to UART1
- SBUS: Built in inverter for SBUS input (UART2-RX)
- LED: 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB
- RSSI: Supported, Named as RS.

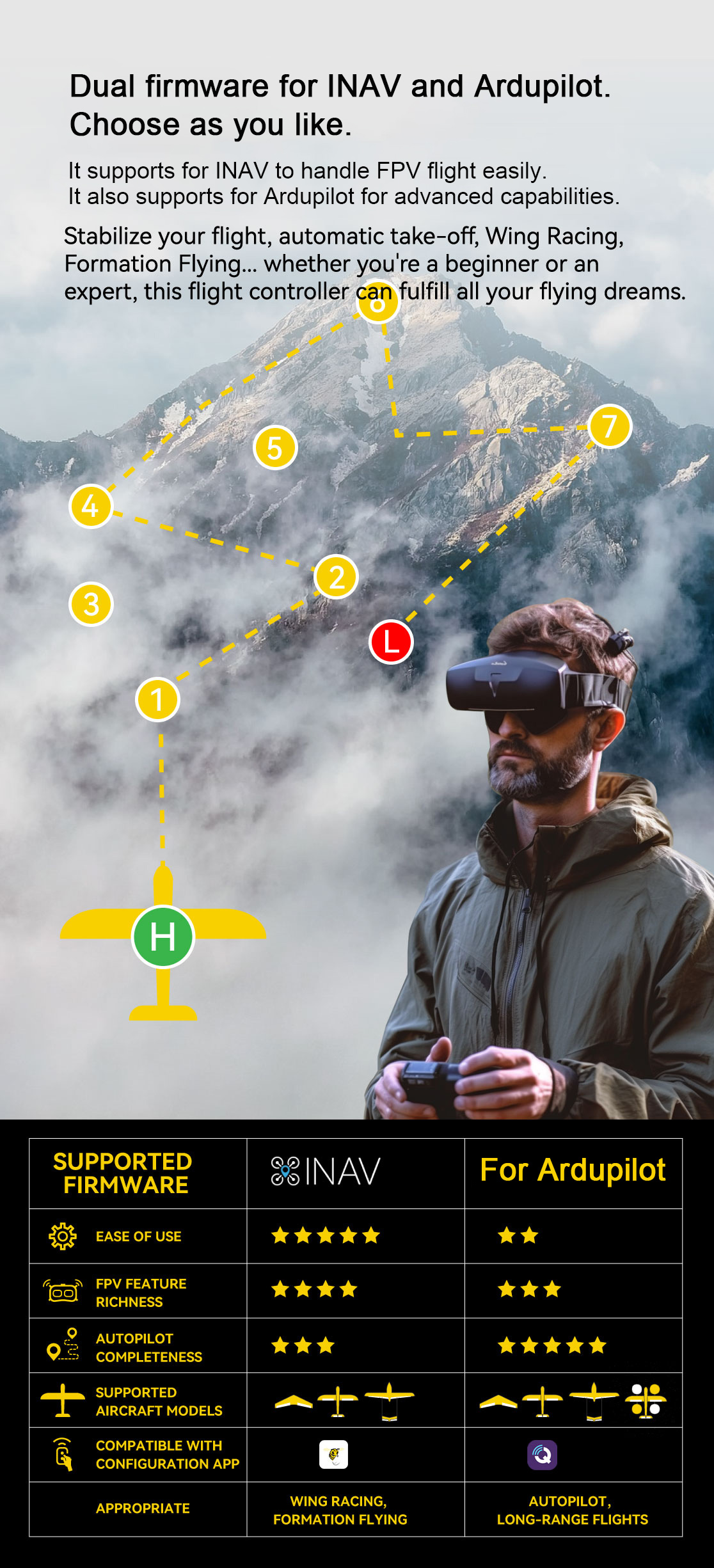

- Supported FC Firmware: for INAV: SpeedyBeeF405WING(default) and for ArduPilot: SpeedyBeeF405WING
- Weight: 8.9g

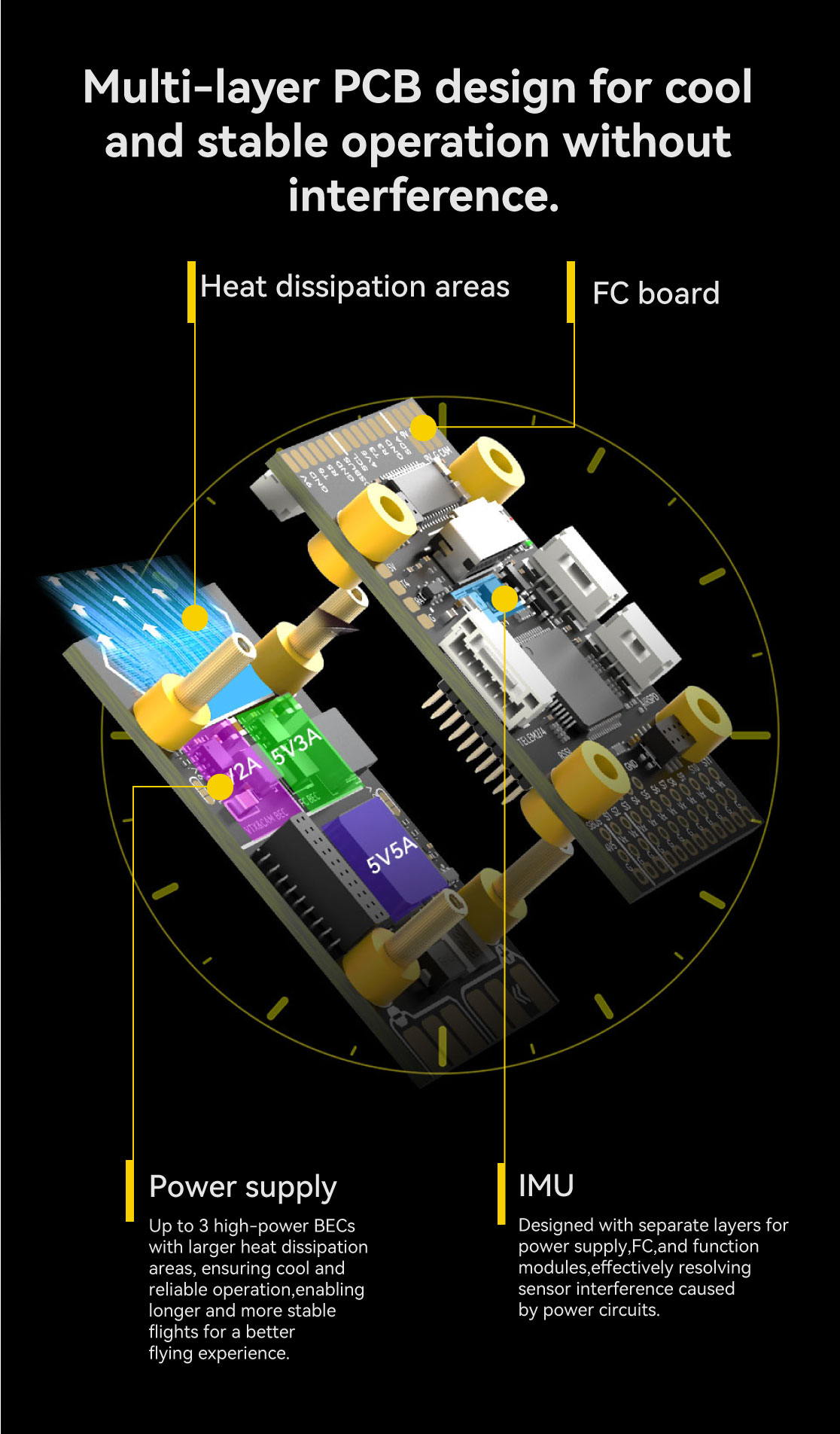

SpeedyBee F405 WING PDB Board:
- Input voltage range: 7~36V (2~6S LiPo)
- TVS Protective diode: Yes
- FC BEC output: Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip
- VTX BEC output: Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog Video Transmitter, Digital Video Transmitter and Camera
- Servo BEC output: Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos
- Weight: 11.4g

SpeedyBee F405 WING Wireless Board:

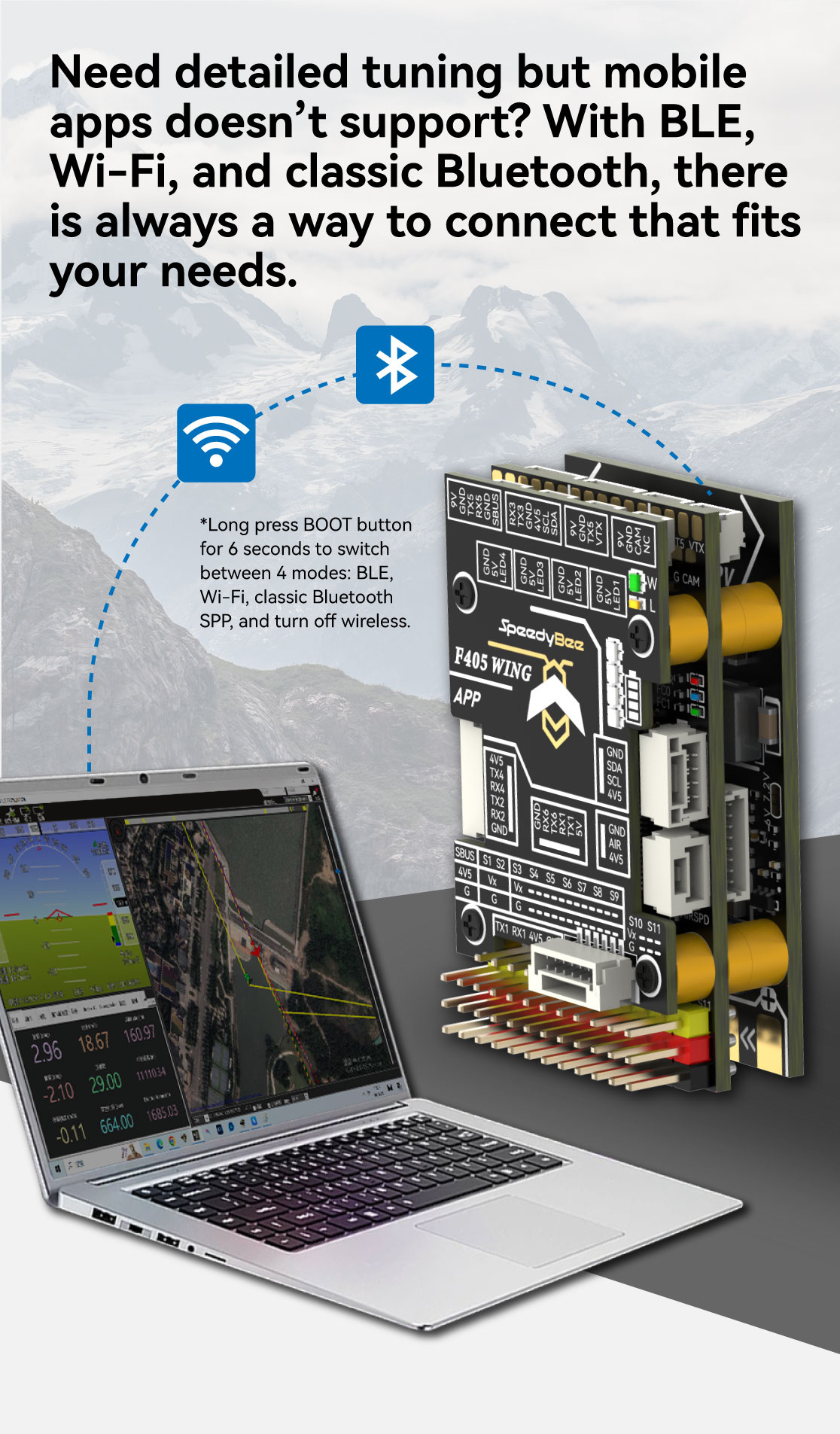

- Wireless Configuration (long press BOOT button for 6 seconds to switch modes): BLE mode, connect to Speedybee APP; Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc.; Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner
- LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes): 4x WS2812 LED strip connectors, adjustable colors and flashing modes
Max 5.2V 1.3A, supports around 70pcs 5050 WS2812 LED beads

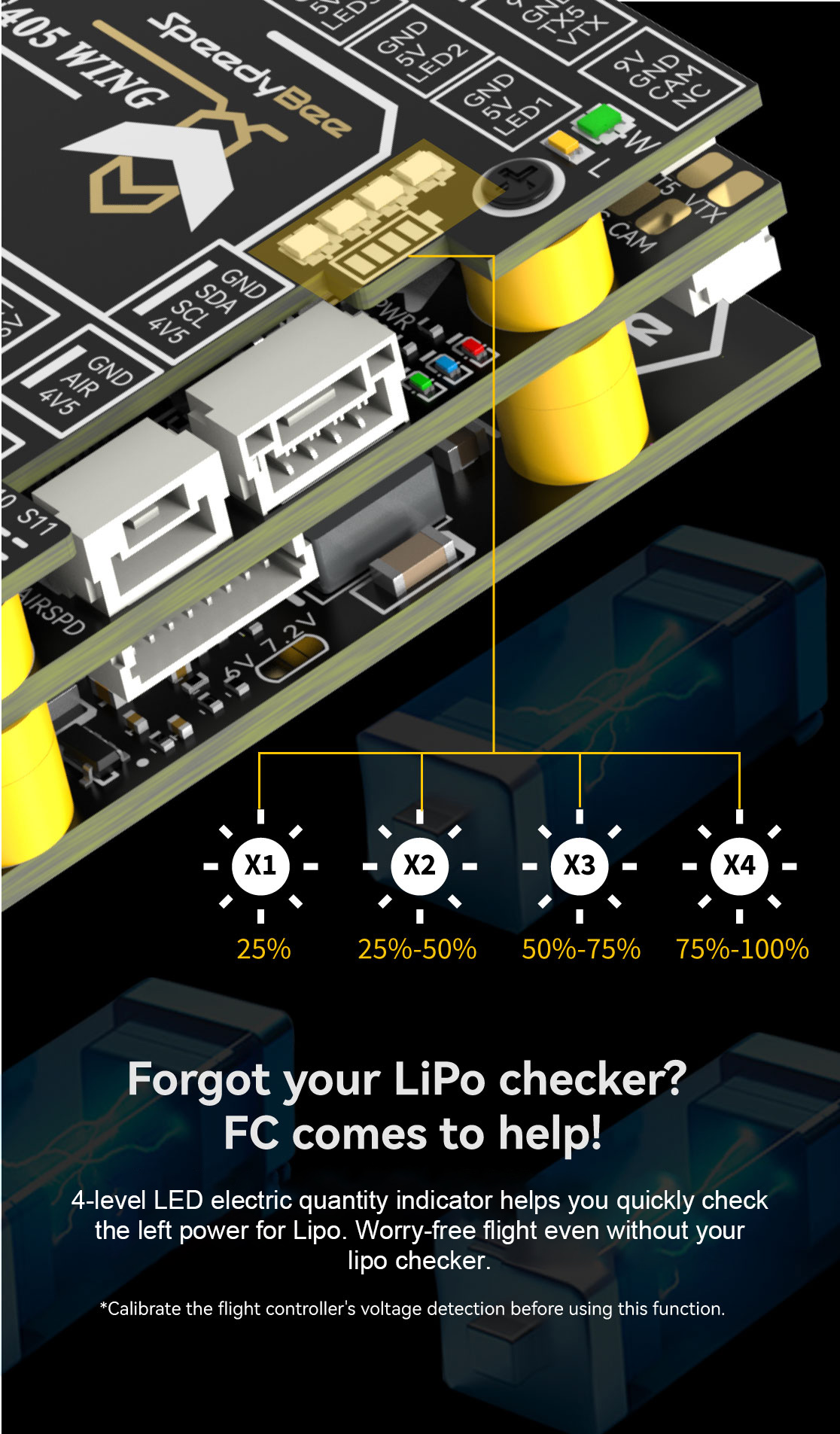

- On-board electric quantity indicator: 4x RGB indicator LED for electric quantity display by number of lights
- Weight: 4.2g

Note:
- The pin headers needs to be welded.

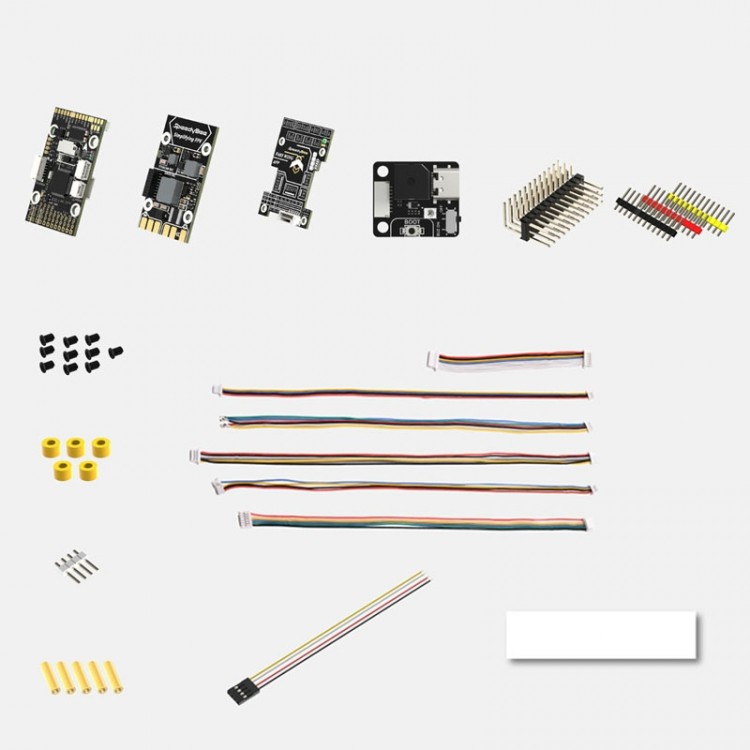

- Battery is not included in the package.
