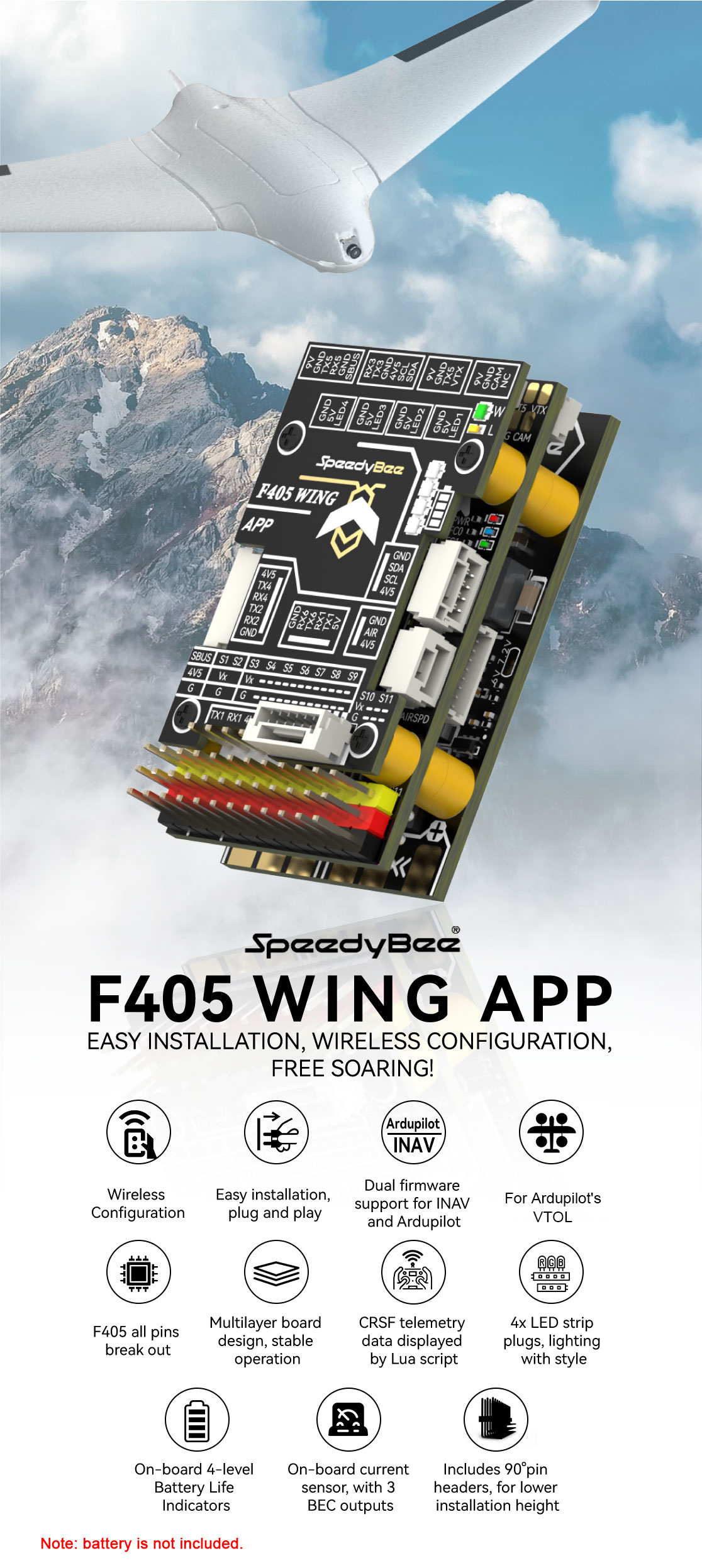

SpeedyBee F405 WING APP Flight Controller Standard Version for Fixed Wing Drone Vertical Taking off
Specifications:
SpeedyBee F405 WING FC Board:
- MCU: STM32F405, 168MHz, 1MB Flash
- IMU (Gyro & Accelerometer): ICM-42688-P
- Barometer: SPL006-001
- OSD Chip: AT7456E
- Blackbox: MicroSD Card Slot

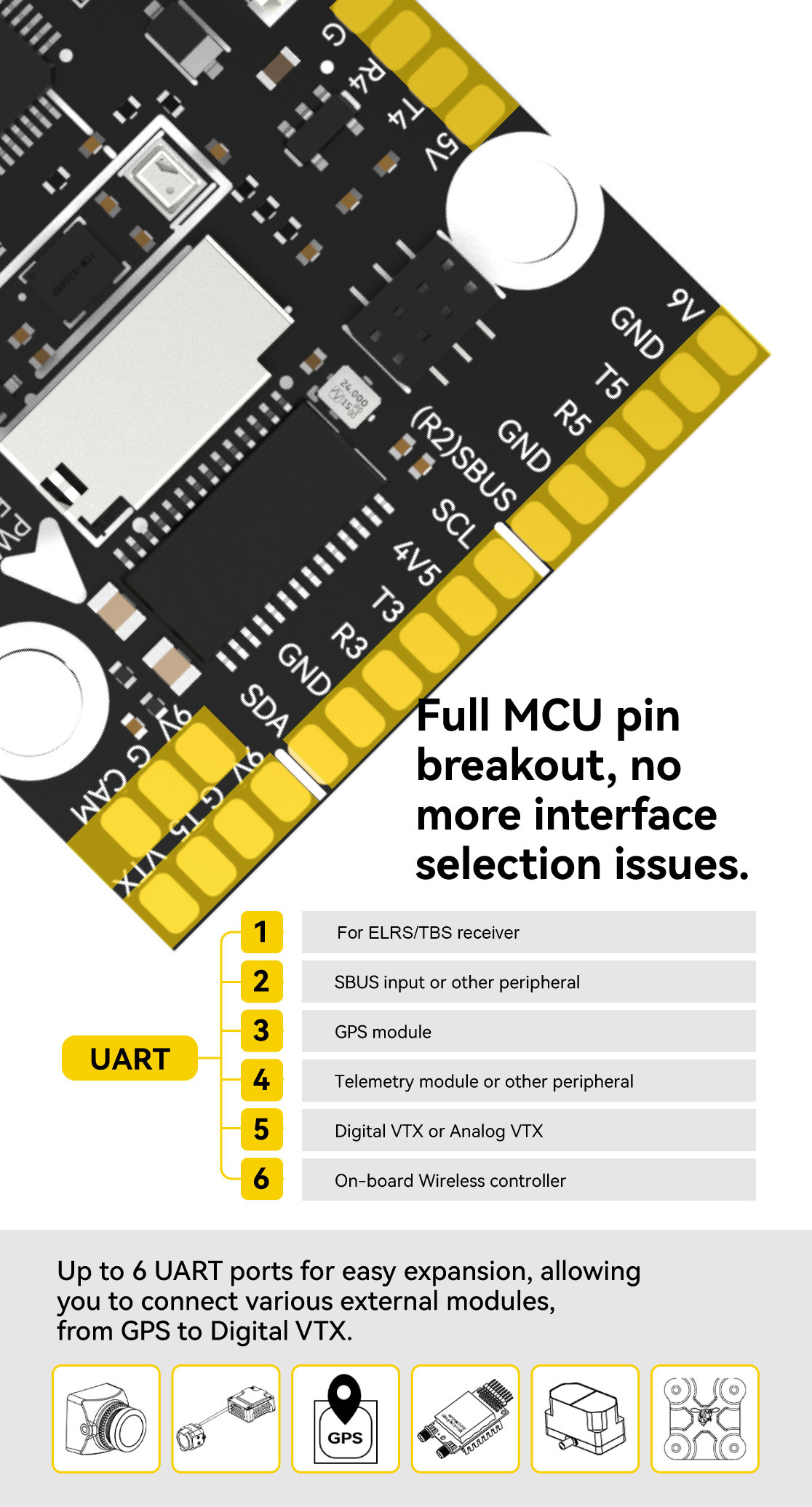

- UART: 6 sets (USART1, USART2, USART3, UART4, UART5 and UART6 (Dedicated for Wireless board Telemetry connection)
- I2C: 1x Used for magnetometer, digital airspeed sensor
- ADC: 4x (VBAT, Current, RSSI and Analog AirSpeed)

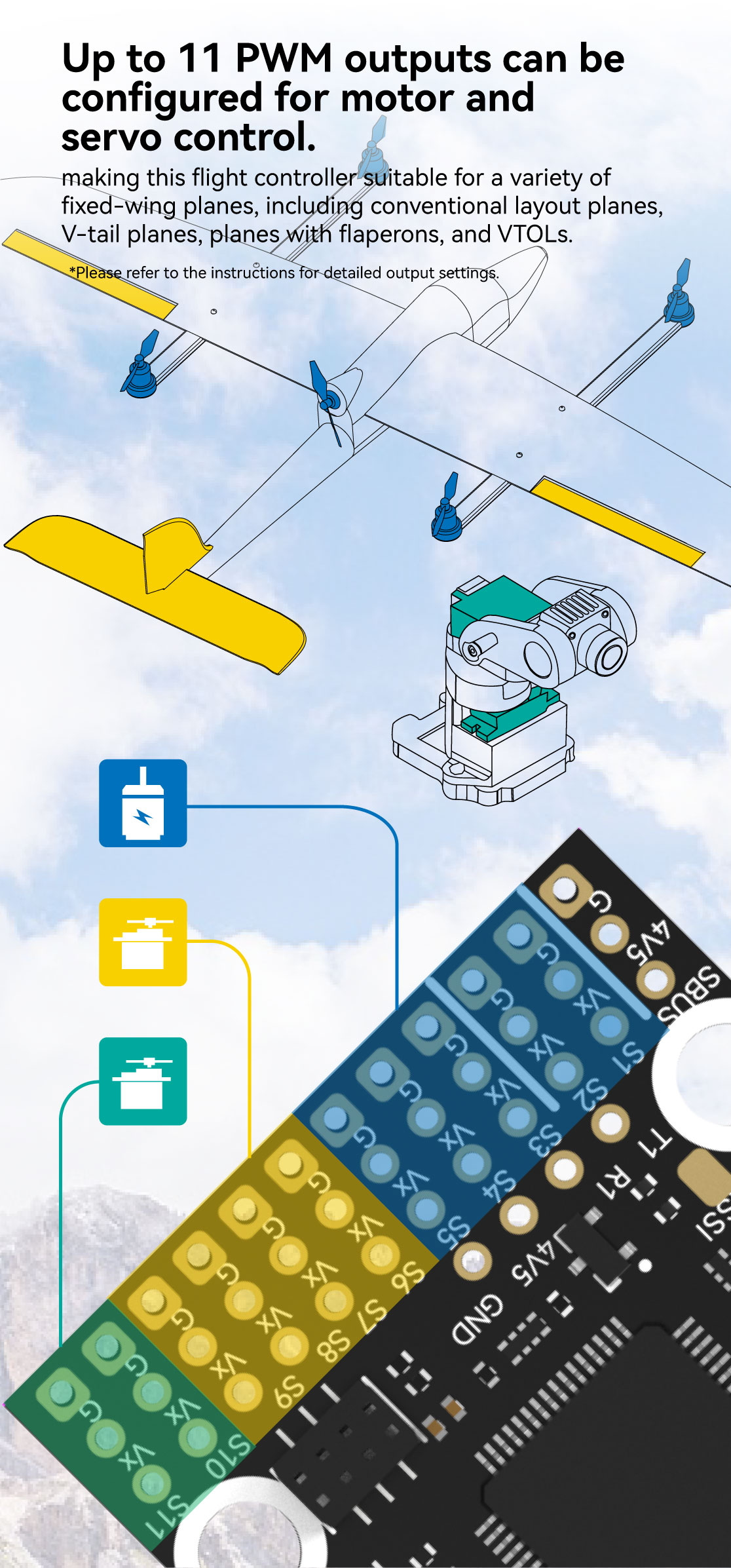

- PWM: 12x (11+1 "LED" pad)

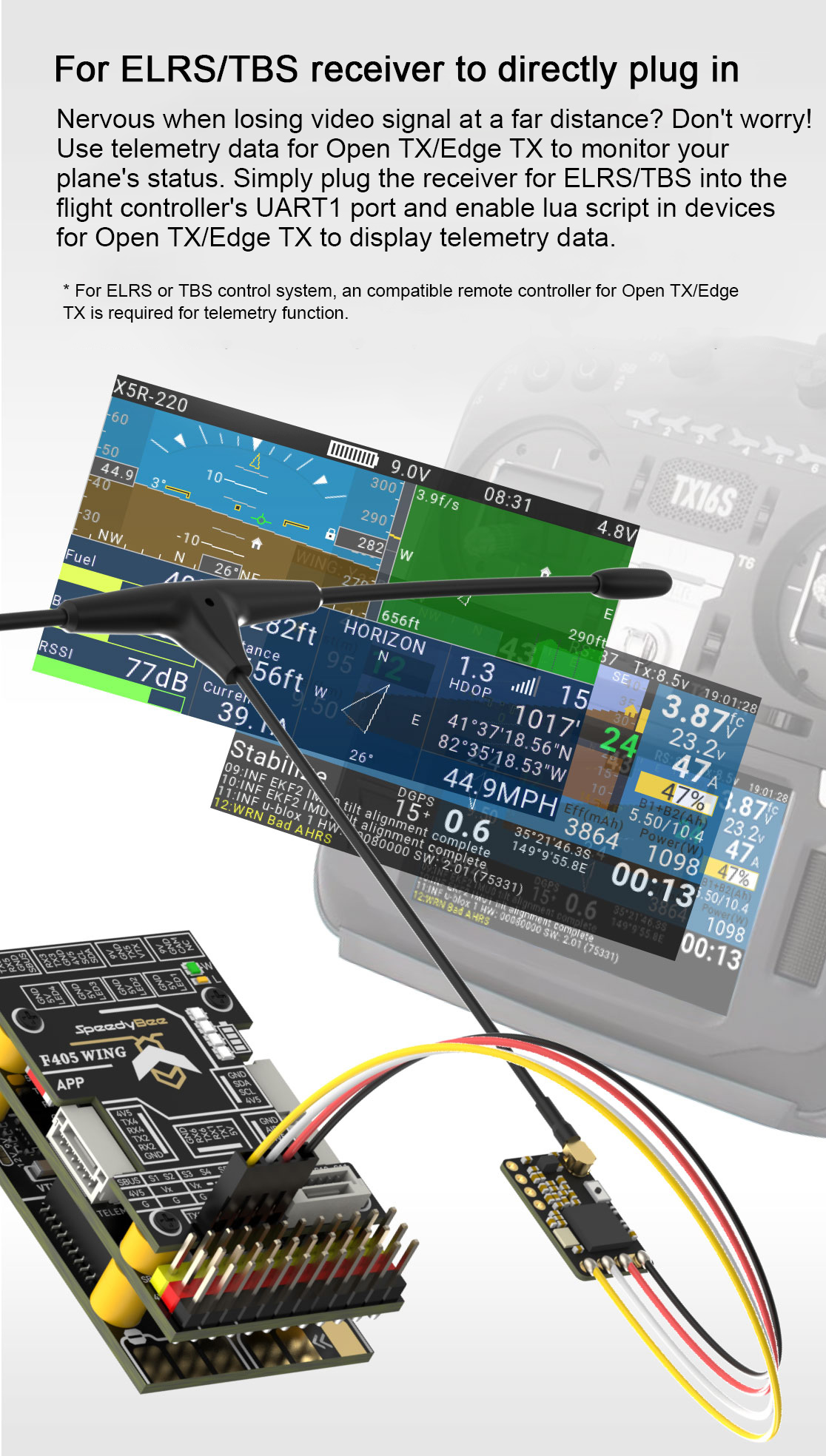

- For ELRS/CRSF receiver: Supported; connected to UART1
- SBUS: Built in inverter for SBUS input (UART2-RX)
- LED: 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red); 1x RGB
- RSSI: Supported, Named as RS.
- Supported FC Firmware: for INAV: SpeedyBeeF405WING (default); for ArduPilot: SpeedyBeeF405WING

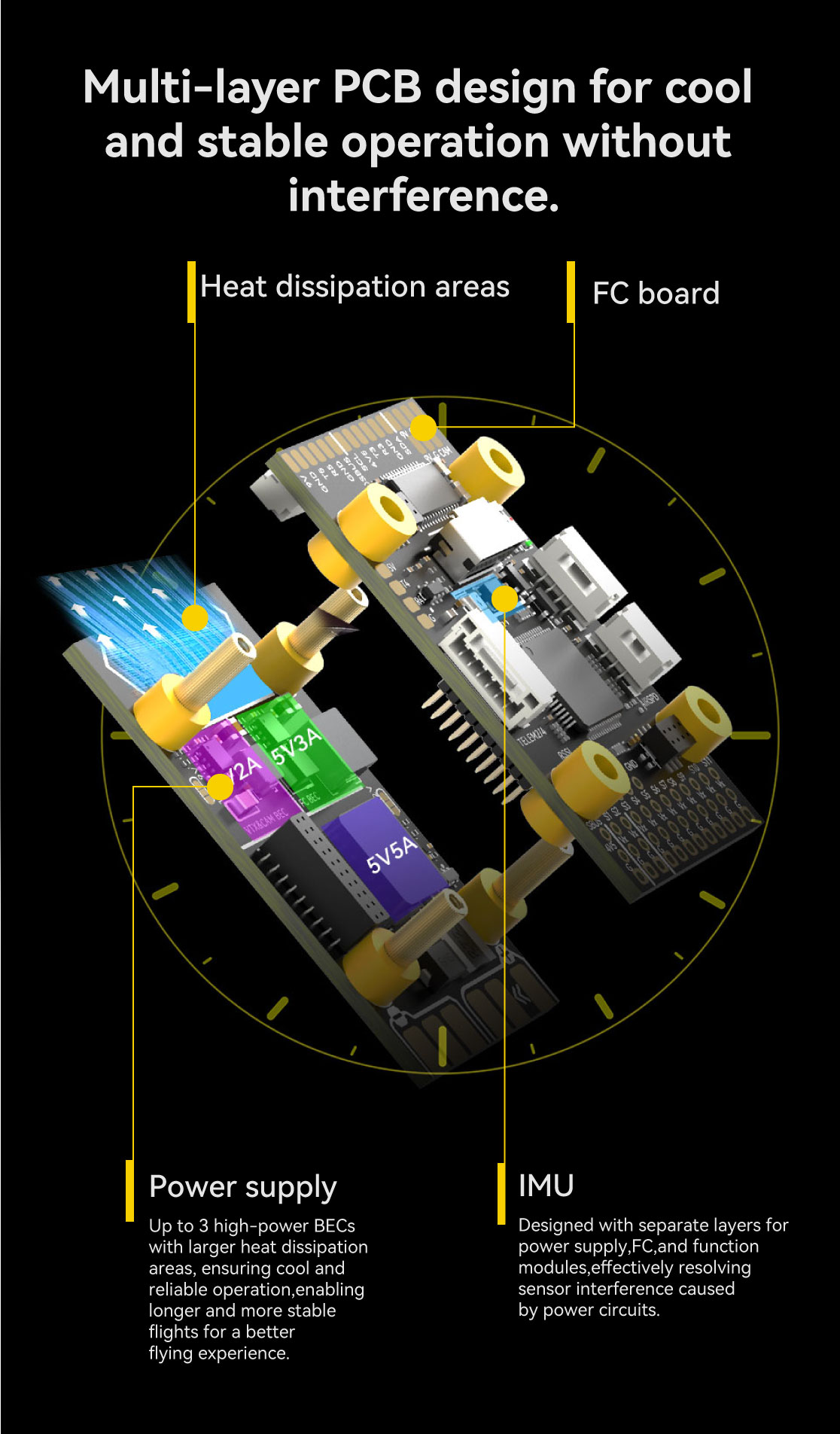

SpeedyBee F405 WING PDB Board:
- Input voltage range: 7~36V (2~6S LiPo)
- Battery Voltage Sensor: Connect to FC board VBAT, 1K:10K (Scale 1100 for iNav, - BATT_VOLT_MULT 11.0 for ArduPilot)
- Battery Current Sensor: 90A continuous, 215A peak Connect to FC board Current (Scale 195 for iNav, 50 A/V for ArduPilot)
- TVS Protective diode: Yes
- FC BEC output: Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak - Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip
- VTX BEC output: Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper. Designed for Analog Video Transmitter, Digital Video Transmitter and Camera
- Servo BEC output: Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos
SpeedyBee F405 WING Wireless Board:

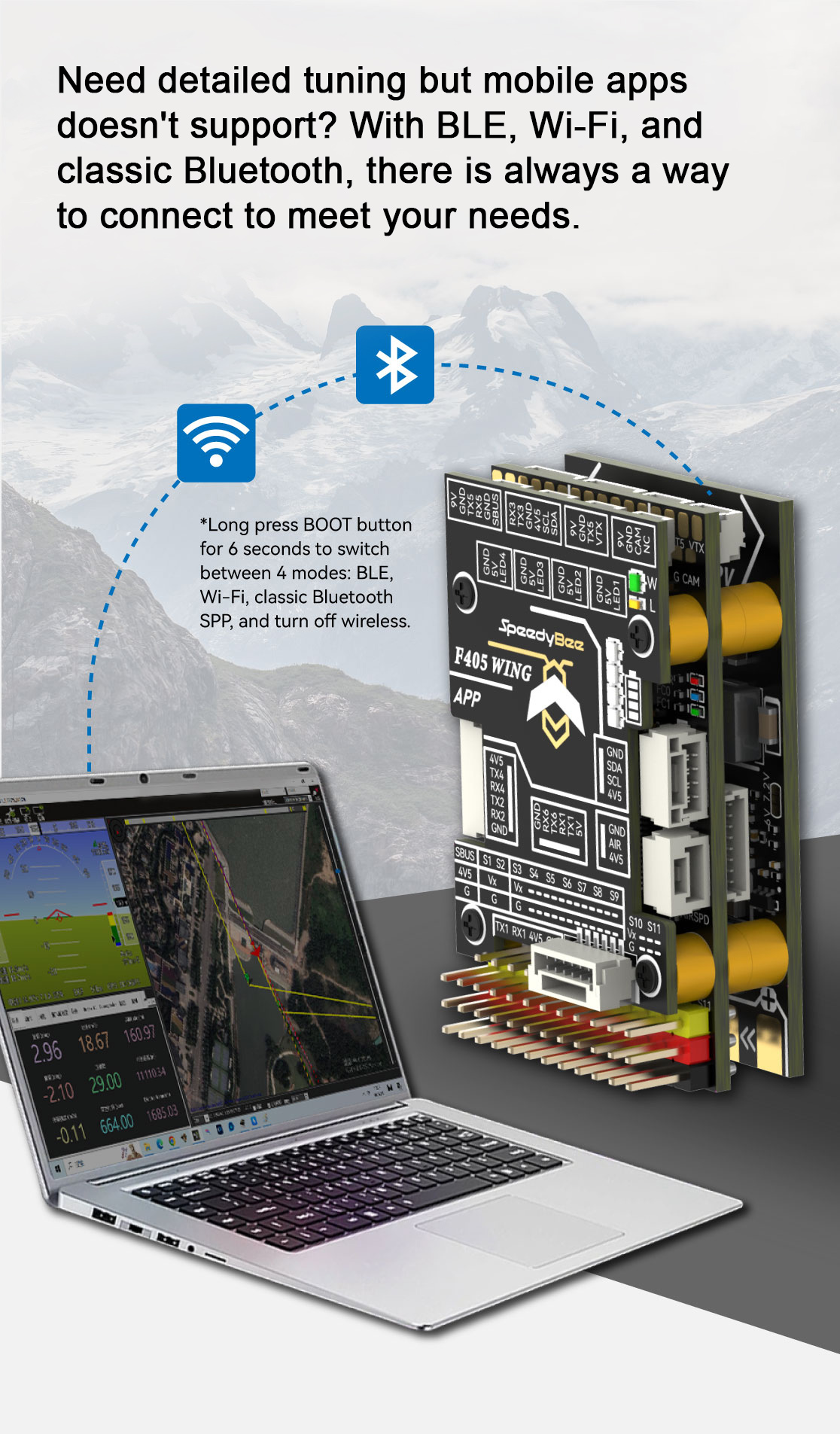

- Wireless Configuration (long press BOOT button for 6 seconds to switch modes): BLE mode, connect to Speedybee APP. Wi-Fi mode supports connection for QGroundControl APP, Speedybee APP, MissionPlanner, etc. Classic Bluetooth SPP mode supports connection for QGroundControl APP and MissionPlanner
- LED strip controller (short press BOOT button to switch effects; long press 2 seconds to switch modes): 4x WS2812 LED strip connectors, adjustable colors and flashing modes; Max 5.2V 1.3A, supports around 70pcs 5050 WS2812 LED beads

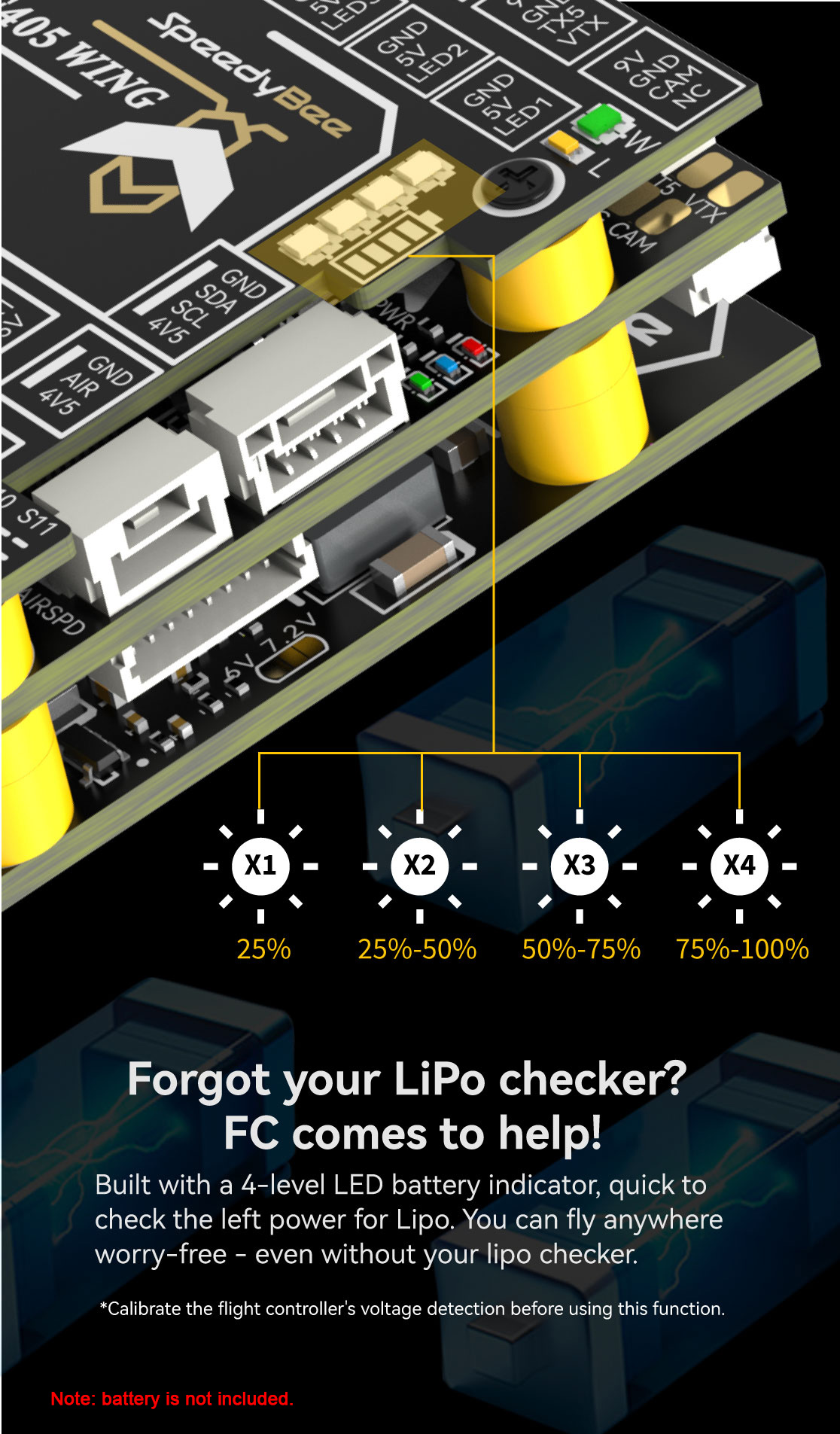

- On-board battery level indicator: 4x RGB indicator LED for battery level display by number of lights
Note:
- Welding is needed.
- Battery is not included in the package.
