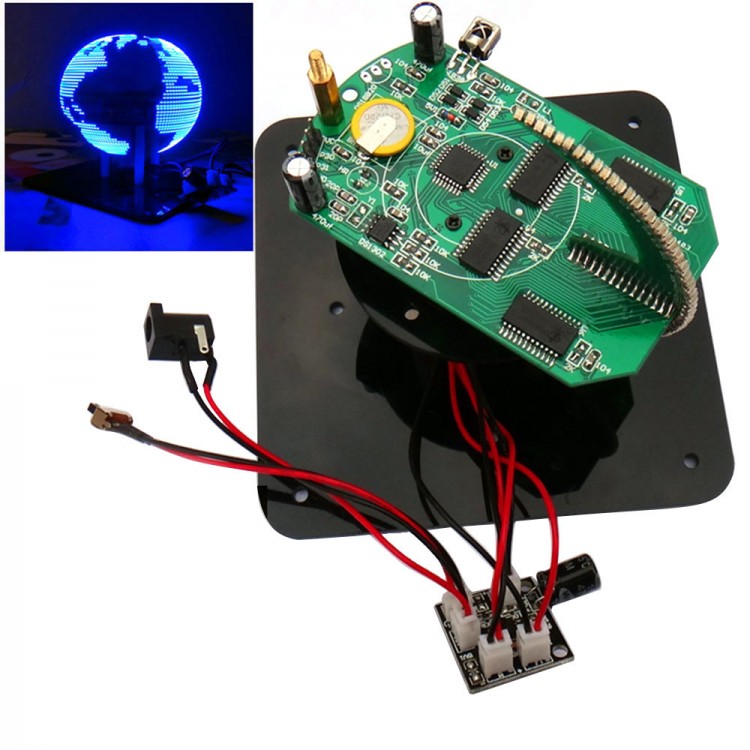

Spherical Rotary LED Kit 56 Lamp POV Rotary Clock Parts DIY Electronic Welding Rotary Lamp w/TTL Downloader for DIY Unassembled-Blue

Spherical Rotary LED Kit 56 Lamp POV Rotary Clock Parts DIY Electronic Welding Rotary Lamp w/TTL Downloader for DIY Unassembled-Blue

Description:
- This kit is spare parts, not assenmbled. SCM is already welded. And have downloaded the related letter and program.
- Other components will be welded yourself
- This is a DIY kit, you need to have some electronic knowledge and ability.
- With USB to TTL seriel port downloader.
- TTL seriel port of CH340 cannot download SCM program, can only be used to the change words
- No source program.
- Word color: Blue

Hardware parameters (tolerance 2mm):
- Rotating motherboard length: 8.1cm
- Rotation display diameter: 9.2cm
- Side panel hight: 7.5cm
- Side round monochrome 56 LED display
- Acrylic bottom box: 11 x 11 x 4.5cm (L x W x H) (excluding coil and the motor shaft)

Features:
- 2 set of text scrolling cycle (It can store 850 characters in Chinese/English): Through the remote control can stop scrolling, you can edit the text displayed by the PC software.
- Clock and date display: With backup battery, remains working after power-down, you can set the time by remote control or changing the word software calibration time.
- Image display: Can continuous scrolling display pictures, can be displayed static image alone, too! Select mode by remote control. Photos width must be 64 pixel , the length can be 10-200 pixels .
- Memory mode: It will stay the mode when you shutdown (Note: Can only be one of the above three kinds of modes).

Specification:
- Motor: 370
- Power supply: 5V external power / USB 5V or you can use DIY battery, battery is not included. (4*1.5V dry battery series connection or 2*3.7V lithium battery series connection)

Package includes:
- 1 x DIY Spherical Rotating LED Kit
