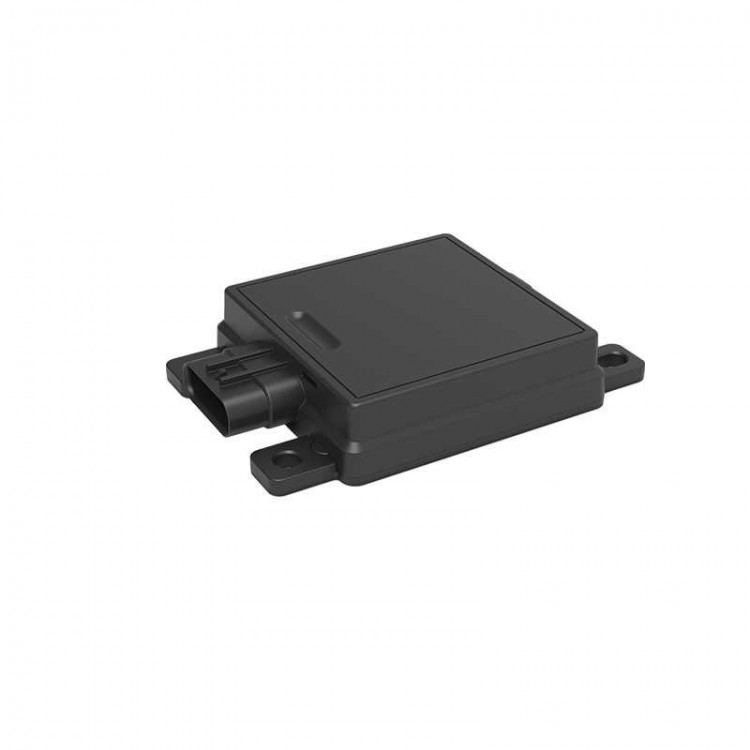

SR75 Engineering Vehicle Robot 4D Point Cloud Imaging Millimeter Wave Radar Module 40-Meter Raging with CAN Box + Power Adapter

SR75 Engineering Vehicle Robot 4D Point Cloud Imaging Millimeter Wave Radar Module 40-Meter Raging with CAN Box + Power Adapter

Suitable for 0~60km automatic driving
- It can be used in safe assisted driving of low-speed special vehicles, agricultural machinery, sweepers, driving school buses, airport shuttles, robots, etc.

Innovation height: achieving high detection
- Innovative VAR (virtual Aperture Radar) technology: realizes 256-point to 1500-point cloud imaging, and 4D detection can identify target height information.

150° wide field of view 3D area setting
- SR75 has a detection distance of 40m, a detection angle of 150°, adaptive waveform dynamic adjustment, three-dimensional defense zone setting, and multi-dimensional sensitivity adjustment.

Low power consumption, small size, easy to integrate
- The power consumption is 2.5W, the size is compact 105.2x72x19.5mm, and the universal external communication interface CAN is convenient for integration with the host computer or other ADAS modules.

Superior performance and durability
- SR75 This product uses multi-transmit and multi-receive antennas with high sensitivity and stable performance.
- All-weather, all-day working characteristics, suitable for harsh environments such as rain, snow, fog, dust, etc.

Specification:
- Category: 77GHz Radar Sensor
- Working voltage: 9 ~ 24V DC
- Product model: SR75
- Working principle: millimeter wave radar sensor
- Weight: 112g
- Dimensions (L x W x H): 105.2 x 72 x 19.5mm
- Transmission frequency: 76 ~ 77GHz
- Modulation method: FMCW
- Ranging range: 0.10 ~ 40m
- Distance measurement accuracy: ±0.05m
- Angle measurement range: 150°
- Speed range: ±18m/s (- means far away from the target, + means close to the target)
- Speed accuracy: ±0.12m/s
- Cycle period: 100ms
- Pitch beam: 30°
- Azimuth beam: 120°
- Power supply: 9 ~ 24V DC
- Power consumption: 2.5W
- Working temperature: -40 ~ 70°C
- Protection level: IP67

Package Included:
- 1 x Radar Module
- 1 x CAN Box
- 1 x Power Adapter
