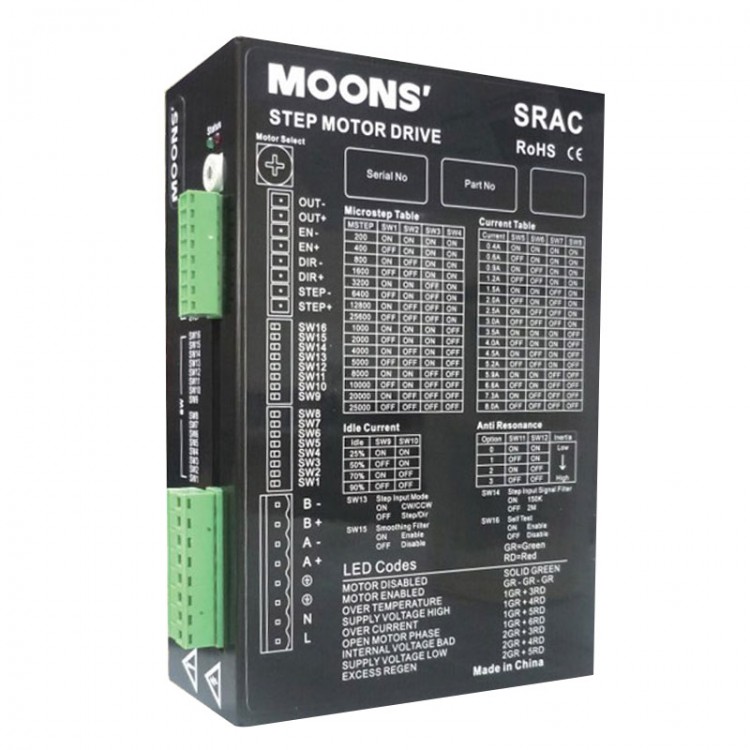

SRAC8 AC Step Motor Drive 2 Phase Controller for CNC Router Laser Engraving Machine

Availability: In stock, usually dispatched in 1 business day

  • Price:$192.93
  • Price in reward points: 1929 Reward Points: 19
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $189.07 $185.21 $179.42 $171.71 Contact US
Quantity:

SRAC8 AC Step Motor Drive 2 Phase Controller for CNC Router Laser Engraving Machine

Description:

- SRAC8 2-phase stepper motor drive is based on PID current control algorithm.
- 16 microstep, 8 kinds of current for option.
- With over voltage, under voltage and phase current over current protection.
- Input and output control signal with photoelectric isolation.

Features:
- Input voltage: 80-265VAC
- Output phase current: SRAC8: 8.0A(Peak)

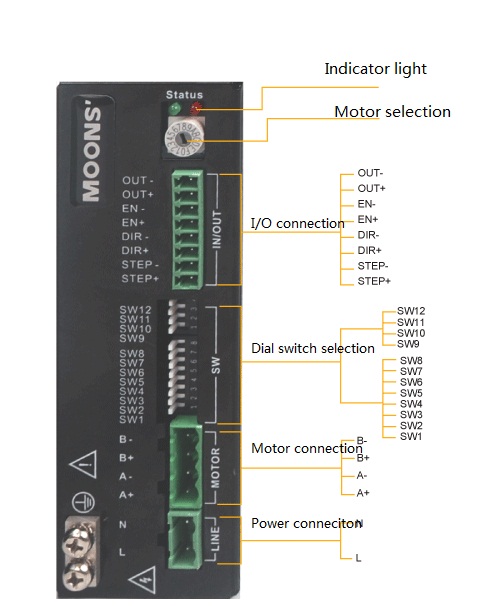

- 3* Digital signal input port: Pulse/direction/enable signal,5-24VDC, photoelectric isolation
- Dial switch selection, 16 microstep: 0.6A, 0.8A, 1.0A, 1.2A, 1.6A, 1.8A, 2.0A, 2.5A.
- The parameter of the motor is selected by the knob switch, and the load inertia of the switch is selected to match the current control algorithm to optimize the performance of the motor
- Switch select input pulse mode, pulse / direction or double pulse
- Dial switch to select the direction of the pulse input filter 150KHz or 2MHz
- Dial switch to select whether to enable internal subdivision function
- Automatic power down function: 50%, or 90%, dial switch selection
- 1* digital output: Error signal output
- Self check function
- Protection: over voltage, under voltage, over temperature, over current

Package Contents:
- 1 x AC Stepper Motor Drive
