SRT6200 Portable Surface Roughness Digital Meter Tester Gauge Ra Rz

SRT6200 Portable Surface Roughness Digital Meter Tester Gauge Ra Rz

Description:
- Using the built-in Diamond pin probe, this multi-parameter tester measures 2 parameters (Ra & Rz). It has 4 wave filtering methods (RC, PC-RC,GAUSS & D-P). In addition, said parameters can be downloaded directly to PC as well via the optional RS-232 CD software & cable and passed ISO, DIN, ANSI and JIS international standards. This terster is widely used in production site to measure surface roughness of various machinery-processed parts, calculate corresponding parameters and clearly display all measurement parameters in Metric or Imperial.
- Measurement can be done by placing the sensor on the surface then uniformly slide the highly sensitive sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates then outputs the results clearly on LCD.


Features
- Multiple parameter measurement: Ra, Rz
- Four wave filtering methods : RC, PC-RC, GAUSS and D-P
-  Highly sophisticated inductance sensor
- Built-in lithium ion rechargeable battery and control circuit with high capacity
- The sensor sliding along the surface by driving the mechanism
- Manual and Auto switch off
- Metric / Imperial Conversion
- Exclusive DSP processes to output measurement results on LCD
- Circuit with high capacity
- Easy operation menu and large LCD display
- Option to communicate with PC computer for statistics, printing and analyzing via the optional cable and software for RS232C interface (optional, not included in the set)
- Small in size, light in weight and easy to use
-  Compatible with four international standards ISO, DIN, ANSI and JIS


Specification
- Multiple parameter measurement: Ra, Rz
- Filtering methods: RC, PC-RC, GAUSS and D-P
- Measuring Range
        Ra: 0.05-10.00 µm / 1.000-400.0 µinch
        Rz: 0.020-100.0 µm / 0.780-4000 µinch
 Accuracy:
- Fluctuation of display value:
-  Sensor
- Test Principle: Inductance type
- Material of Probe Pin: Diamond
-  Radius of Probe Pin: 10µm
- Measurement Force of Probe: 16mN(1.6gf)
-  Vertical Radius of Guiding Head: 48mm
-  Probe Angle: 90°
- Maximum driving stroke: 17.5mm/0.7inch
- Cutoff Length: 0.25mm / 0.8mm / 2.5mm optional
- Evaluation length: 1-5 cut-off optional
    Driving speed
        sampling length = 0.25mm Vt=0.135mm/s
        sampling length = 0.8mm Vt=0.5mm/s
        sampling length = 2.5mm Vt=1mm/s
        returning Vt=1mm/s
    Resolution:
        0.001µm if reading
        0.01µm if 10µm =reading
        0.1µm if reading =100µm
- Data output: communicate with PC through RS232C interface (optional, not included in set)
- Metric / Imperial Conversion
- Display: 4 digits, 10mm LCD with blue backlight
- Power Li-ion battery: rechargeable
- Operating conditions
        Temperature: 0~50°C
        Humidity:
- Auto & Manual switch off
- Size: 140 x 57 x 48mm (5.5 x 2.2 x 1.9 inch)
- Weight: about 420g

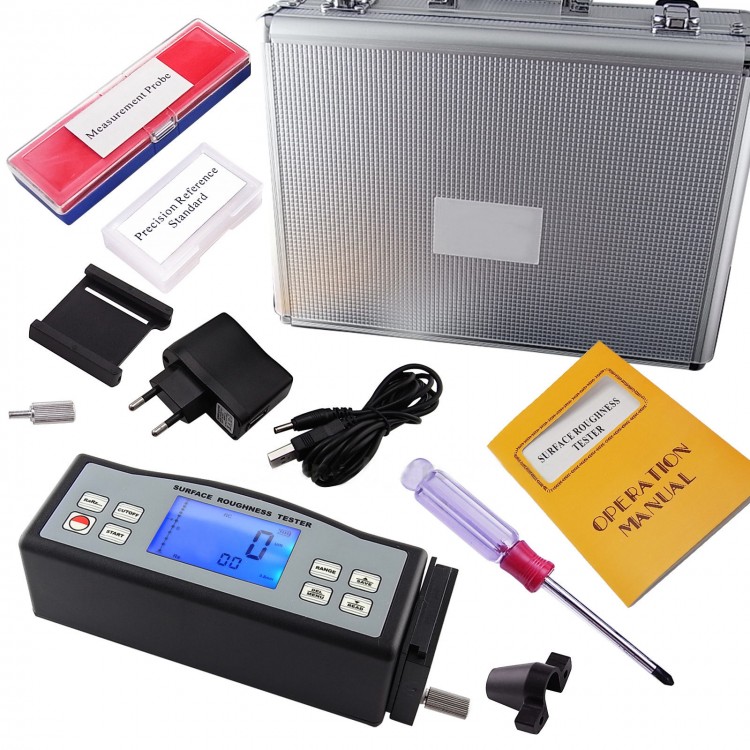

Set Includes



    1 x Multi-parameter Tester (main unit)
    1 x Standard Sensor
    1 x Standard Sample Plate
    1 x Screwdriver
    1 x Adjustable Leg
    1 x Sensor Protector
    1 x English Instruction Manual
    1 x Carrying Case
    1 x Power Adapter (choose 1 from these available Adapter for US, UK, Australia and Europe system)



    OPTIONAL:
        RS-232 Software & Cable
        Just add US $38.90 or GBP 23.90 or AU $44.90 or EUR 28,90 to your order to get the RS232 CD Software and Cable

    UPC701936211248
    BrandLandtek
    MPNSRT6200
    TypeDigital Surface Roughness Meter
    ModelSRT6200
    ParametersRa, Rz
    Sub-TypeSurface Roughness Meter
    Multiple parameter measurementRa, Rz
    Filtering methodsRC, PC-RC, GAUSS and D-P
    ISO, DIN, ANSI and JISCompatible with four int'l. standards
    Accuracy<=10%
    Fluctuation of display value<= 6%
    Maximum driving stroke17.5mm/0.7inch
    Cutoff Length0.25mm / 0.8mm / 2.5mm optional
    Evaluation length1-5 cut-off optional
    YesHighly sophisticated inductance sensor
