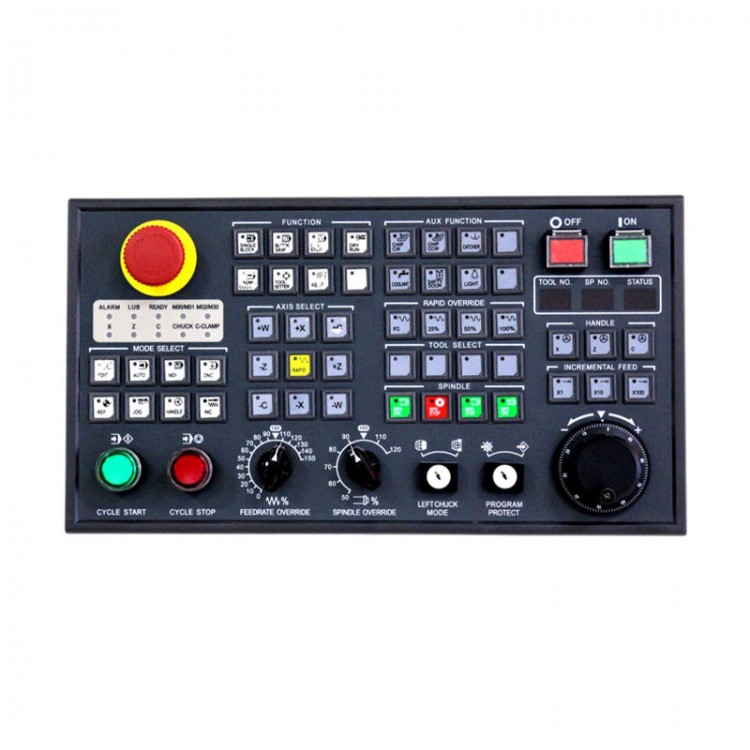

SS-BZ-TC Machining Center CNC Control Panel Lathe Control Panel For FANUC and Mitsubishi Systems
Features:
- CNC control panel
- Matrix-based protocol
- Supports CNC systems for FANUC and Mitsubishi
- Dimensions: 400mm x 220mm/15.7" x 8.7". The front is designed to be waterproof and oil-resistant
- Highly integrated circuit, modular design, and input and output interface and system interface matching enables easy connection
- Key symbols can be replaced from the front, with an integrated three-dimensional frame structure and an integrated Korean button structure
- Panel is 65mm/2.6" in thickness. Please reserve some space on the back of the panel for easy installation
Specifications:
- Product Name: Standard Lathe Control Panel
- Model: SS-BZ-TC
- Dimensions: 400mm x 220mm/15.7" x 8.7"
- Applicable systems: For FANUC and Mitsubishi
- Operating Voltage: DC24V±5%
- Protection class: IP65
- Communication method: Matrix type
- System I/O occupancy: 13 inputs/16 outputs
- Encryption method: Software encryption, supporting remote control
Package Included:
- 1 x Lathe Control Panel
Packaging Details:
- Weight: 2.5kg
