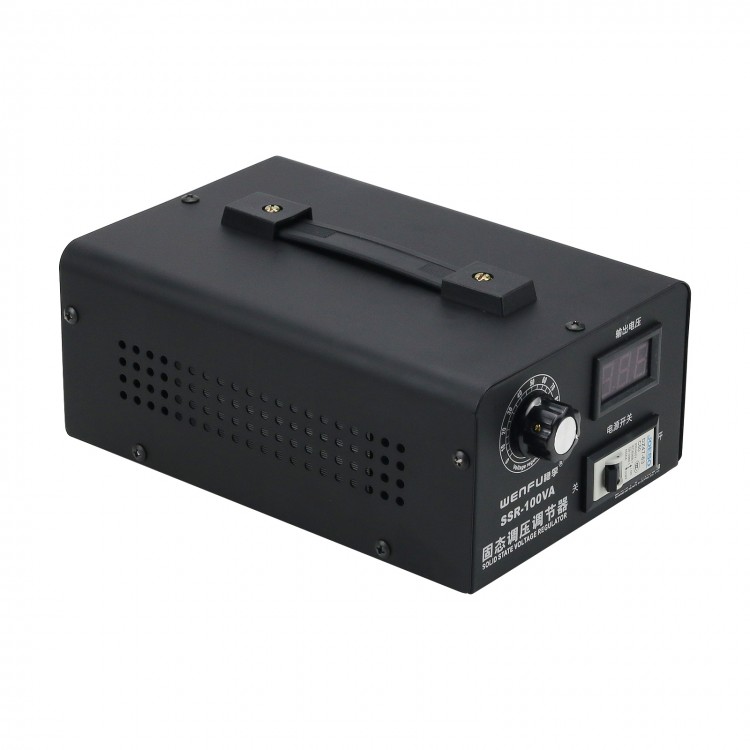

SSR-100VA 220V Solid State Voltage Regulator Electronic Voltage Regulator Adjustable Output 0V-220V

SSR-100VA 220V Solid State Voltage Regulator Electronic Voltage Regulator Adjustable Output 0V-220V

Features:
- Improved appearance and upgraded quality and performance
- Used to adjust temperature, brightness of lights, speed and voltage
- Peak module with current 100A and rated power 5000W
- Stepless adjustment: adjust output voltage in the range of 0V-220V via a big knob
- Small voltage regulator replaces traditional big regulators, saving more energy
- Digital LED display helps you control voltage
- Flame-retardant shell does not deform under high temperature conditions, making it safer to use
- When running at full load, its powerful fan with excellent heat dissipation performance makes it works in a more stable way
- Easy to install: copper terminals with high-current wires
- Suitable for resistance electric heating, power tools, motor fans, tungsten lamps and other equipment
- Not for household water pumps, single-phase motors, household microwave ovens, smart rice cookers and LED energy-saving lamps, etc.

More Details:
- Control switch: The switch can function as a over-load short-circuit protector, making it safe and practical to use

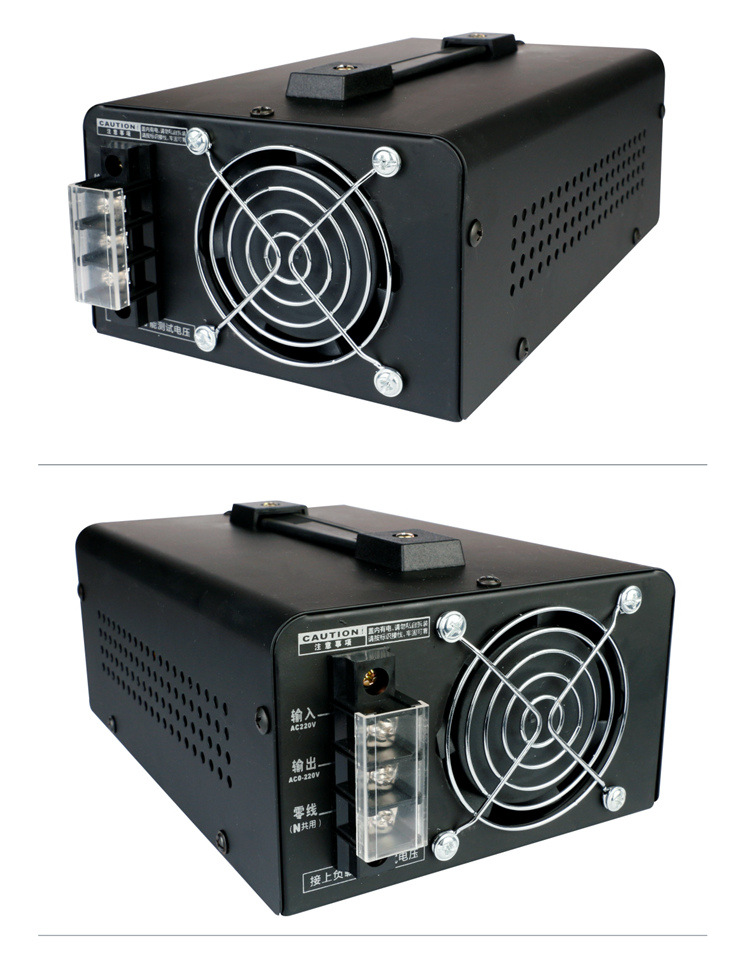

- Fan cooling: The shell has cooling holes and a powerful fan to dissipate heat, making the device performance more stable

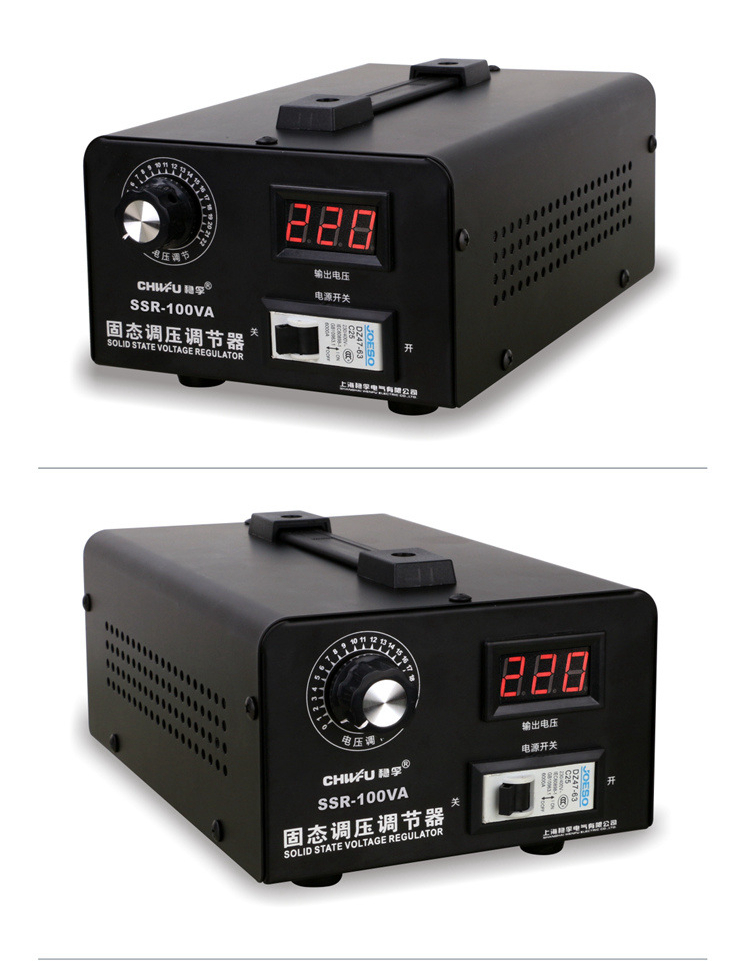

- HD digital display: The screen displays voltage and you can know and adjust voltage and current; convenient to use

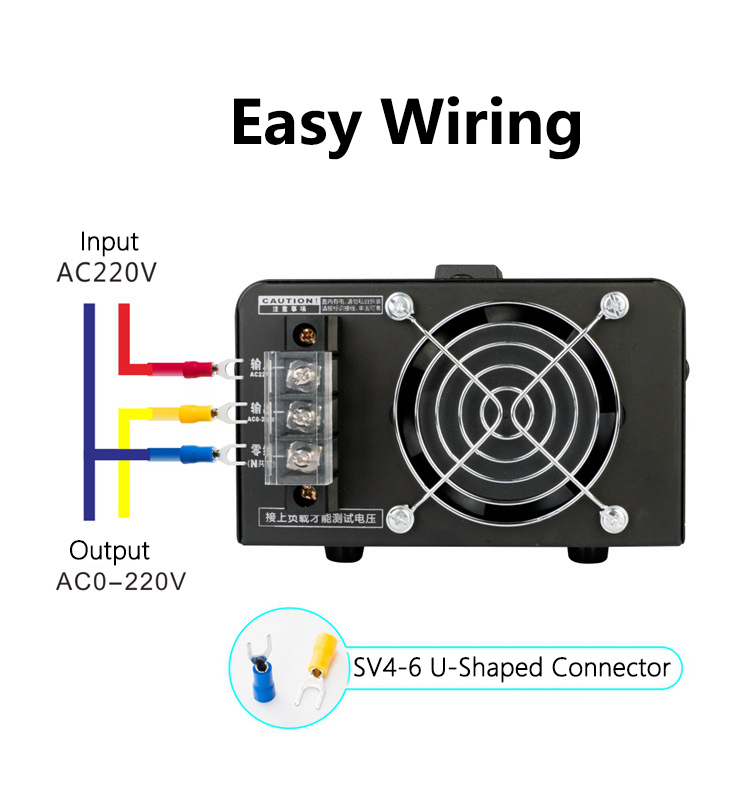

- Copper terminals: Thickened phosphor bronze terminal blocks resistant to high current; convenient and quick installation and wiring
- Adjustable voltage: Adjust voltage from 0V to 220V or decrease the voltage from 220V to 0V
- High-power module: Using high-quality control chip, you can control voltage and current frequently. Adopt advanced patch technology and fine workmanship to guarantee quality

Specifications:
- Model: SSR-100VA
- Item Name: Solid State Voltage Regulator
- Input voltage: AC220V (two-wire 380V can be customized)
- Output voltage: 0-220V adjustable (use it with a load)
- Peak power: 10000W (within the maximum load power of 5000W)
- Voltage regulation range: 0-220V steplessly adjustable (use it with a load)
- Peak current: 100A (maximum load current lower than 25A)
- Product features: There is no isolation between the control end and the output end, and can only be used in occasions where the manual control of resistive loads is not high. Not recommended for applications with high requirements such as inductive loads

Package Included:
- 1 x Set of Solid State Voltage Regulator

Precautions:
1. The measured output voltage and input voltage are the same at no load, and the output voltage can only be measured when a load of more than 1000W is connected.
2. The input is AC, and the output is AC instead of DC.
3. The 10000W mentioned above refers to the peak power of the module when it works under resistive load, and the inductive load used within the actual load power of 5000W is 1/3 of the resistive load. Resistive loads refer to lamps, heating wires, etc. Inductive loads refer to series-excited motors, etc. Not recommended for electronic smart products.
4. Since the product adopts metal shell, please use it after grounding.
