Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $266.53 | $261.09 | $252.93 | $242.05 | Contact US |

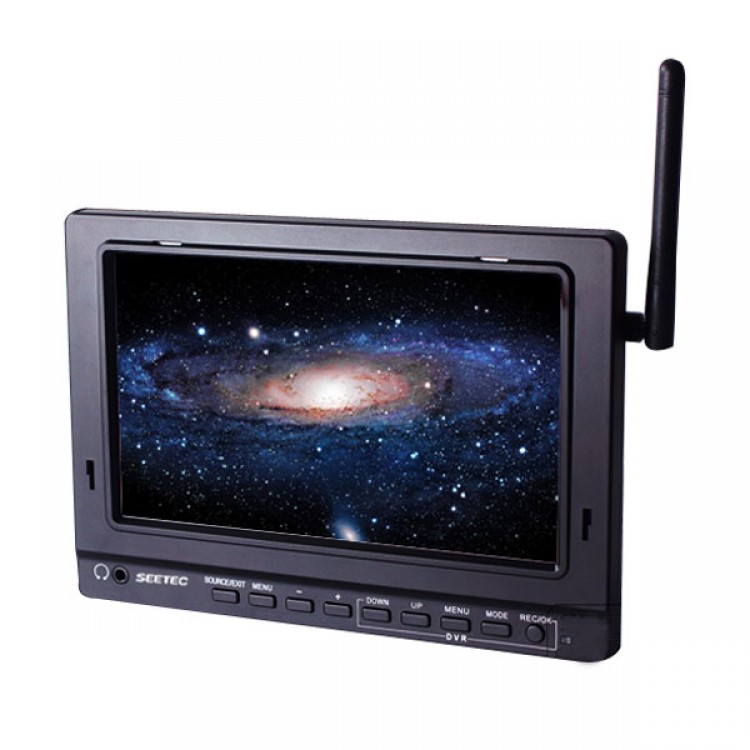

ST-700DW HD 7 inch Built in 5.8G Receiver Video Monitor DVR for FPV Photography
Parameters:
- Screen: 7" TFT LCD
- Definition: 1024*600
- Lightness: 250cd/m
- Contrast ratio: 700:1
- Visual angle: 75 degree
- Input signal: Video/Audio/RF/HDMI
- Input voltage DC: 6-24
- Power consumption: <=8W
- Using temp : -20---50degree
- Storage temp: -30---65 degree
- Output signal: video, earphone output, stereo 3.5mm jack
- Dimension: 189*134*32mm
- Weight: 450g
- Standard accessories: sunshade cover, Sony F970 battery buckle board, antenna
Features:
- When signal is weak, the screen will not become blue screen(snowflakes will appear)
- 5.8G wideband FM audio video can be received at the same time
- Low consumption: 5V 170mA
- High receiving sensitivity: -90dBm
- Built in frequency phaselocked loop
- Direct output analog audio video signal
- Motion detection, loop record
- 8 Channel receiving
Built in receiver frequency:
Receiving frequency:
- 1 ch: 5705MHz , 2ch: 5685MHz , 3ch: 5665MHz , 4ch: 5645MHz
- 5 ch: 5885MHz , 6ch: 5905MHz , 7ch: 5925MHz , 8ch: 5945MHz
Package includes:
- Monitor x 1
- 2db antenna x 1
- HDMI cable x 1
- Sunshade cover foldable x 1
