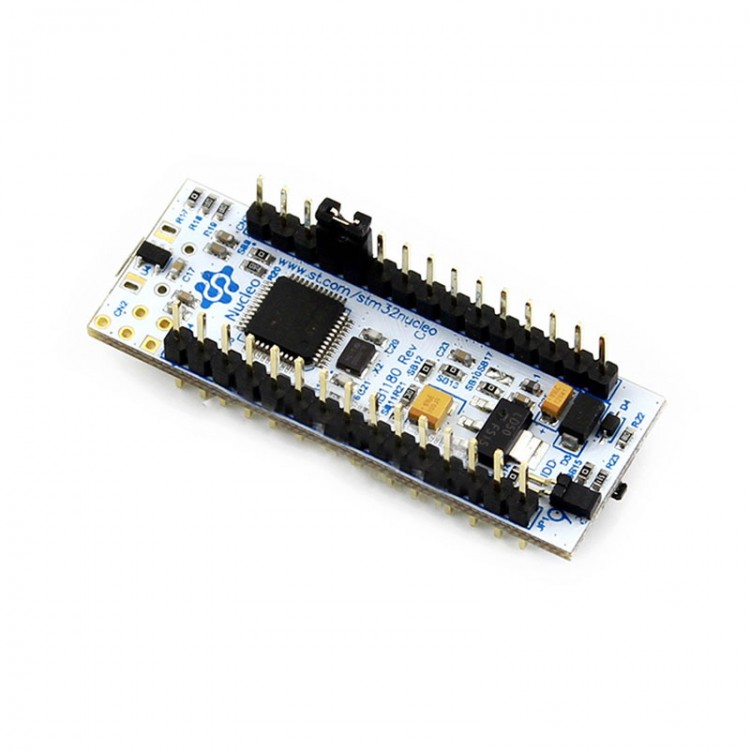

ST NUCLEO-F303K8 STM32 Cortex M0 Development Board for Arduino Nano
Description:
The STM32 Nucleo-32 board provides an affordable and flexible way for users to try out new concepts and build prototypes with any STM32 microcontroller line in 32-pin packages, choosing from the various combinations of performance, power consumption and features.
The Arduino™ nano connectivity makes it easy to expand the functionality of the STM32 Nucleo open development platform with a choice of specialized shields.
The STM32 Nucleo-32 board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.
The STM32 Nucleo-32 board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.
Features:
- STM32 microcontrollers in 32-pin packages
- Extension with Arduino™ nano connectivity
- mbed-enabled (http://mbed.org)
- On-board ST-LINK/V2-1 debugger/programmer
- USB reenumeration capability: three different interfaces supported on USB:
Virtual Com port
Mass storage
debug port
- Flexible board power supply:
USB VBUS
external source
- Three LEDs: USB communication (LD1), power LED (LD2), user LED (LD3)
- Reset push button
- Supported by wide choice of Integrated Development Environments (IDEs)
including IAR™, Keil®, GCC-based IDEs (AC6 SW4STM32, ...)
Package Contents:
- 1 x Development Board
