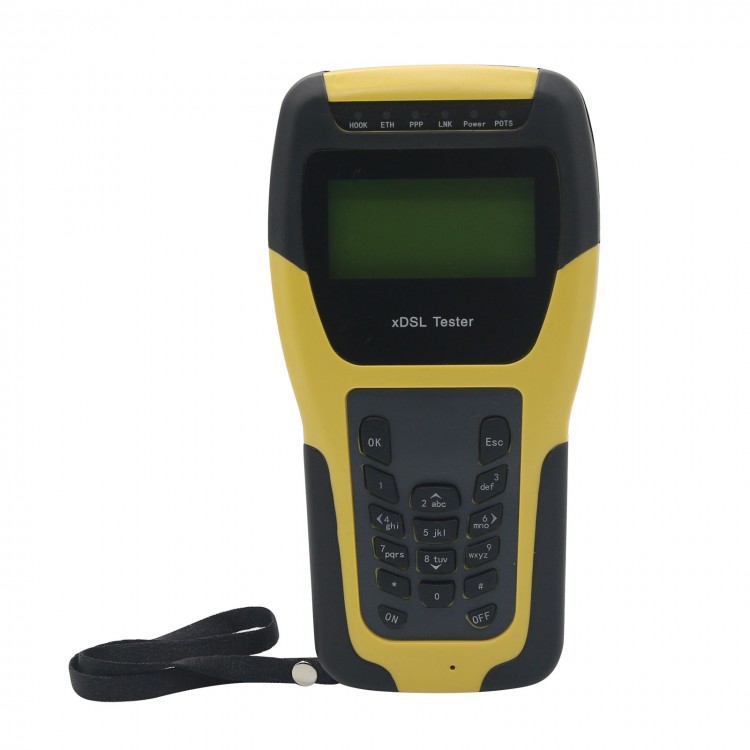

ST332B ADSL2+ Tester XDSL Line Tester ADSL Digital Line Network Tester Meter

ST332B ADSL2+ Tester XDSL Line Tester ADSL Digital Line Network Tester Meter

Feature:
- Test objects: ADSL; ADSL2; ADSL2+; READSL
- Fast copper tests with DMM (AC V, DC V, Loop and Insulation Resistance, Capacitance)
- Supports modem emulation and simulating login to Internet
- Supports ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test)
- Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)

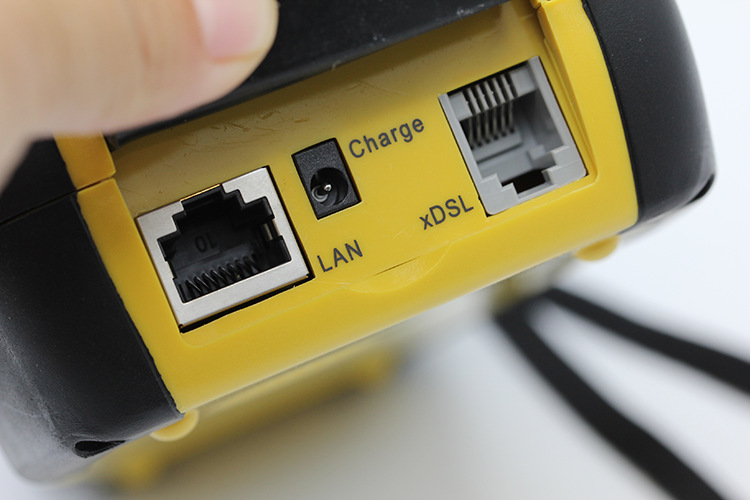

- Connects to CO via alligator clip or RJ11
- Rechargeable Li Battery
- Beep and LEDs alarm indications (Lower Power, PPP, LAN, ADSL)
- Data memory capacity: 50 records
- Compliant with all known DSLAMs

Main function:
- DSL physical layer test
- Modem emulation (Replace the user Modem completely)
- PPPoE dialing (RFC1683,RFC2684,RFC2516)
- PPPoA dialing (RFC2364)
- IPoA dialing

Telephone call function:
DMM test (AC Voltage: -400 to 400 V;DC Voltage:0 to 290 V;Capacitance:0 to 1000nF,Loop Resistance:0 to 20KΩ;Insulation Resistance:0 to 50MΩ;Distance Test)
Pingfunction (WAN & LAN)
Data upload to computer by RS232 core and software management
Setup system parameter:backlight time,shut off automatically time without operation,press tone,revise PPPoE/PPPoA dial attribute,user name and password,restore factory value and so on.

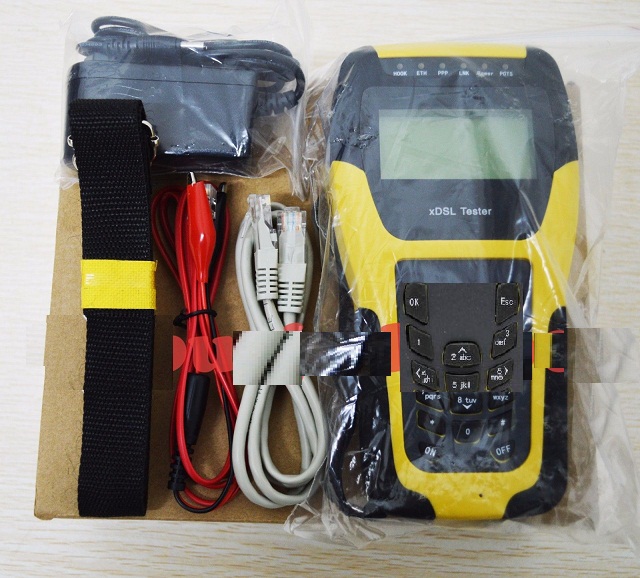

Package List:
- 1 x ST332B ADSL2+ Tester XDSL Line Tester
