| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $106.49 | $104.31 | $101.05 | $96.71 | Contact US |
DIY Portable Aluminum Alloy Vehicle Shortwave Antenna Base + Tripod Adapter for Outdoor Installation
$37.54
DIY Portable Aluminum Alloy Vehicle Shortwave Antenna Base with M-female Interface for Outdoor Installation
$34.62
Quansheng UVK5/UVK6 Full-SI4732 Chip and Crystal Oscillator Modification Module FPC HF Shortwave Full-band/SSB Receiving
$17.05

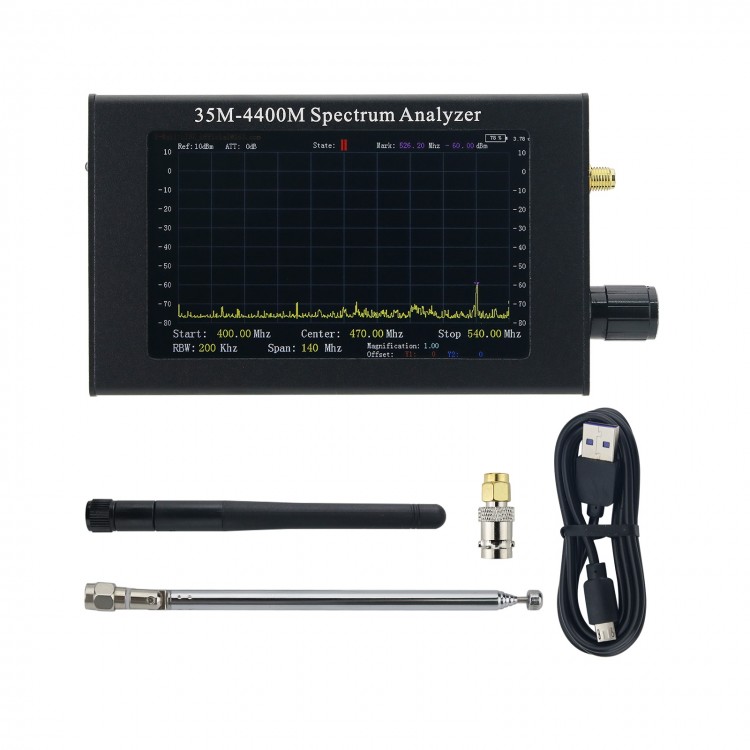

Standard Version 35Mhz - 4400MHz Handheld Portable Spectrum Analyzer 4.3-inch TFT LCD Screen RF High Frequency Analyzer
Specification:
- Size: 145 x 70 x 30mm
- Weight: 350g
- For STM32F407 dingle chip computer (main frequency: 168M) + 4.3-inch TFT LCD (480 x 800) screen
- Full aluminum alloy shell + rotary encoder control + all English display interface + USB power supply
- Support USB power supply and built-in lithium battery power supply
- Spectrum display range: 35M - 4400MHz
- Input impedance: 50ohm
- RBW: 10kHz, 50kHz, 100kHz, 200kHz, 500kHz adjustable
- Number of screen scanning points: 700
- Scanning span: 7M (10kHz), 35M (50kHz), 70M (100kHz), 140M (200kHz), 350M (500kHz)
- dBm range: -80 ~ 10dB (support manual adjustment of calibration amplitude). There is no amplification circuit in the machine. If you need to measure small signals, an external amplifier is required.
- Maximum access signal: 10dB
- Working mode: superheterodyne scanning spectrometer, single scanning time: 800ms.
Package Included:
- 1 x Set of Spectrum Analyzer
