Standard Version CAN Bus Analyzer USB to CAN Adapter with PC Software Supports Secondary Development

Standard Version CAN Bus Analyzer USB to CAN Adapter with PC Software Supports Secondary Development

Description:
It is an industrial-grade CAN bus analyzer. It is designed with original USB controller atmgea16U2 for Atmel, original CAN controller MCP2515 transceiver for Microchip, and original CAN transceiver TJA1050/TJA1040 design for NXP.

Features:
1. It supports 1Mbps high-speed CAN bus, with terminal resistor (can be removed). Supports TJA1040, TJA1050, TJA1042 and other CAN transceivers.

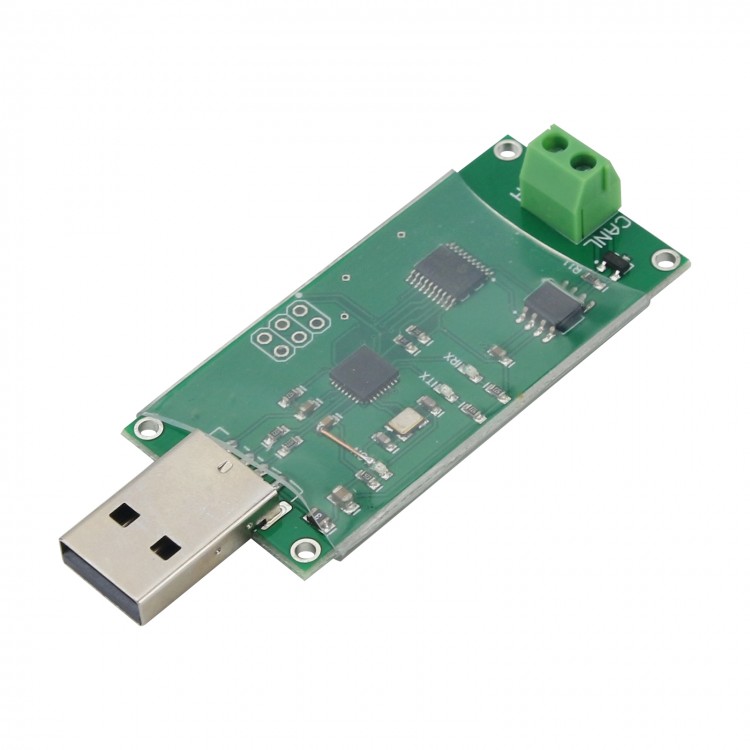

2. Small size: An external enclosure can be added, and there are 4 mounting holes on the board. It's only a little larger than a coin, but it doesn't have power isolation and signal isolation.

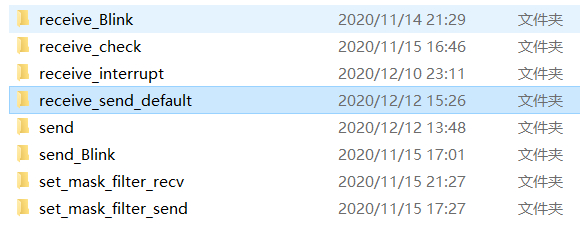

3. It supports secondary development, with the default firmware of CAN analyzer. The attached reference routine is shown in the image below.
4. All secondary development programs are free of charge! The program is developed under the Ar-duino IDE, which is simple to get started and does not need to understand the complex USB communication protocol.

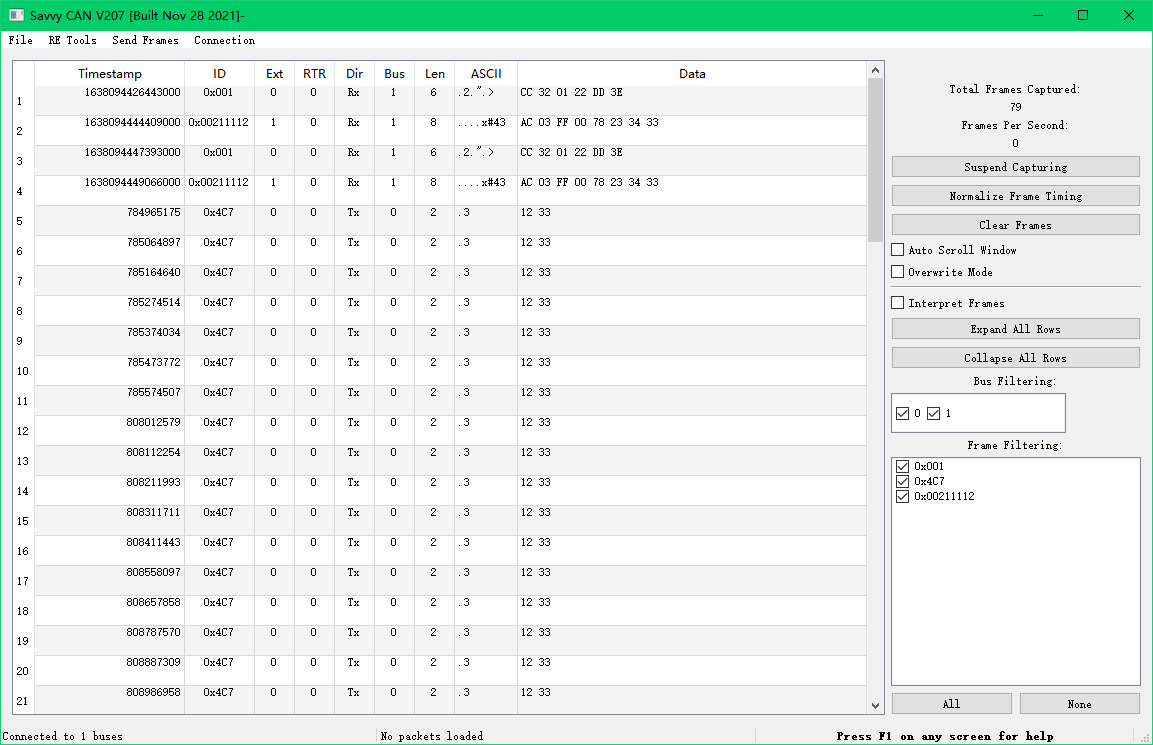

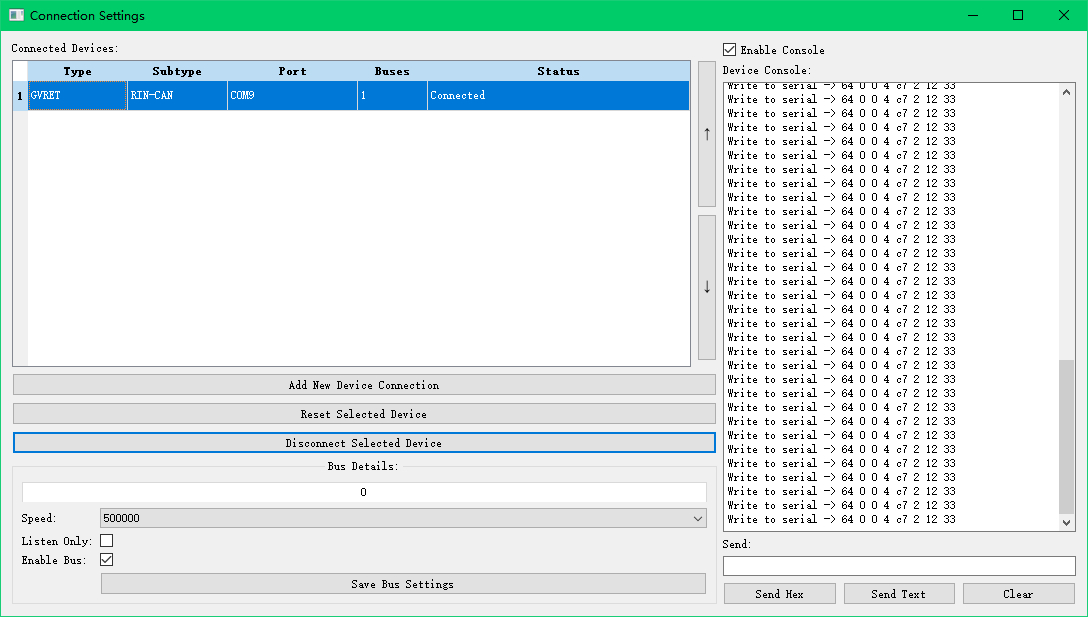

5. The upper computer software is SavvyCAN. It has functions such as CAN analyzer settings, sending and receiving messages and DBC parsing.
6. The micro-controller adopts the original USB controller for Atmel, with 16k flash memory, 512 bytes of RAM, and 512 bytes of EEPROM. Its EEPROM can be used to configure product serial numbers, encryption, configuration memory, etc.
7. The USB controller is a full-speed 12Mbps controller.

Package Included:
- 1 x CAN Bus Analyzer

Attention:
- Computer software is provided.

Packaging Details:
- G.W.: 0.15kg
