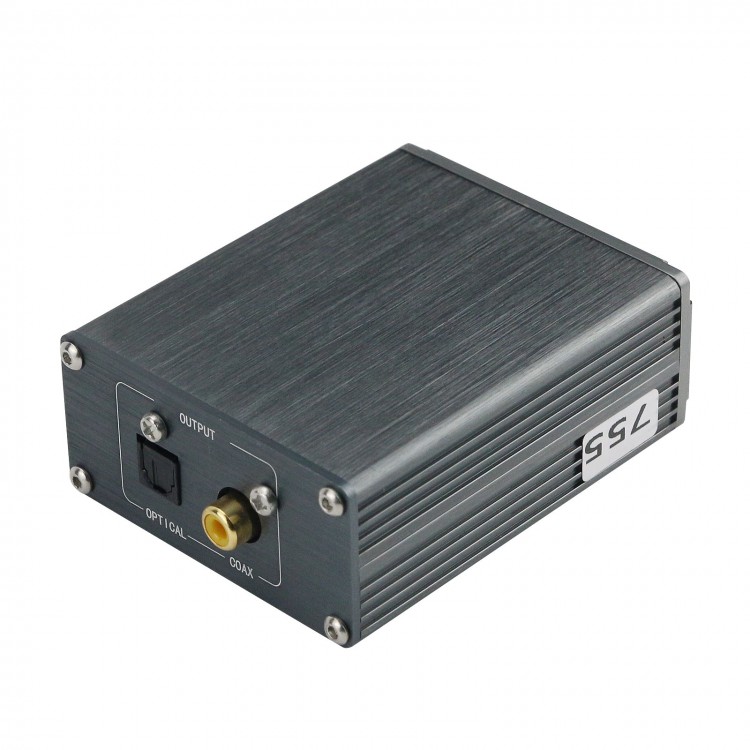

Standard XMOS U8 Asynchronous USB Coaxial Fiber Digital Interface MuRata Audio Transformer TCOX Temperature Compensation
Product Description:
- The sampling of the latest XMOS U8 8 core processing scheme at present, better compatibility, lower jitter. Support coaxial fiber 192K 24BIT output, the board with a I2S port, you can transfer PCM andDSDFormat signal. PCM I2S mode maximum transmission 32BIT 384K
- And similar products on the market, including higher than the price of this product is 2 times higher than the product, the product still has the following advantages:1 much better than similar products of ultra high precision and low phase noise gold crystal, more advanced isolation transformer;The design of 4 layer layout 2 more optimized, the closest distance main chip crystal oscillator
Third EditionAnd the previous second versions are as follows:
- 1PCB upgrade for military manufacturers 4 layer PCB design, complete the ground wire and the power supply layer
- The most expensive MuRata DA101C (103C) audio output transformer. This transformer is used in the top of the beat Lin DAC, far more thanPE65612, PE85812, DV709Output transformer delicate
- Can be upgraded to 2 0.1PPM gold plated TCOX crystal, this is an optional upgrade project,
Second EditionAnd before the first version of the difference is as follows:
- The linear non-public version power is greatly enhanced, more regulated LTV in every way the main power are equipped with independent and independent SANYOcolonySolid capacitor array, in the peer category of products, achieve the ultimate power, low frequency than the previous depth analysis of force better, better. A substantial increase in the number of the original production cost is cheaper than some XMOS products is much higher.
- Optimization of the circuit wiring, 3 high-frequency crystal oscillator is directly arranged in the distance from the nearest main chip,Because of the high frequency of more than 24M, the local oscillator design to distance XMOS chip recently placed, it is very helpful to reduce jitter, and avoid radiation loss brought by long line.
- The board before and after process using Aluminum Alloy bread multiple processes more than 4MM thickness made of laser engraving, never fade, the market than some cheap XMOS products cost much higher thin aluminum liner. Equipped with imported gold-plated USB socket, not like someCheap XMOS productsInsert a few times on the USB mouth loose and bad contact. Coaxial port for expensive us CMC port.
Overall dimensions: 68.5 wide X33 high X88 long
Asynchronous asynchronous data transfer mode dual frequency low jitter local clock
Compatible with WINXP WIN7 WIN8 32BIT-64BIT:
- XMOS USB audio asynchronous receiver program, is now recognized as one of the best asynchronous USB audio program. Used by the majority of high-end manufacturers, almost become the standard USB audio high-end applications.
- The core of XMOS is powerful, there are 8 internal micro core work under 500MHz, the processing capacity for processing USB audio data is overkill, which guarantees the smooth and smooth communication USB. There will be other low-end USB scheme boom appears.Jitter can be as low as 4.6ps
- The 2 circuit adopts imported high precision active crystal, with discrete precisionClock shaping circuit.
The voltage regulator is sampled on the edge of the linear power supply LTV, double sided patch welding to ensure power supply is pure and reducedJitter power input CLC filter with high value, the power filter USB comes in a very clean and transparent, close to the battery.
- Coaxial and fiber support 44.1K 48K 96K 176.4K 192K sampling maximum support 192K-24BIT 88.2K
- I2S maximum support to 384K 32bit (currently known to support 384K I2S interface is available with ES9018)
This product does not contain USB line, need to purchase
- On the WIN8.1 to drive the installation, you can refer to the following steps:
The program may also be some bug, below I put some problems in the installation process to provide you, you can give feedback to the designer of the program may be useful to him:windows8.1Xmos,1. c:userstqliAppDataLocalTemppft7D86.tmpsetup.exe2. Xmos USB
Package List:
- 1 x XMOS U8 Asynchronous USB Coaxial Fiber Digital Interface
