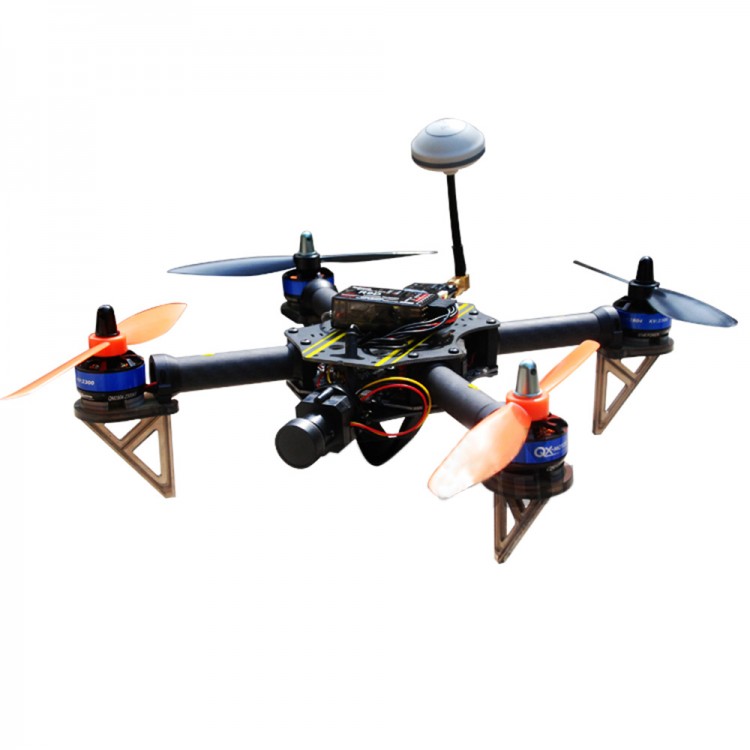

Star Power Jumper 260Plus3 258mm 4-Axis Quadcopter Frame Kit with Flight Control Pressure Meter OSD for RC FPV Multicopter

Star Power Jumper 260Plus3 258mm 4-Axis Quadcopter Frame Kit with Flight Control Pressure Meter OSD for RC FPV Multicopter

Description:
Integrate NAZE 32 flight control ,power distribution board BEC 5V / 12V. Add SBUs DSMX receiver mode and Bi Bi buzzer alarm . With flight control status light, led taillight,OSD and pressure meter function, 20A BLHELI oneshot ESC, motor 2204-2300KV, camera and transmitter, 6 inch propeller. The overall structure is simple, strong, very suitable for novice flying.

Pre-set transmitter interface, camera interface and power supply interface.

Specification:
- Jumper 260Plus is the improved version of Jumper250
- Model:  Jumper 260Plus 3
- Shaft: 258mm
- ESC: 20A blheli (one shot )
- Motor: 2204-2300kv
- Propeller: 6045 (also can use 5040, etc.)
- Camera: 600tvl COMS 120 degree ultra wide angle
- TX: 5.8G 200mW with mushroom antenna
- Battery: support 1500mah-2200mah 3s-4s (XT60, battery is not included)
- Weight: 345g (including camera, map, no battery)
- Flight control: NAZE32 (can brush firmware:baseflight，cleanflight)
- Carbon fiber arm: 15*13*68mm
- Black and transparent landing gear: thickness 42mm; ABS
- 260 lower board: glass fiber

Note: This is the model Jumper 260Plus 3 with OSD or pressure meter.

Difference between Jumper 260Plus and Jumper 260:
Flight control center board circuit is optimized, and added many new functions, more stable. The transmitter circuit is advanced, free of interference problem. The pipe clamp seat and motor seat is made CNC. The carbon tube is thickened. New ABS material, etc.

Flight control board interface:
- Camera interface
- TX interface interface
- DSMX interface
- SBUS interface
- LED interface
- 4*white tail light
- ESC interface
- Flight control status light
- Buzzer
- USB interface
- RX interface
- ST60( support 3s/4s battery)

Package included:
- 1 x Quadcopter Kit
