Description:
The 2100C system has faster processing speed, larger storage space and more convenient operation.

Hardware Specifications:
1. Adopt industrial advanced performance CPU for ARM, main frequency up to 400MHz
2. Its running memory is 64M, which can process large processing programs (2100C system memory 4G)
3. Adopt 7-inch true color LCD screen, with resolution 800*480
4. Large physical buttons, good feel and long life
5. Pulse output frequency is not less than 500KHz, and the maximum output frequency of single-axis pulse is 1MHz
6. Number of linkage axes: 2 axes. Scalable to 3 axes
7.User program storage space reaches 4G, which can be expanded to 32G

System Features:
- Using industrial grade chip for ARM, featuring low power consumption, low heat generation, and no forced heat dissipation; suitable for complex working conditions
- High hardware integration, mature and stable design, capable of preventing strong plasma interference, lightning strikes, surges, etc. The product has passed the EMC test
- Standard operation interface in Chinese and English, dynamic graphic display, simulated processing track, real-time display of cutting status and input/output status
- The software is rich in functions, with practical flame/plasma cutting process settings, cutting gap compensation, break-point recovery, original track retraction processing, arbitrary program block start, torch arbitrary position adjustment and selection, pre-travel contour, part rotation, mirror image , array, scaling and other processing methods
- Equipped with 50 kinds of libraries, with simple layout function, convenient for users to use
- For startCAM, FASTCAM and other CAD/CAM nesting software; U disk reading program and software upgrade are adopted
- Optional wireless remote control, with control functions such as movement, positioning, acceleration and deceleration, cutting process, etc.

Technical Indicators:
- Number of linkage axes: 2 axes, which can be expanded to 4 axes
- Maximum speed: 30m/min
- Programming unit: 0.001mm
- I/O control: 16 inputs, 8 outputs (relay output)
- User space: 4G large program storage capacity, support external memory
- Programming method: Standard ISO-G code, support manual programming
- Display: 7", 32 true color
- Case size: 300 x 204 x 93mm/11.8 x 8 x 3.7"
- Working temperature: 0℃ to 55℃

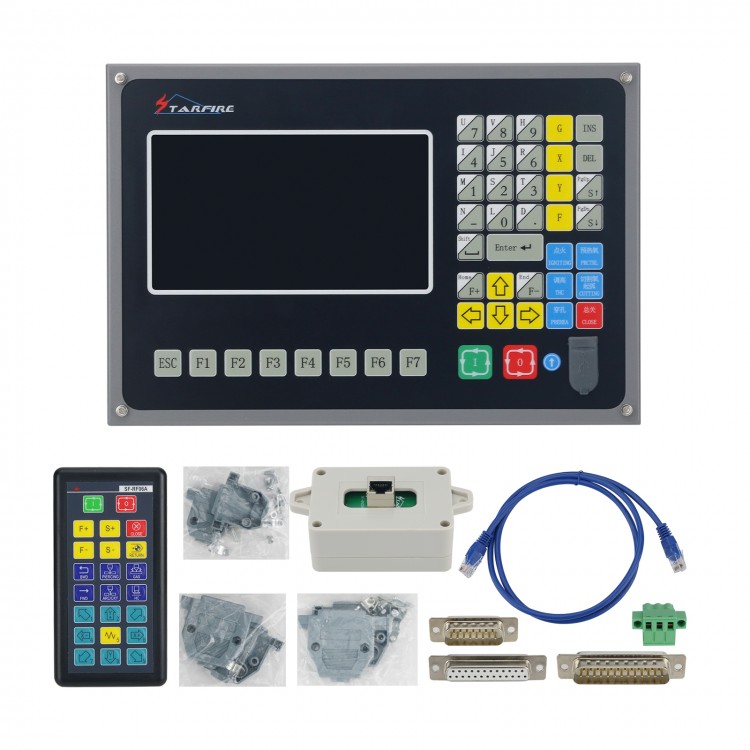

Package Included:
- 1 x CNC Control System
- 1 x Remote Controller
- 1 x Receiver
- 1 x Cable
