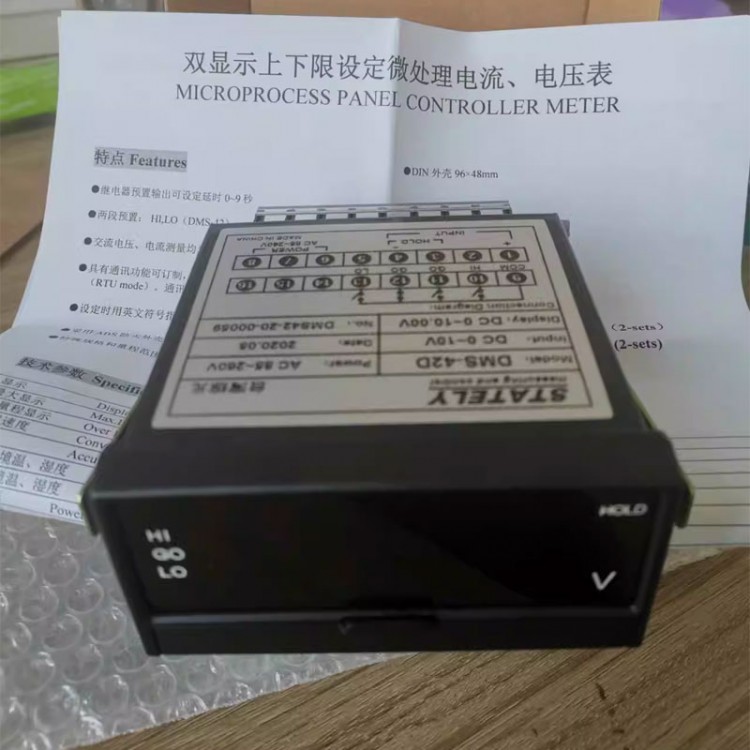

STATELY DMS-42D DC Volt Amp Meter DC V/A Analog Meter (HI & LO) Microprocess Panel Controller Meter
Version Comparison:
* DMS-42A: TRMS AC V/A Meter (HI & LO can be set)
* DMS-42D: DC V/A Analog Meter (HI & LO can be set)
Features:
* The relay preset output can be set with a delay of 0~9 seconds
* Two sets can be preset: HI and LO (DMS-42 series)
* Both AC voltage and current measurements are RMS (TRMS) (DMS-42A)
* Communication function can be customized. And the communication format conforms to the standard Modbus Protocol (RTU mode). The communication interface is RS485, and the communication address and baud rate (2400, 4800, 9600 and 19200) can be set. All measurement data can be read out via the serial port
* Indication in English or symbols when setting makes operation easier
* ABS fireproof enclosure (0-94V)
* Special specifications and range can be customized
* DIN case: 96mm x 48mm/3.8" x 1.9"
Specifications:
* Display: Top red LED 0.4" (10.1mm) high; bottom green LED 0.3" (7.6mm) high
* Max. display: 4-digit (9999)
* Over range indication: "o.L"
* Sampling speed: 1 times/sec (AC) or 2.5 times/sec (DC)
* Accuracy: AC±0.3%F.S.±2digit; DC±0.2%F.S.±2digit
* Temperature and humidity of working environment: 0~50°C/below 80%R.H. (non-condensing)
* Temperature and humidity of storage environment: -10 to 60°C/below 70%R.H. (non-condensing)
* Power supply: AC85~260V±10%, 50/60Hz, customizable (DC12V, 24V, 48V, 120V±20%)
* Power consumption: Approx. 5VA
* Weight: Approx. 500g/1.1lb
* Dielectric strength: AC 1500V/min (input/power)
* Insulation resistance: more than 100MΩ at DC500V
* Product dimensions: 96mm (W) x 48mm (H) x 104mm (D)/3.8" x 1.9" x 4.1"
* Mounting dimensions: 91.5mm (W) x 44mm (H)/3.6" x 1.7"
Preset Output System:
* Setting Range: -9999 to +9999
* Relay Contact Capacity: AC 250V, 1A resistive load; DC 30V, 2A resistive load
Output Conditions:
* Mode: DMS-42
* Measured value >HI set value —> HI light on
* HI set value > measured value >LO set value—> GO light on
* LO set value > measured value — > GO light on
Package Included:
* 1 x Set of Microprocess Panel Controller Meter
Packaging Details:
* Weight: 0.55kg
