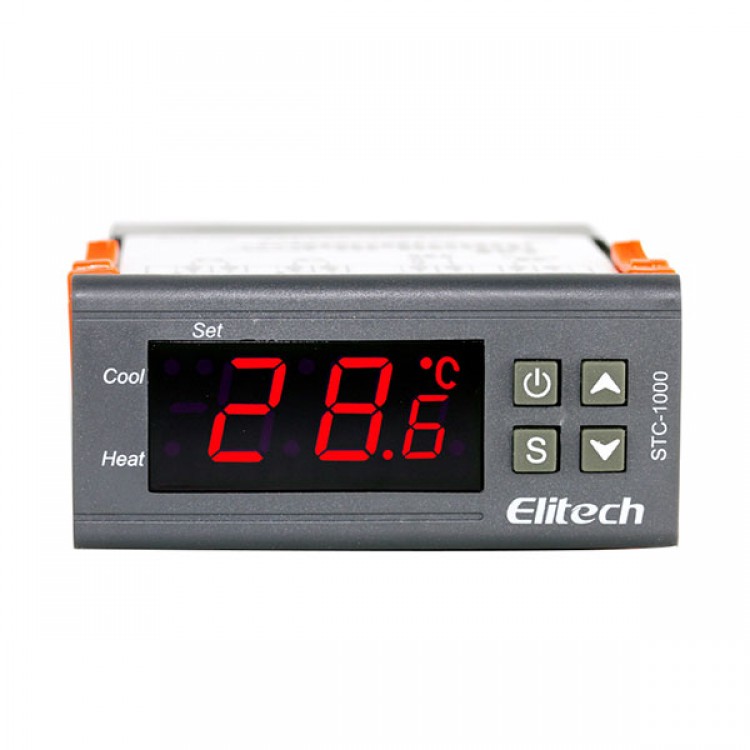

STC-1000 Temperature Controller STC 1000 Thermostat Aquarium NTC sensor 110V

Description

- This mini Temperature Controller is an excellent and convenient multifunction device for controlling temperature in Aquariums. The stability of aquarium temperature is one of the crucial factors that contributes to the health and safety of your fish. By utilizing the temperature controller, you can provide an environment with optimal temperature for your fish. This advanced temperature controller can measure and control temperature from -50 to 99 °C.

- This device is also suitable for Laboratories use and other temperature-controlled systems.



Applications:

Aquarium

Terrarium

Vivarium

Paludarium

Chicken Incubator



NOTE: Unless required, we will ship the temperature controller with 220 V or 110 V versions based on the voltage of your countries. For example, if you are customers fromUnited States, Canada, Mexico, Japan and Taiwan, we will ship 110 V versions. For customers from Europe, Australia, New Zealand, most Asian Countries, South America and Africa, we will ship 220 V versions.



Features

- Mini and light weight design

- Large and clear LCD display

- Wide Temperature Range (-50 ~ 99 °C)

- Dual heating and cooling function

- Automatic over temperature alarm

- Control temperature by setting the temperature set value and the different value

- Temperature Calibration

- Refrigerating control output delay protection

- Wiring diagram for installation included



Specifications

- Temperature Measuring Range: -50 ~ 99 °C

- Control temperature range: -50 ~ 99 °C (adjustable)

- Control temperature difference: 0.3 - 10 °C (adjustable)

- Resolution: 0.1 °C

- Accuracy: ± 1 °C (-50 ~ 70 °C)

- Sensor: NTC sensor

- Sensor error delay: 1 minute

- Relay contact capacity (Heating): 10A (max) 250 V

- Relay contact capacity (Cooling): 10 A (max) 250 V

- Compressor delay protection time: 1 ~ 10 minutes (adjustable)

- Operating Temperature: 0 ~ 60 °C

- Storage Temperature: -30 ~ 75 °C

- Operating Relative Humidity: 20 ~ 85 % (No condensation)

- Alarm Output : Buzzer

- Power Supply: 100 ~ 120 V AC, 50 / 60 Hz

- Power consumption: < 3 W

- Cable length: 2 m (6.56 feet)

- Item dimensions: approx. 75 (W) x 86 (H) x 35 (D) mm (2.95' x 3.39' x 1.38' inch)

- Item weight: 180 g



Wiring work

- The unit is of a panel mount design and requires mounting in a suitable box. This unit is supplied with wiring diagram of how to fix the main unit to your application systems. However, it is highly recommended to do the wiring connections via qualified technician with experiences in electricity.



Please consider the wiring issues before bidding!



Package includes:

- 1 x Mini-Temperature Controller

- 1 x Temperature sensor probe with cable

- 1 x Instruction Manual

- Standard Factory Package
