STC15F104W+SYN480 433M Low-power Wireless Receiving Module

STC15F104W+SYN480 433M Low-power Wireless Receiving Module

Description:

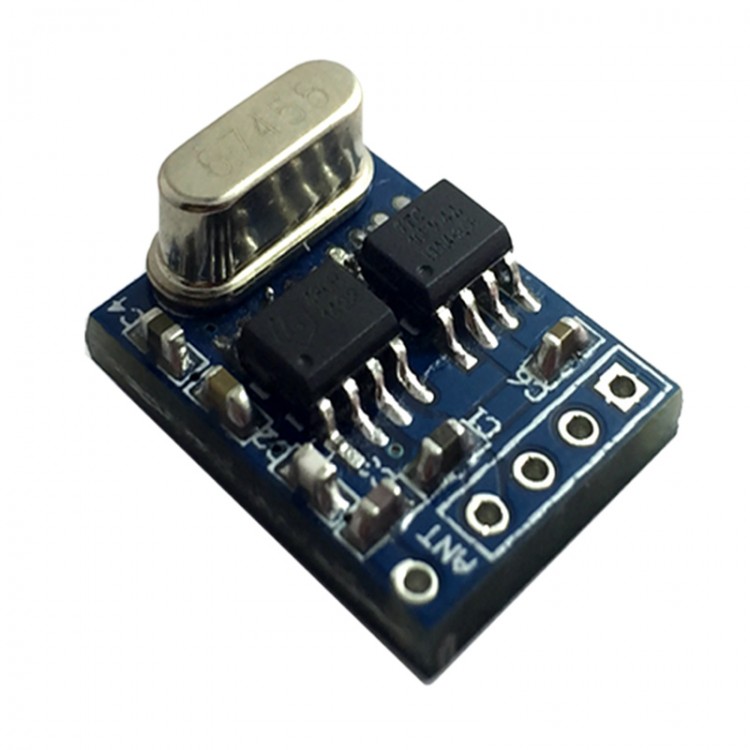

STC15F104W+SYN480 weirless receiving module integrates weirless receiving chip SYN480 and micro single chip STC15F104W.It is the optimum design in 433M weireless sending and receiving production.It is convenient for user to programme.

Product application range:
- Fan controller
- Distance power switch
- Distance sensor data connection
- Infrared receiver replacement

Feature:
- Simple to operate,stablecommunication, signal driving well
- Complete UHF receiver with multi function
- Automatic tuning
- No external filter and inductance
- The car uses single-chip embedded design, support STC Download

Parameter:
- Frequency range: 300MHz-450MHz
- Operating voltage range: DC 5V
- Receiving sensitivity: -107dBM
- Transmission rate: 2.5kbps(SWP), 10kbps(FIXED)
- Operating temperature: -40 degree celsius to +85 degree celsius

Introduction:
This module is only for receiving one， Wireless data transceiver can be carried out with the same working frequency transmitting module.

Procedure for Wireless Flash download and wiring as an example:
-In order to describe tersely, this module is used with STC15L104W+F115 wireless transmitter module.
- First, download the launcher program strobe signals for STC15L104W+F115,and download program receiveing the flashing lights for STC15L104W+SYN480.Download frequency 12M.
- The receiver RXD and VCC are connected with the Yellow LED, where the LED positive electrode is connected to VCC, and the negative electrode is TXD

Package included:
1xSTC15F104W+SYN480 433M Low-power Wireless Receiving Module
