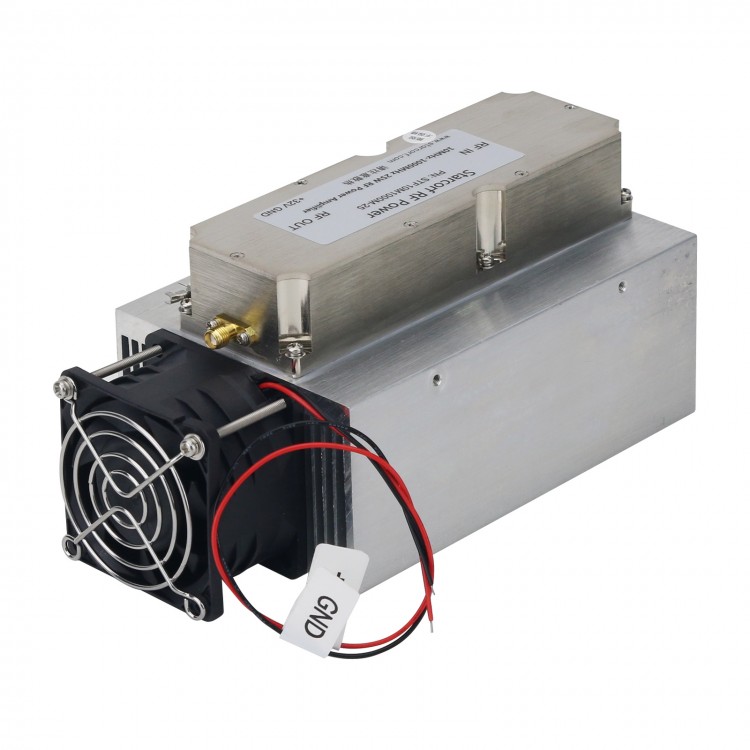

STF10M1000M-25 RF Power Amplifier 10-1000MHz 25W-30W Wideband RF Amplifier with Radiator and Cooling Fan
Description:
- High reliability RF power amplifier, with output power of 25-30W and frequency of 10MHz-1000MHz, will not be damaged by load open circuit or short circuit.
Specification:
- Frequency range: 10MHz ~ 1000MHz
- Maximum output power: 25 ~ 30W
- Gain: < 45dB
- Power supply: +28V to +32V
- Product size: 45 x 77 x 22mm
- Impedance: 50ohms
- Maximum input power: <8dBm
Power Supply Interface:
- 28V~32V, if you want to output tens of watts of power, it is best to choose a DC power supply with an output power capacity greater than 5A.
- The power of the amplifier is relatively high. When using it, please use 6pcs M2.5 screws to press the amplifier tightly onto the radiator. Apply thermal grease evenly between the bottom of the amplifier and the radiator, and pay attention to heat dissipation!
Package included:
- 1 x RF Power Amplifier
