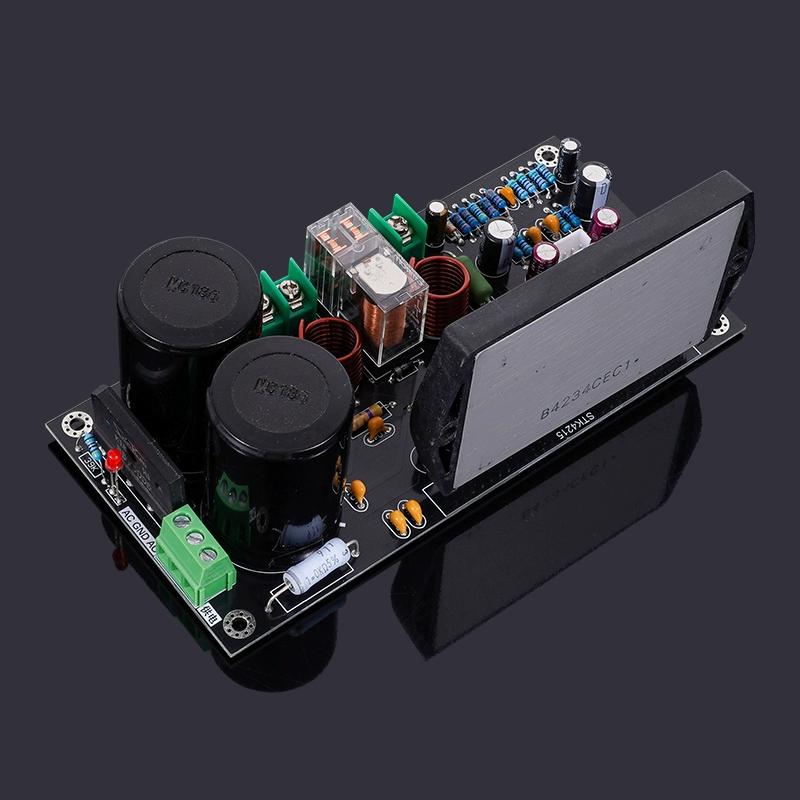

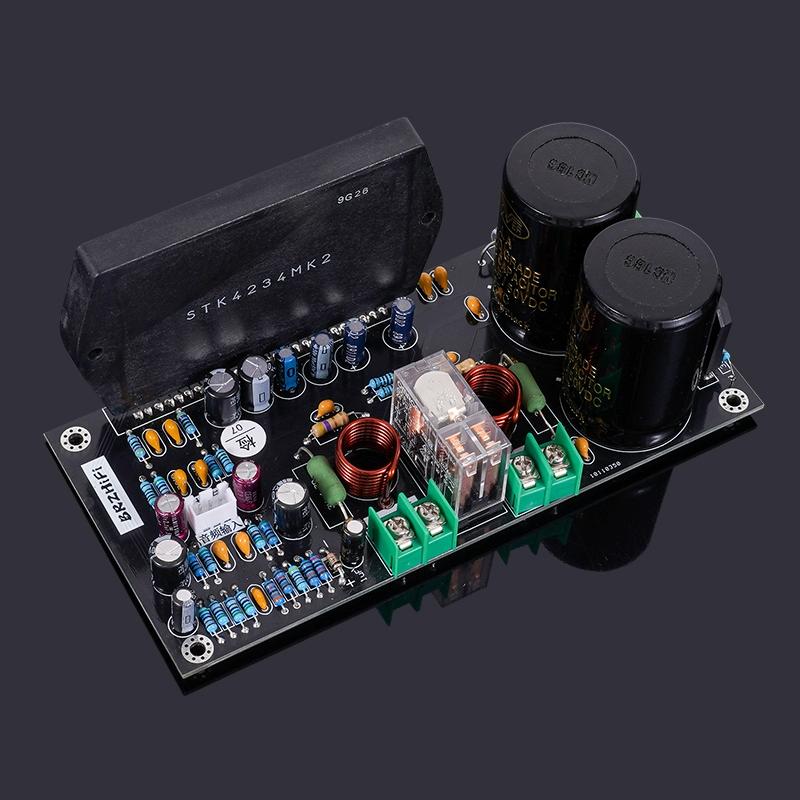

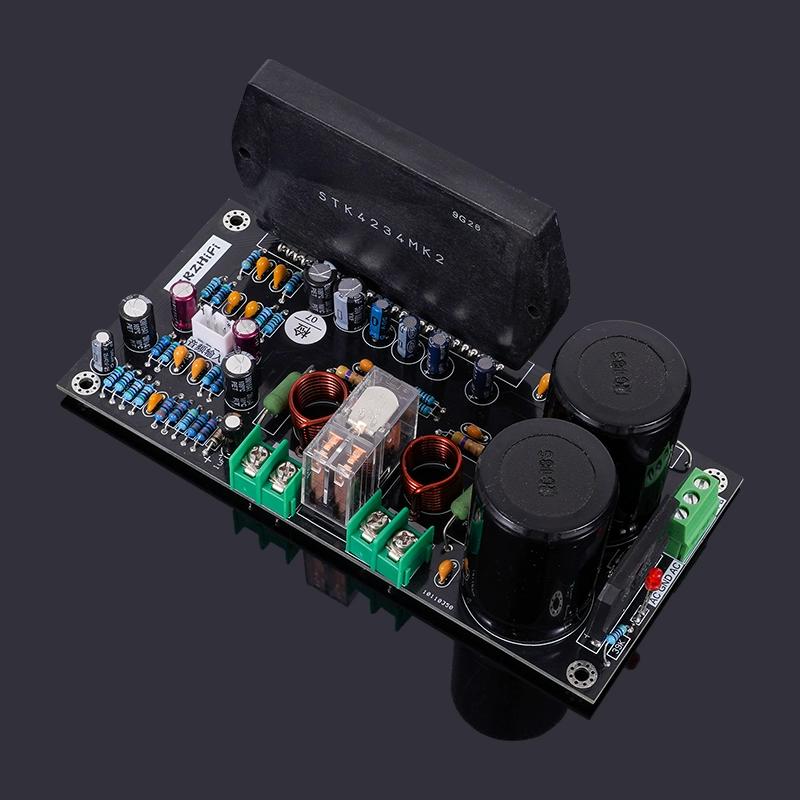

STK4234MK2 HiFi Professional Power Amplifier 100Wx2 High Power Triode Stereo DIY Amplifier Board for SANYO
Description:
- The STK42xxMK2 amplifier module is a stereo HI-FI music amplifier module for SANYO. Internally, it adopts a highly heated cross-flow circuit and paired high-power transistors, ensuring high-quality sound quality of the amplifier. This amplifier module also comes with a built-in horn protection circuit that directly drives the output relay.
Specification:
- Power supply voltage: AC dual 28V-38V (filter capacitor default 50V)
- Output power: STK4234MK2 100W+100W 8ohm
- Frequency response: 20Hz-50kHz
- Distortion: 0.01%
- Size: 148 x 70 x 61mm
Package Included:
- 1 x Power Amplifier Board
- 4 x Screw Nuts
- 2 x Screws
- 1 x Input Shielding Cable
