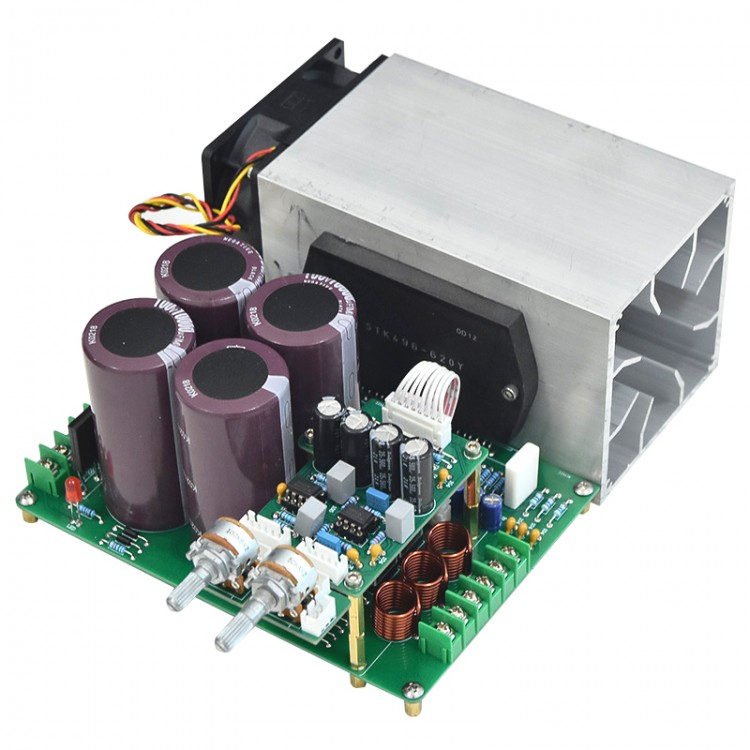

STK496-620 3x80W 2.1 Power Amplifier Board Power Amp Board PAC011 Assembled High Low Voltage Supply
Version Comparison:
* STK496-620: Output power 3x80W at 6Ω
* STK410-030: Output power 3x100W at 6Ω
Recommended Working Voltage:
High voltage AC 40VX2, low voltage AC 24VX2, 12V, two groups of 0.6A are enough (one group supplies power to protection circuit, the other group supplies power to fan). For working voltage, please refer to official technical data (pictured below). This circuit needs to be powered by high voltage and low voltage.
Description:
The board is assembled and has passed strict tests before delivery. The finished board is equipped with wind tunnel radiator and fan, and fan speed is adjustable. After a long time and high-power test, using this radiator can make this circuit work at full power. We use wind tunnel radiator to take the advantage of its small volume, so buyers can use their own radiators according to their actual usage.
Specifications:
- Power Supply Voltage: AC Dual 24-36V
- Product Dimensions: 160 x 80 x 170 mm (WxHxD) (Including radiator)
- Size of Wind Tunnel Radiator: 80 x 80 x 140 mm
- PCB Size: 160 x 110 mm
Package Included:
- 1 x Set of Power Amp Board
Note:
- It is assembled and ready for use.
- The main filter capacitors are second-hand. Please make sure that you don't mind before purchasing.
- There is no kit provided for this board. Thank you for you understanding!
