STLINK ST-Link Programmer Debugging Emulator Download Programming for STM8 STM32 ST-LINK/V2 (CN)
Description:
The ST-LINK/V2 is an in-circuit debugger and programmer for STM8 and STM32
microcontroller families.
Basic Properties:
- ST-LINK/V2 is ST's development tool for online simulation and download designed to evaluate and develop STM8 series and STM32 series MCUs.
- STM8 series is connected to the ST-LINK/V2 via the SWIM interface.
- STM32 series is connected to the ST-LINK/V2 via the JTAG / SWD interface.
- ST-LINK/V2 is connected to PC via Hi-Speed USB 2.0.
Supported Software:
- Directly support ST official IDE (Integrated Development Environment software) ST Visual Develop (STVD) and burning software ST Visual Program (STVP).
- Support STM32 integrated development environment, including ATOLLIC, IAR and Keil, and TASKING.
Supported Devices:
- Support all STM8 MCU with SWIM interface
- Support all STM32 MCU with JTAG / SWD interface
- Microcontrollers supported by STVP release 3.2.5

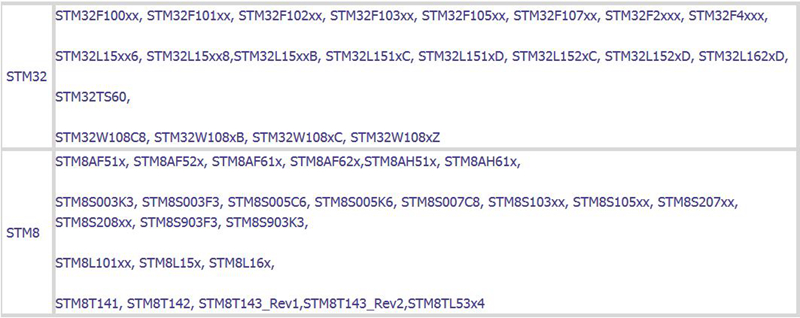

Supported MCU Lists:
Functions & Performance:
- Programming Function: Burn FLASH ROM, EEPROM, AFR, etc.
- Simulation Function: Support various debugging methods such as full speed running, single step debugging, breakpoint debugging, etc. You can view IO status, variable data and so on.
- Simulation Performance: USB2.0 interface is used for simulation debugging, single-step debugging, breakpoint debugging at fast response speed.
- Programming Performance: With USB2.0 interface, it supports SWIM / JTAG / SWD downloading at fast speed.
Connection Interface with Target Board:
- SWIM standard interface and JTAG / SWD standard interface specified by ST-LINK/V2.
Firmware Upgrading:
- The firmware is updatable. It will fit more models of STM8 and STM32 series. New device models can be added to STVD device supporting list. When you need to use the latest models in the future development, just upgrade STVD and the firmware, and the new models will be supported.
- The upgrading method is automatic type.

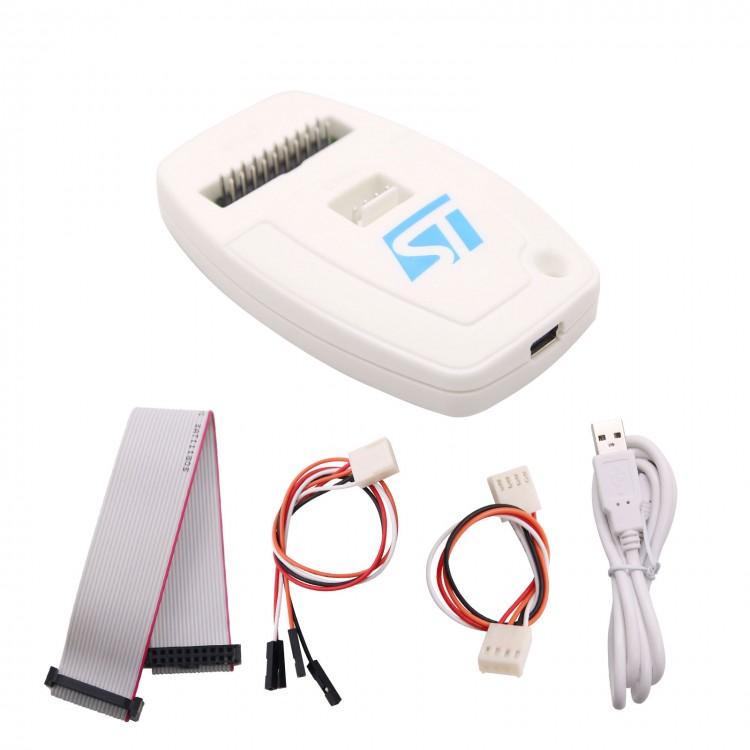

Package Included:
- 1 x ST-Link/V2 Main Unit
- 1 x USB Data Cable
- 1 x 20-pin Cable
- 2 x SWIM Cables
