STM32 Closed-loop 42 Stepper Motor Driver 5D Shaft Kit For 3D Printing Servo Stepping Mechaduino

Availability: In stock, usually dispatched in 1 business day

  • Price:$50.51
  • Price in reward points: 505 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $49.50 $48.49 $46.97 $44.95 Contact US
Quantity:

STM32 Closed-loop 42 Stepper Motor Driver 5D Shaft Kit For 3D Printing Servo Stepping Mechaduino

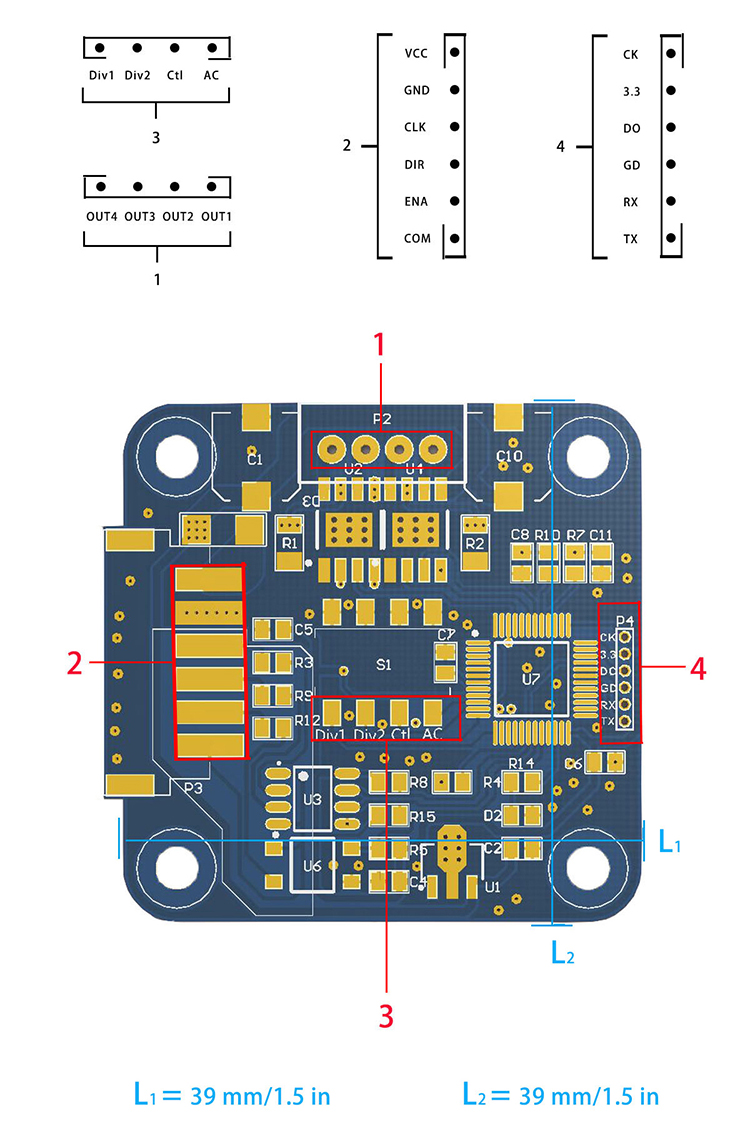

Product Parameters:

- VCC: 12-30V (reference motor working voltage 24V)
- GND: power supply ground
- CLK: pulse input
- DIR: direction control (ground, reverse rotation)
- ENA: enable signal
- COM: Connect to 3.3V, common anode
- P2: One phase on each side of motor cable

Motor Parameters:

- Name: 42 two-phase stepper motor
- Model: 17HS4401
- Step angle: 1.8°
- Maximum no-load starting frequency: ≥ 1400 PPS
- Rated voltage: 3.6V
- Maximum no-load operating frequency: ≥ 4000 PPS
- Rated current: 1.5A/phase
- Phase inductance: 3.7 x (1+20%) mH
- Holding torque: ≥420 mN.m
- Phase resistance: 2.4 x (1+15%) Ω/phase
- Positioning torque: 15 mN.m REF
- Electric strength: AC600V/1mA/1S

Application Scenarios:
1. Fine closed-loop 3D printing
2. Optical precision aiming (laser, telescope, camera gimbal, etc.)
3. Speed cycle record player
4. Force feedback/impedance control robot
5. Force feedback of game controller
6. Adjustable mechanical impedance: virtual spring, damper, etc.
7. Electric transmission device between two axes such as CNC machine tool
8. Gravity elimination (for example: offset gravity torque on the robot arm, etc.)
9. Load detection and characterization (used as a balance)
10. Paper towel/TP dispenser
11. Variable load (brake, generator, etc.)
12. Valve control (automatic garden hose, etc.)

Package Included:
- 1 x Set of Stepper Motor Driver Kit

Note: The product is installed and tested by professionals, and you can use it normally when you receive goods.
