STM32 Core Board Core746I for STM32F746IGT6 withFull IO Expander 1024kB Flash 64M Bit SDRAM

STM32 Core Board Core746I for STM32F746IGT6 withFull IO Expander 1024kB Flash 64M Bit SDRAM

More information: Click here

Overview

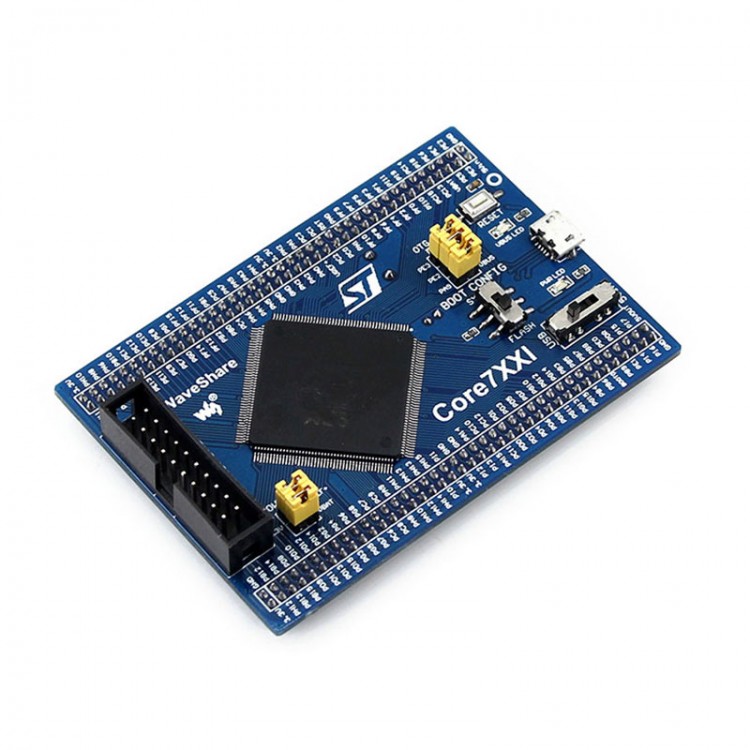

- Core746I is an STM32 MCU core board designed for STM32F746IGT6, supports further expansion. It is ideal for starting application development with STM32F family.
- Minimal ready-to-run system, integrates clock circuit, USB power management, USB connector, etc.
- Onboard 64M Bit SDRAM
- All the I/O ports are accessible on the pin headers
- JTAG/SWD programming/debugging interface

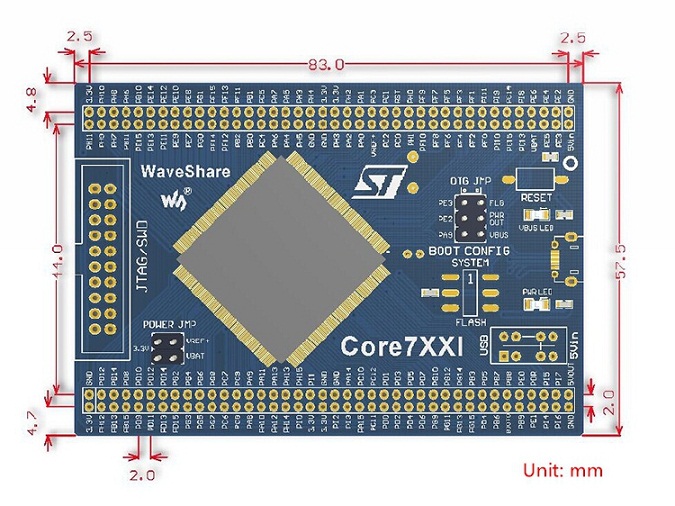

- 2.0mm header pitch, allowed to be plugged-in your application board




1. STM32F746IGT6: the high performance STM32 MCU which features:
- Core: Cortex-M7 32-bit RISC + FPU + Chrom-ART graphic accelerator
- Feature: single-cycle DSP instructions
- Operating Frequency: 216MHz, 462 DMIPS/2.14 DMIPS/MHz
- Operating Voltage: 1.7V-3.6V
- Package: LQFP176
- Memories: 1024kB Flash, 320+16+4kB SRAM
- MCU communication Interfaces:
   6 x SPI, 4 x USART, 4 x UART, 3 x I2S, 4 x I2C
   2 x CAN, 1 x QUAD-SPI, 1 x DCMI, 2 x SAI
   1 x FMC, 1 x SDMMC, 14 x TIM , 1xLPTIM
   1 xLCD-TFT, 1xSPDIFRX, 1xHDMI-CEC
   1 x USB 2.0 OTG FS
   1 x USB 2.0 OTG HS (supports external HS PHY through ULPI)
   1 x 10/100 Ethernet MAC
- AD & DA converters: 3 x AD (12-bit); 2 x DA (12-bit)
- Debugging/Programming: supports JTAG/SWD interfaces, supports IAP
2. IS42S16400J: SDRAM 1 Meg Bits x 16 Bits x 4 Banks (64-MBIT)
3. MIC2075: onboard USB power management device
4. AMS1117-3.3: 3.3V voltage regulator
5. 8M crystal
6. 32.768K crystal, for internal RTC with calibration
7. Reset button
8. VBUS LED
9. Power indicator
10. Power supply switch, powered from 5Vin or USB connection
11. Boot mode selection, for configuring BOOT0 pin
12. JTAG/SWD interface: for debugging/programming
13. USB connector, supports Device and/or Host
14. MCU pins expander, VCC, GND and all the I/O pins are accessible on expansion connectors for further expansion
15. Power jumper
     VBAT: short the jumper to use system power supply, open it to connect external power, such as battery
     VREF: short the jumper to connect VREF+ to VCC, open it to connect VREF+ to other custom pin via jumper wire
16. OTG jumper
     short the jumper when using USB OTG/HOST
     open the jumper to disconnect from related I/O port



PACKAGE CONTENT
- Core746I x 1
- USB type A plug to micro B plug cable x 1
- Software CD x 1
