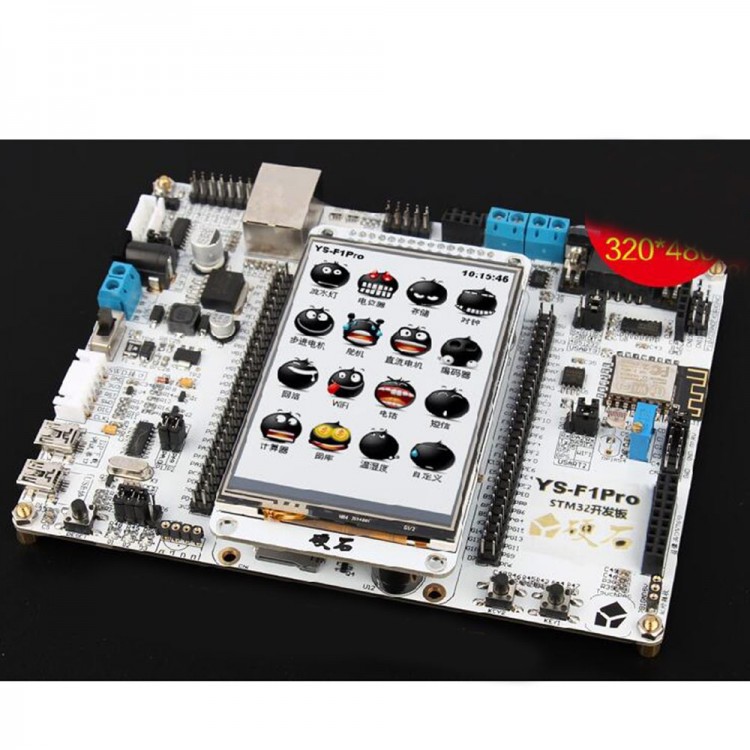

STM32 Development Board ARM Learning Module F103 WIFI Motor Control FOC Internet of things

Availability: In stock, usually dispatched in 1 business day

  • Price:$65.37
  • Price in reward points: 654 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $64.06 $62.76 $60.79 $58.18 Contact US
Quantity:

STM32 Development Board ARM Learning Module F103 WIFI Motor Control FOC Internet of things

More information: Click her

Specification:
- Model: STM32 Development Board F1 pro
- Size: 153.4mm*16.8mm*1.6mm
- PCB: 2 layers
- CPU: STM32F103ZET6,144PIN, 512FLASH,64K RAM
- WIFI: ESP8299, USART interface
- Ethernet: W5500, hardware integrates TCP/IP
- Bluetooth: Can connect external HC05 bluetooth module
- Wireless:Can connect external 2.4G wireless NRF24L01 module
- SRAM: IS62WV51216BLL-55TLI, 1M byte
- FLASH: W25Q128, 16M byte
- EEPROM: AT24C02C, 256 byte
- SD card: Can expand up to 32Gb TF card
- RTC: 1*CR1220 battery mount + battery
- Power input: Support DC12V, DC7-36V, USB 5V Input
- Power output: LDO:AMS1117-3.3, can output 3.3V; LM2596S-5.0, output 5V
- Fuse: 2A
- Buzzer: 1
- Potentiometer: 10K, adjustable
- Key: 1*reset key,2*key,1*capacitor key
- LED: Power LED*1, WIFI communication LED,3*LED
- Seriel: 1CH USB to seriel port(CH340),1CH RS232 DB9 seriel port (SP3232E)
- USB: 1CH USB-device interface, can USB communication
- CAN: 1CH, SP3485E
- Stepper motor output: 4 channels motor drive
- Serco: Reserve a servo control interface
- Encoser speed test: Reserve timer3
- Download: Support JLINK/ULINK2/ST-LINK, seriel ISP download
- Camera: Can connect external 30W OV7670 camera module
- Temperature and humidity: Can connect external dht11, DHT22
- Infare: Can connect external HS0038 infared sensor
- Others:Can connect external relay module,Thermal sensor, MPU-6050
- GPIO: All IO has been led out, can define wiring, SDIO,SPI1/2/3,I2C1/2,ADC123,USART1/2/3/4/5

Package List:
- 1 x STM32 Development Board
- 1 x Net cable
- 1 x USB cable
- 1 x Box
- Dupont cable
