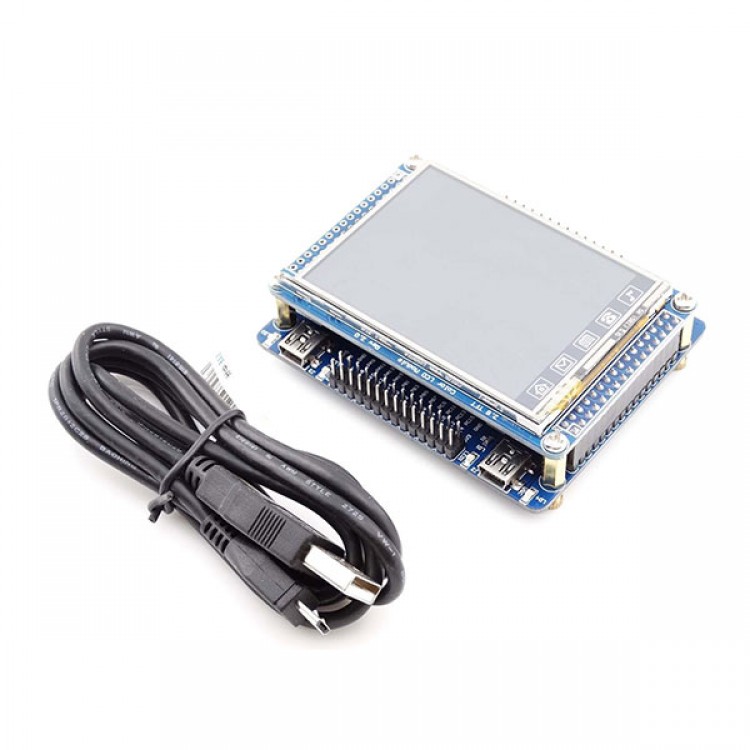

STM32F103RBT6 Development Board with 2.8" TFT LCD Screen module

STM32F103RBT6 Development Board with 2.8" TFT LCD Screen module


Description:
- The ARM Cortex-M3 processor is the latest generation of ARM processors for embedded systems. It has been developed to provide a low-cost platform that meets the needs of MCU implementation, with a reduced pin count and low-power consumption, while delivering outstanding computational performance and an advanced system response to interrupts. The ARM Cortex-M3 32-bit RISC processor features exceptional code-efficiency, delivering the high-performance expected from an ARM core in the memory size usually associated with 8- and 16-bit devices.
   The STM32F103 Performance Line family has an embedded ARM core and is therefore compatible with all ARM tools and software. It combines the high performance ARM Cortex-M3 CPU with an extensive range of peripheral functions and enhanced I/O capabilities. This is low cost development board for the new ST Cortex-M3 based microcontrollers STM32F103RBT6.

Features :
- MCU: STM32F103RBT6 ARM 32 bit CORTEX M3™ with 128K Bytes Program Flash, 20K Bytes RAM, USB, CAN, x2 I2C, x2 ADC 12 bit, x3 UART, x2 SPI, x3 TIMERS, up to 72Mhz operation
- 2.8-inch TFT true color touch screen module, configuration ADS7843 (or RSM1843 instead) controller, support for a SD card (SPI mode) can be used to store pictures, in support of AT45DBxxx of a DATA FLASH (can be used for storage) ;
- USB interface,(USB download),
- standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
- The four users LED lights,a power indicator light, a USB communication indicator, two user keys;
- 8MHz crystal oscillator，32768 Hz crystal and RTC backup battery connector;
- USB power supply;
- All I / O port through the standard pitch leads 2.54mm;
- Board Size: 82mm X 56mm
