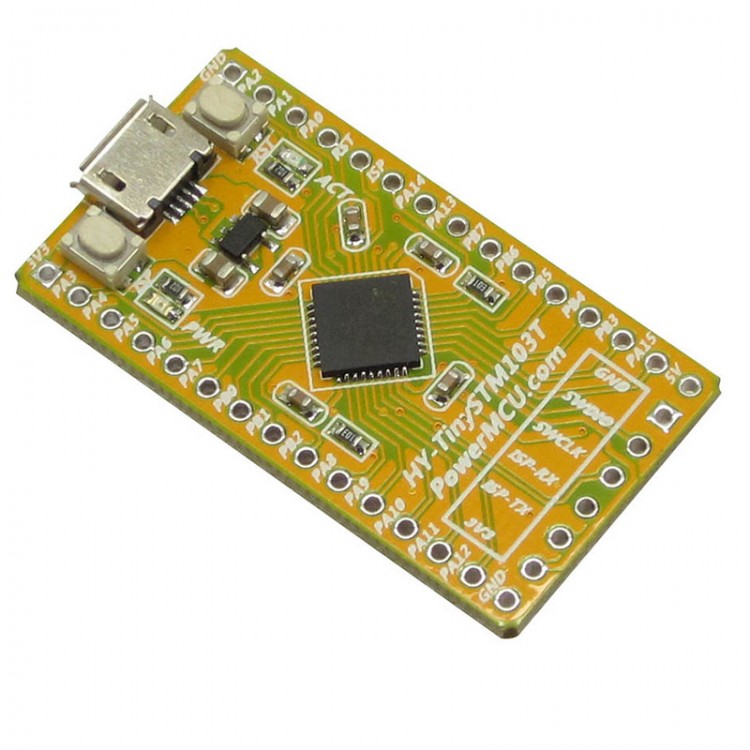

STM32F103TBU6 ARM Development Board Core Board 128KB Flash 20KB RAM
Features:
- STM32F103TB chip, 128KB Flash & 20KB RAM
- 3.3V voltage regulator module, can provide up to 300mA current
- With MicroUSB port, can power system with USB communication
- Reset button,
- Power indicator and function indicator
- Reserve serial ISP download port
- SWD debug port, support JLink, STLink. Note: The printed SWDIO and SWCLK are actually reverse. Please be well-noted.
- Dimension: 31.9*21.3mm
Package included:
- 1* STM32F103TBU6 core board
