STM32F407 Development Board STM32F4 M4 Exceed ARM7 51 430 SCM for Arduino DIY

STM32F407 Development Board STM32F4 M4 Exceed ARM7 51 430 SCM for Arduino DIY

NOTE: Not include LCD screen

Description:
- Double acrylic plate
- All data pin has been led out
- Cover for all keys
- Speaker and SD card slot on the back

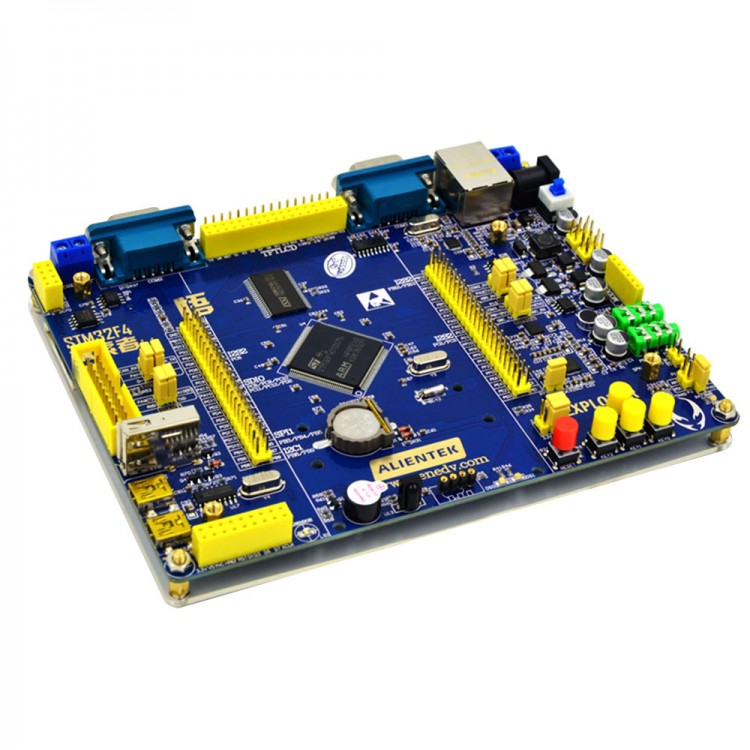

ALIENTEK explorer STM32F4 Development Board :
- CPU: STM32F408ZGT6,LQFP144,FLASH:1024K, SRAM:192K
- Expanding SRAM: IS62WV51216, 1M byte
- Expanding SPIFLASH: W25Q128, 16M  byte
- 1* Power light indicator (blue)
- 2* Status light indicator (DSO: red, DSI:green)
- 1* Infrared receiving head,with a remote controlle
- 1* EEPROM chip,24C02,256bytes
- 1* 6-axis sensor chip,MPU6050
- 1* High performance audio coding and decoding chip,WM8978
- 1* 2.4g wireless module interface,support NRF24L01 wireless module
- 1 channel CAN interface,TJA1050 chip
- 1 channel 485 interface, SP3485 chip
- 2 channels RS232 seriel port interface, SP3232 chip
- 1 channel digital temperature and humidity sensor interface,support DS18B20/DHT11,etc
- 1* ATK module interface, support ALENTEK bluetooth /GPS module
- 1* Photosensitive Sensor
- 1* 2.4/2.8/3.6/4.3/7" LCD interface,support resistor /capacitor touch screen
- 1* Camera module interface
- 1* OLED module interface
- 1* USB seriel port to download  program and code debugging (USMART debugging)
- 1* USB HOST(OT) interface, for USB host communication
- 1* Active buzzer
- 1* RS232/485 selection interface
- 1* RS232 module selection interface
- 1* CAN/USB  selection interface
- 1* SD card interface
- 1* Ethernet interface (RJ45)
- 1* JTAG/SWD download port
- 1* Recoder head (MIC/ Microphone)
- 1 channel stereo audio output interface
- 1 channel Stereo recording input interface
- 1 channel speaker output interface, can connect to 1w speaker
- 1 set of multi-fuctional port (DAC/ADC/PWM DAC/AUDIO IN/TPAD)
- 1 set of 5V power supply/ port
- 1 set of 3.3V power supply/ port
- 1* Reference voltage setting interface
- 1* DC power supply input interface(input voltage range DC6-16V)
- 1* Strat mode setting selection interface
- 1* RTC backup battery block,with battery
- 1* Reset key,for MCU and LCD
- 4* Function key
- 1* Capacitor touch key
- 1* Power supply switch
- Download by one key
- All IO port has been led out except crystal oscillator port

Function with 2.8inch 320*240 LCD (not inlcude LCD):
- Video player,support AVI,MJPEG coding,PCM audio,resolution support maximum 480*272
- Music player.Support WAV,MP3,APE,FLAC format.HIFI,lyrics display,music information display
- Phone function.Need ATK-SIM900A GSM/GPRS module (not include).
- SMS function, Need ATK-SIM900A GSM/GPRS module (not include).
- Recorder function. Support recording/stop/playing. File storage as WAV format in SD card
- Camera function. Support 200W HD camera. Need OV2640 camera module,support BMP and jpg shooting
- APP. gyroscope and infared remote control.
- Network communication test function. Onboard 10/100M adaptive Ethernet interface,IwIP protocal stack,support DHCP,WEB/TCP/UDP,etc testing.
- Notepad function.Support Pinyin input ,handwritting. Storage in SD card/U-disk
- FC game. Support MAP and APU.
- Hand writing brush
- System setting, including date,clock,language,backlight,etc.
- E-Book.Support txt/irc/.c/.h,etc.
- Digital photo frame. Support JPG,BMP,GIF,etc photo
- Clock and caculator. Clock supports pointer/digit clock,display temperature/date/week.
- Wireless e-book transmission. Need 2.4G wireless module adnd 2 sets of ALIENTEK development board. (not included)

Package incluede:
- 1 x Development board
- 1 x CD
- 1 x Power supply
- 1 x Seriel port cable
- 1 x Infared remote controller
- 1 x USB cable
- 1 x Dupont cable
