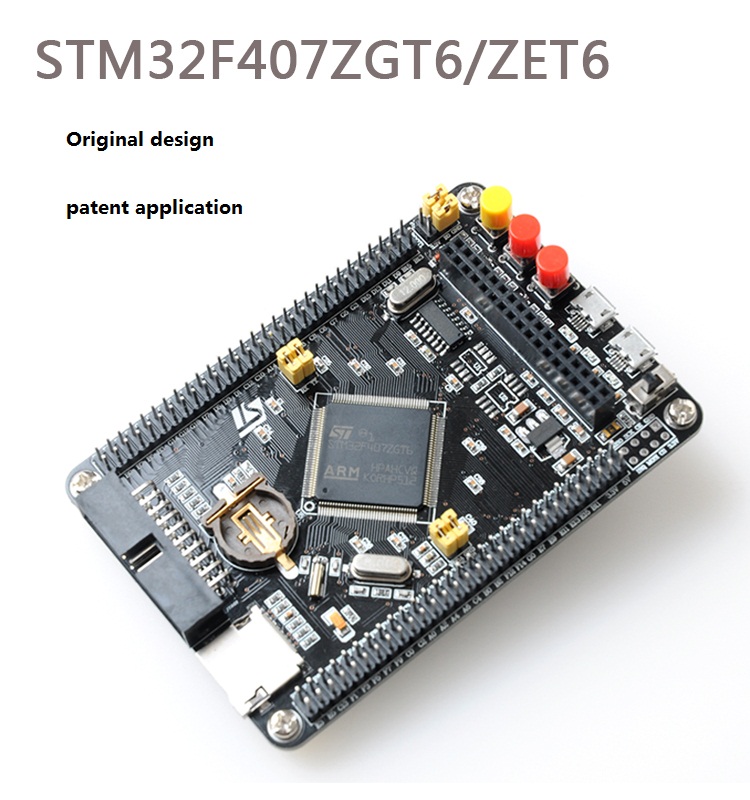

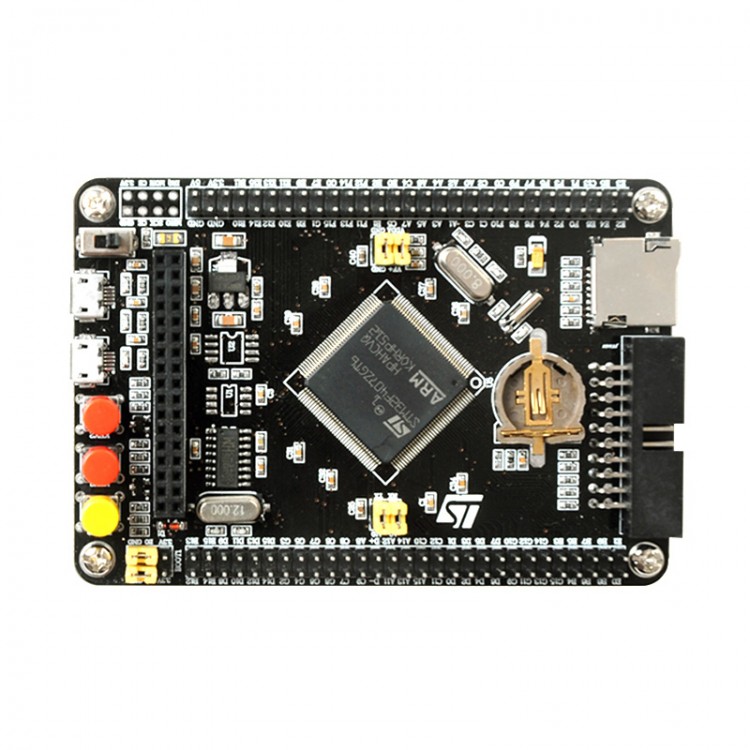

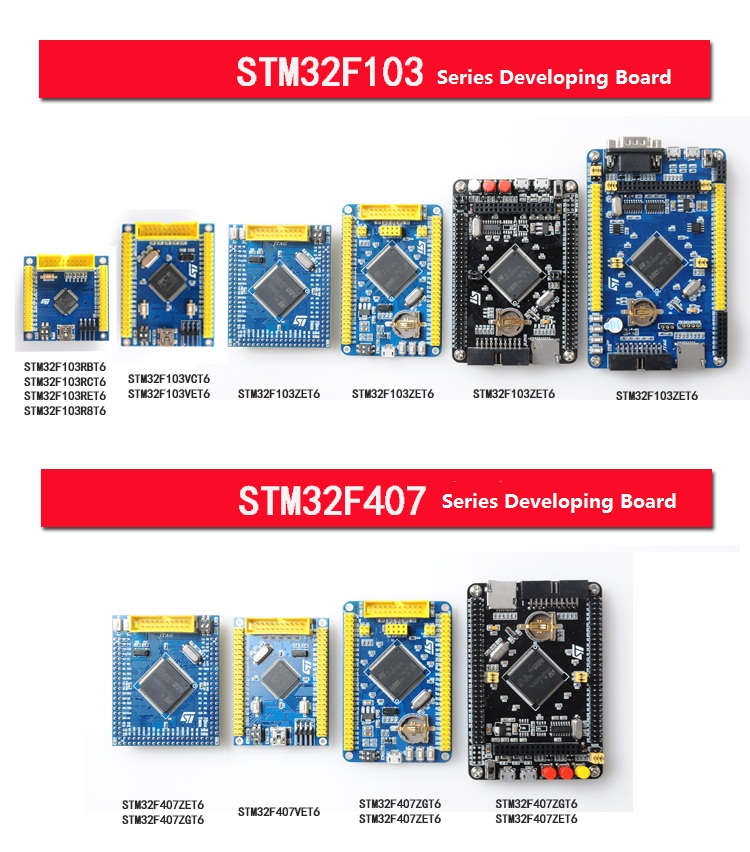

STM32F407ZET6 ZGT6 Development Board STM32 Cortex M4 Minimum System Arm Learning
Product Description:
- The support chip,new original STM32F407ZET6/ZGT6,is the most resource chip for F407 series,including 112 GPIO/1024K FLASH/196K SRAM.

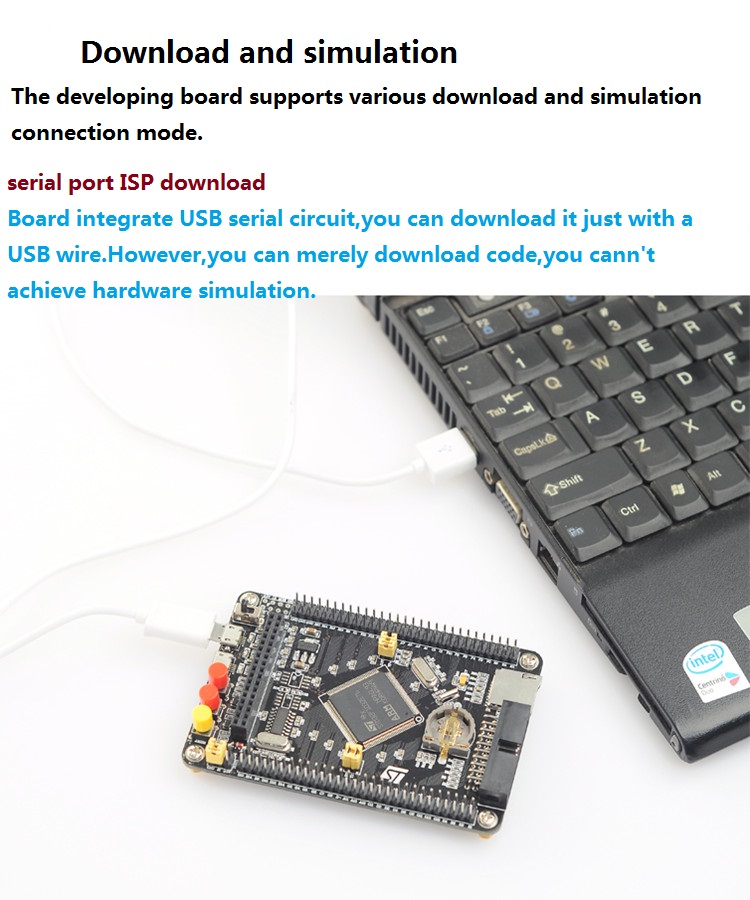

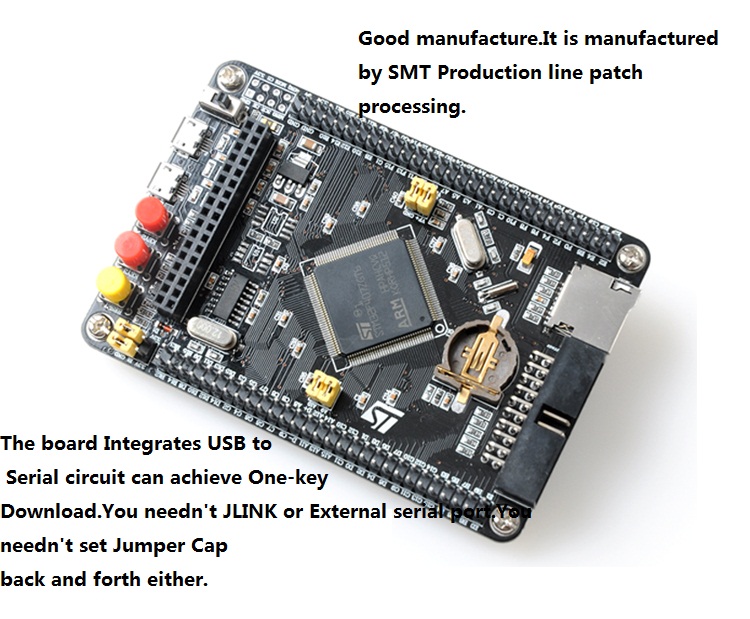

- The board Integrates USB to Serial circuit can achieve One-key Download.You needn't JLINK or External serial port.You needn't set Jumper Cap
back and forth either.
- Integrated SD card SDIO circuit,I2C EEPROM and SPI Flash circuit.You can select AT24C02 and 25Q16 chip.
- Onboard 8M External Crystal oscillator can double frequency to the farthest speed 168M,onboard RTC crystal oscillator.

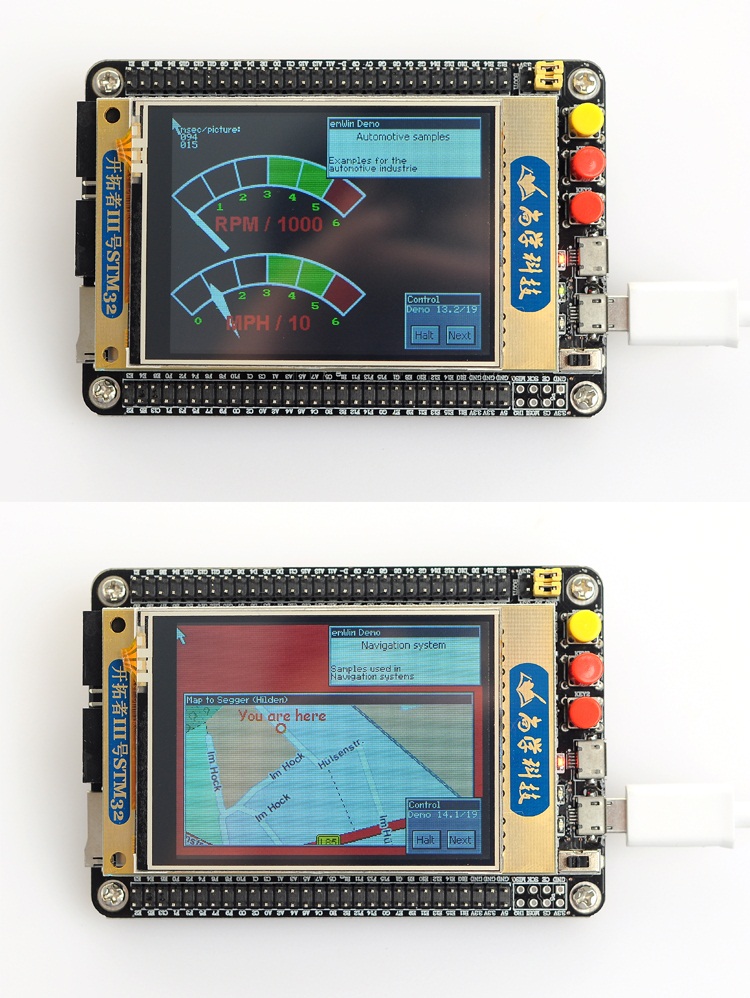

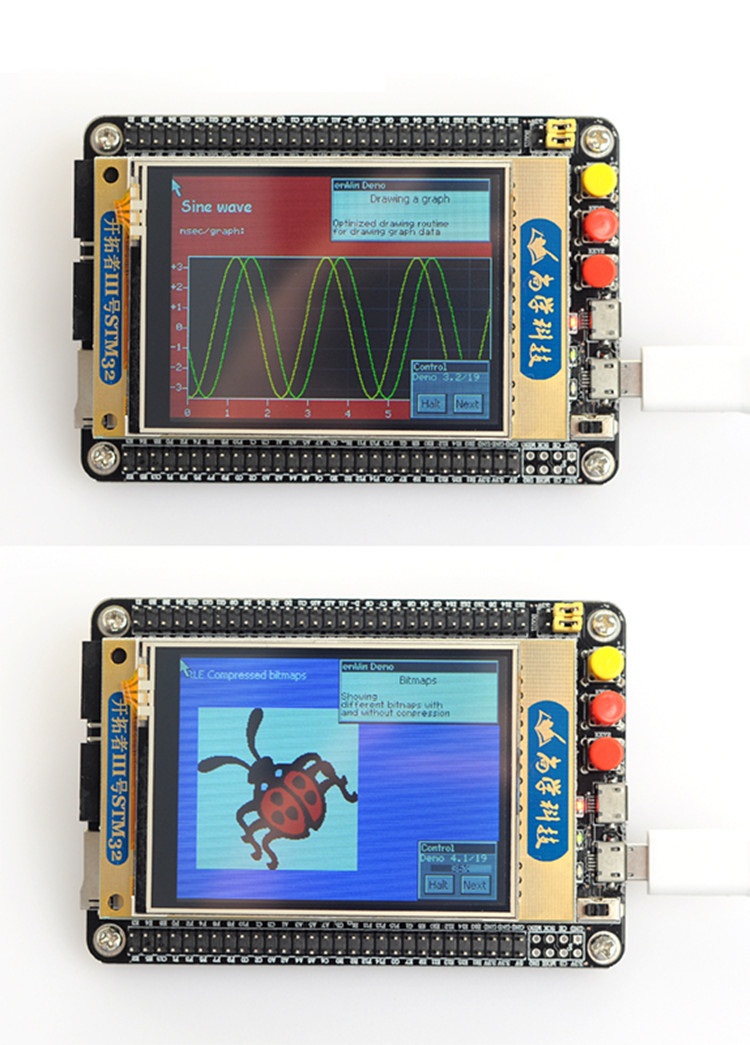

- The developing board reserves colour screen TFT interface,support 3.2 inch,2.8 inch,2.4 inch TFT touch screen.
- The power support USB micro mobile phone date wire charge.

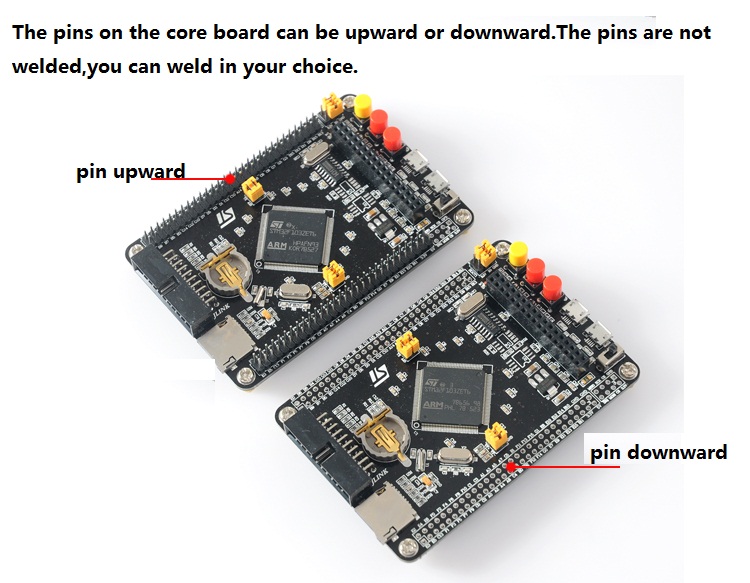

- All the IO lead and mark pin numbers in corresponding position,it can extend circuit freely.

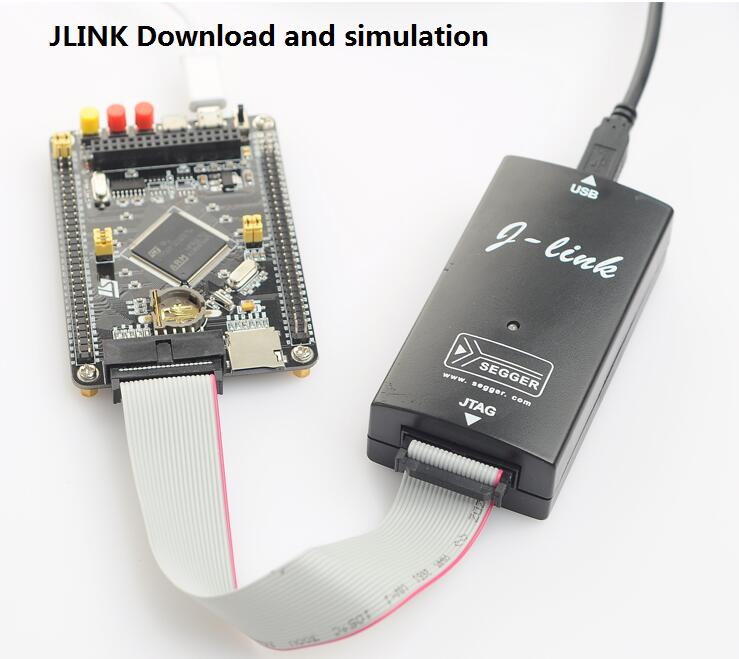

- Onboard standard JTAG interface,support various simulators connection JLINK/STLINK.
- Onboard RTC Button battery holder.After install the battery,it can MCU-RTC Outage maintenance and backups.
- Dispatching the learning material,MDK developing platform,C+ language peripheral routines.
STM32 Core Board Parameters:
- Encapsulation:LQFP144
- CPU frequency:168MHZ
- FLASH:1024KB
- RAM:192+4KB
- Timer:8 pcs
- SPI interface:3 pcs
- IIS interface:2 pcs
- IIC interface:2 pcs
- USART interface:5 pcs
- FSMC interface:1 pcs
- USB interface:1 pcs
- CAN interface:1 pcs
- SDIO interface:1 pcs
- ADC pass:21 pcs
- IO port:112 pcs
Package List:
- 1 x STM32F407ZET6/ZGT6 development board
