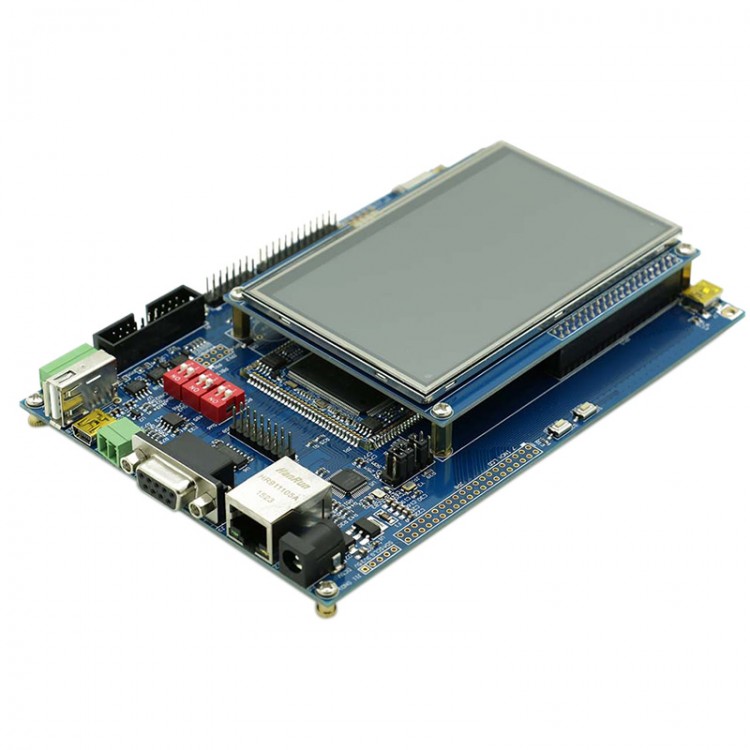

STM32F429BI Development Board + 4.3inch LCD Module with Network USB SD Interface

STM32F429BI Development Board + 4.3inch LCD Module with Network USB SD Interface

Description:
32 bit wide SDRAM, 24bit RGB  can be connected to 4.3 inch, 7 inch, 10.1 inch, 12.1, 15 inch LCD screen, dual OTG USB can be matched with high-speed USB.

Parameters:
Core:
ARM 32-bit Cortex™-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory, frequency up to 180 MHz, MPU, 225 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions

Memories
- Up to 2 MB of Flash memory organized into two banks allowing read-while-write
- Up to 256+4 KB of SRAM including 64-KB of CCM (core coupled memory) data RAM
- Flexible external memory controller with up to 32-bit data bus: SRAM,PSRAM,SDRAM, Compact Flash/NOR/NAND memories

LCD parallel interface
8080/6800 modes

LCD-TFT
controller up to SVGA resolution with dedicated Chrom-ART Accelerator™ for enhanced graphic content creation (DMA2D)

Clock, reset and supply management
- 1.8 V to 3.6 V application supply and I/Os
- POR, PDR, PVD and BOR
- 4-to-26 MHz crystal oscillator
- Internal 16 MHz factory-trimmed RC (1% accuracy)
- 32 kHz oscillator for RTC with calibration
- Internal 32 kHz RC with calibration
•Sleep, Stop and Standby modes
•VBATsupply for RTC, 20×32 bit backup registers + optional 4 KB backup SRAM

3×12-bit, 2.4 MSPS ADC:
- up to 24 channels and 7.2 MSPS in triple interleaved mode
- 2×12-bit D/A converters
- General-purpose DMA:
- 16-stream DMA controller with FIFOs and burst support

Up to 17 timers:
up to twelve 16-bit and two 32-bit timers up to 180 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

Debug mode
- Serial wire debug (SWD)& JTAG interfaces
- Cortex-M4 Embedded Trace Macrocell™

Up to 168 I/O ports with interrupt capability
- Up to 164 fast I/Os up to 90 MHz
- Up to 166 5 V-tolerant I/Os

Up to 21 communication interfaces
- Up to 3 × I2C interfaces (SMBus/PMBus)
- Up to 4 USARTs/4 UARTs (11.25 Mbit/s, ISO7816 interface, LIN, IrDA, modem control)
•Up to 6 SPIs (45 Mbits/s), 2 with muxed full-duplex I2S for audio class accuracy via internal audio PLL or external clock
•1 x SAI (serial audio interface)
•2 × CAN (2.0B Active) and SDIO interface

Advanced connectivity
- USB 2.0 full-speed device/host/OTG controller with on-chip PHY
- USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI
- 10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII
- 8- to 14-bit parallel camera interface up to 54 MBs/s
- Cryptographic acceleration: hardware acceleration for AES 128, 192, 256, Triple DES, HASH (MD5, SHA-1, SHA-2), and HMAC(Only STM32F439)
- True random number generator
- CRC calculation unit
- 96-bit unique ID
- RTC: subsecond accuracy, hardware calendar

Development board hardware configuration:
- Whole board industrial grade device
- 256M Bit SDRAM  (32 bit data width)
- 128MBit SPI NOR Flash
- 1M Bit IIC EEPROM
- Reserved two WSON8 SPI, Flash, NOR (maximum 512M Bit ) or NAND(4G Bit )SPI Flash
- 8 bit wide NAND Flash (Flash SPI can be selected just one).
- 20 pin 2.54 spacing JTAG interface
- 10/100M Ethernet interface (RMII, MII two configuration mode, the physical layer chip is DP83848)
- Two USB2.0 full speed master slave interface
- Two USB2.0 full speed master device interface
- A USB2.0 high speed interface (which requires the addition of a high speed USB physical layer module)
- RS232 interface
- RS485 interface
- Two channels CAN2.0 interface
- Reserved Bluetooth module ELET114A interface
- Reserved Zigbee module ZM5168P0-1 interface
- Reserved Wi-Fi module USR-WIFI232 interface
- Micro SD memory card slot (4-bit SDIO)
- The DCMI interface of 8 bit and 12 bit data width (pin, contains the IIC pin)
- Multipurpose audio interface, can be connected with common RF module (pin empty posts)
- A SPI interface, can be connected with common RF module (pin empty posts)
- 32 bit bus extended interface (address line to A12)
- LCD RGB888 interface
- 1 controllable LED
- A five directions navigation keys
- A button with a wake-up function
- One adjustable resistor
- Reserved 0.33F capacitor location for the RTC supply

Package included:
- 1 x Development Board + 4.3inch LCD Module
